Endothelial nitric oxide synthase deficiency influences normal cell cycle progression and apoptosis in trabecular meshwork cells

Qiong Liao¹, Yan-Ming Huang¹, Wei Fan¹, Chan Li², Hong Yang³

¹Department of Ophthalmology, Xinqiao Hospital of Third Military Medical University, Chongqing 400016, China

²Department of Ophthalmology, the First Affiliated Hospital of Chongqing Medical University of Chongqing Medical University, Chongqing 400016, China

³Department of Ophthalmology, Southwest Hospital, Third Military Medical University, Chongqing 400016, China

Correspondence to: Chan Li. Department of Ophthalmology, the First Affiliated Hospital of Chongqing Medical University, 1 youyi Road, Yuzhong District, Chongqing 400016, China. chanlichch@163.com; Hong Yang. Department of Ophthalmology, Southwest Hospital, Third Military Medical University, No.30 Gaotanyan, Shapingba District, Chongqing 400038, China. hongyangdff@163.com

Received: 2015-08-26 Accepted: 2015-10-27

Abstract

AIM: To clarify how the endothelial nitric oxide synthase (eNOS, NOS3) make effect on outflow facility through the trabecular meshwork (TM).

METHODS: Inhibition of NOS3 gene expression in human TM cells were conducted by three siRNAs. Then the mRNA and protein levels of NOS3 in siRNA-treated and negative control (NC) cells were determined, still were the collagen, type IV, alpha 1 (COL4A1) and fibronectin 1 by real-time PCR and Western blot analysis. In addition, NOS3 concentrations in culture supernatant fluids of TM cells were measured. Cell cycle and cell apoptosis analysis were performed using flow cytometry.

RESULTS: The mRNA level of NOS3 was decreased by three different siRNA interference, similar results were obtained not only of the relative levels of NOS3 protein, but also the expression levels of COL4A1 and fibronectin 1. The number of cells in S phase was decreased, while contrary result was obtained in G2 phase. The number of apoptotic cells in siRNA-treated groups were significant increased compared to the NC samples.

CONCLUSION: Abnormal NOS3 expression can make effects on the proteins levels of extracellular matrix component (e.g. fibronectin 1 and COL4A1). Reduced NOS3 restrains the TM cell cycle progression at the G2/M-phase transition and induced cell apoptosis.

KEYWORDS: endothelial nitric oxide synthase; cell cycle; cell apoptosis; trabecular meshwork

DOI:10.18240/ijo.2016.06.01

Citation: Liao Q, Huang YM, Fan W, Li C, Yang H. Endothelial nitric oxide synthase deficiency influences normal cell cycle progression and apoptosis in trabecular meshwork cells. Int J Ophthalmol 2016;9(6):799-803

INTRODUCTION

Ophthalmic diseases associated with various ocular disorders and multifactorial etiology, glaucoma in particular is one of the leading causes of visual field loss^[1]. If uncontrolled or untreated, the entire vision will be lost eventually^[2]. Glaucoma has became the second leading cause of blindness in the world, second only to cataracts^[3]. In addition, visual field defects are related to driving performance^[4], a higher risk of falling^[5] and fractures^[6].

Previous study suggest that the increased fluid pressure within the eyeball is a well-known risk factor for the development of glaucoma^[7]. Previous studies suggest that trabecular meshwork (TM) could modify intraocular pressure (IOP) by allowing aqueous humour outflow through the drainage angle. Oxidative stress is involved in the pathogenesis of glaucoma via inducing human TM degeneration to lead to an IOP increase^[8]. Despite the abnormal IOP of glaucoma and other ocular diseases, pathological mechanism and the optimal treatment of it is still under exploration.

Nitric oxide (NO) involved in the regulation of IOP and cell apoptosis to lead to retinal ganglion cell loss in glaucoma has certain important roles in the pathogenesis of glaucoma^[9]. Three nitric oxide synthase (NOS) isoforms including neuronal NOS (nNOS, NOS1), endothelial NOS (eNOS, NOS3) and inducible NOS (iNOS, NOS2) are described previously^[10]. Enhanced NO levels facilitate outflow of aqueous humor in the TM to contribute to the normalization of the IOP accompanied by an up-regulation of iNOS gene expression^[11]. Moreover, retinal ganglion cell (RGC) apoptosis is associated with IOP-induced effects on extracellular matrix (ECM). In TM tissue, transforming growth factor (TGF)-β, fibronectin and collagen (e.g. COL4A1), etc., are major stimulators of the production of ECM proteins. The effects of various ECM proteins of TM cells on glaucoma were investigated^[12-13]. However, how NOS involved in the pathomechanism of glaucoma and others in combination with ECM proteins were unclear.

To identify the functional mechanism of NOS in TM cells, endothelial NOS3, which is the major part of NOS^[14] was studied in our current study by RNAi-mediated gene silencing. In addition, correlations between NOS3 expression and COL4A1, as well as fibronectin 1 were evaluated. Moreover, cell cycle arrest and apoptosis in TM cells were observed and examined.

MATERIALS AND METHODS

Cell Culture Human TM cells purchased from Shanghai Laifei Biotech Co., Ltd. (Shanghai, China) were cultured in Dulbecco's modified Eagle's medium (DMEM, supplemented with 10% FBS, 1% penicillin/streptomycin) in a CO₂ incubator (5% CO₂/95% O₂) at 37℃^[15]. Cells were dissociated and seeded onto 6-well (35-mm) plates, for the following day transfection.

siRNA Transfection Three different siRNAs targeting different sequences of NOS3 were designed: fw (forward), 5′-TCAGTGGCTGGTACATGAGC -3′ and rev (reverse), 5′-TATCCAGGTCCATGCAGACA-3′ for siRNA 1; fw, 5′-GAGACUUCCGAAUCUGGAAdTdT-3′ and rev, 5′-UUCCAGAUUCGGAAGUCUCdTdT-3′ for siRNA 2; fw, 5′-CGGUACUACUCAGUCAGCUdTdT-3′ and rev, 5′-AGCUGACUGAGUAGUACCGdTdT-3′ for siRNA 3. Negative control (NC) siRNA were synthesized: fw, 5′-UUCUCCGAACGUGUCACGUdTdT-3′ and rev, 5′-ACGUGACACGUUCGGAGA AdTdT-3′. About 1.5×10⁵ cell/well cells are subcultured in preparation for transfection. On the day of transfection, 10 μL siRNA and 10 μL Lipofectamine 2000 (Life Technologies, NY, USA) were incubated separately in 250 μL opti-MEM (Life Technologies) and mixed. The above mixture was added to each well containing the cells and incubated for 6h at 37℃ in incubator^[16].

Real-time Polymerase Chain Reaction Total RNA of TM cells was extracted with Trizol and subjected to reverse transcription using TakaraEx Taq R-polymerase chain reaction (PCR) kit (Takara Bio Inc., Otsu, Japan) after 48h siRNA treatment. PCR primers used to assay gene expression by RT-PCR were: NOS3-fw, 5′-TCAGTGGCTGGTACATGAGC-3′, and rev, 5′-TATCCAGGTCCATGCAGACA-3′; fibronectin 1-fw, 5′-GAGATGGACAGGAAAGAGATG-3′, and rev, 5′-CGTTTGTAGGGGTTGTGGTAAT-3′; COL4A1-fw, 5′-GCCAGCAAGGTGTTACAGGATT-3′, and rev, 5′-AGAAGGACACTGTGGGTCATCTATT-3′; GAPDH-fw, 5′-TGACTCTACCCACGGCAAGTT-3′, and rev, 5′-TGATGGGTTTCCCGTTGATGA-3′.

Western Blot TM cells after 48h siRNA treatment were harvested and were lysed in RIPA buffer (Beyotime, Beijing, China), and then protein concentrations were determined by bicinchoninic acid assay (BCA protein kit, Sangon Company, China). For Western blots, proteins were separated on an 12% SDS-PAGE gel (each lane 40 μg) and transferred to polyvinylidene fluoride (PVDF) membrane (Millipore, Bedford, MA, USA). Then the membrane was incubated with primary antibodies for NOS3 (1:800), fibronectin 1 (1:1000), COL4A1 (1:1000), and β-actin-HRP (1:1000) (Santa Cruz, CA, USA), separately, and a secondary antibody Goat anti-rabbit IgG (H+L)-HRP (1:5000)/Goat anti-mouse IgG(H+L)-HRP(1:5000) (Jackson Immunoresearch Labs, West Grove, PA). The proteins were visualized by enhanced chemiluminescence (ECL) in accordance with the manufacturer’s instructions.

Measurement of NOS3 Concentration The NOS3 concentrations in culture supernatant fluids of TM cells were measured by an enzyme-linked immunosorbent assay (ELISA) kit (Uscn Life Science Inc., Wuhan, China) according to the manufacturer’s instructions.

Cell Cycle and Cell Apoptosis Analysis Cells after 48h treatment with siRNAs were determined by propidium iodide (PI) staining for cell-cycle analysis using flow cytometry (FCM) (BD Company, USA). Cell were subsequently washed and double stained by FITC-annexin V-PI (BD Company, USA) for cell apoptosis analysis with FCM^[17].

Statistical Analysis All statistical analyses were evaluated using a one-way ANOVA and the SPSS18.0 software package. Statistical difference was considered at P<0.05 and significant statistical difference was considered at P<0.01.

RESULTS

RNA Expression Analysis Quantitation of mRNA by real-time PCR approach was shown in Figure 1. mRNA level of NOS3 (Figure 1A) was decreased in three different siRNA construct-treated samples, especially that of siRNA2 and siRNA3. Moreover, the expression of fibronectin 1 (Figure 1B) and COL4A1 (Figure 1C) were decreased in NOS3-siRNA treated cells compared to the NC group.

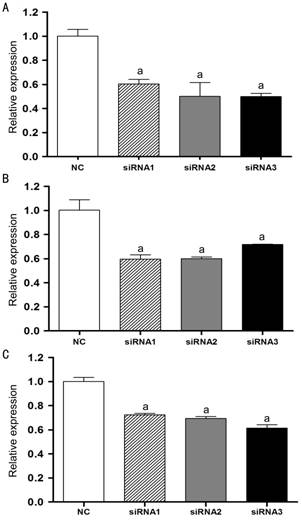

Figure 1 Quantitation of mRNA level of NOS3 (A), fibronectin 1 (B) and COL4A1 (C) by real-time PCR analysis NC: Negative control. *P<0.05.

Protein Expression Analysis NOS3 protein expression in three siRNA-treated groups were lower than in the NC group (Figure 2A), especially that of siRNA2 and siRNA3, which implied that siRNAs was effective at inhibiting the expression of NOS3. In addition, fibronectin 1 and COL4A1 expression levels were lower in the siRNAs-treated cells compared to those in the normal cells (Figure 2 B).

Figure 2 Protein expression level of NOS3 (A), fibronectin 1 (B) and COL4A1 (B) by Western blot analysis after normalization to the β-actin expression NC: Negative control.

Content of NOS3 in Culture Supernatant Comparison of the NOS3 concentration in the culture supernatant among three siRNA-treated groups compared to NC group were shown in Figure 3. There were significant decreases in NOS3 levels in all three siRNA-treated groups than those in the NC group.

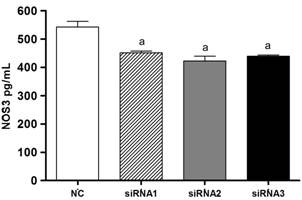

Figure 3 NOS3 concentration in the culture supernatant of siRNA-treated groups and negative control (NC) group NC: Negative control. ^aP<0.05.

Cell Cycle Distribution in Different Groups Cell cycle distribution of cells in four groups were displayed in Figure 4. There were no significant difference of cell population in the G1 phase of the cell cycle. Percentage of cells in S phase of siRNA-treated groups (Figure 4B, 4C and 4D) was decreased compared to the NC group (Figure 4A), which was 15.38%, 15.36%, 17.95% for siRNA 1, 2, 3-treated groups, respectively, and 25.75% for NC group. On the contrary, higher percentages of cells in G2 phase were found than the NC group, which was 28.37%, 28.45%, 24.65% and 16.54% for siRNA 1, 2, 3-treated and NC groups, respectively.

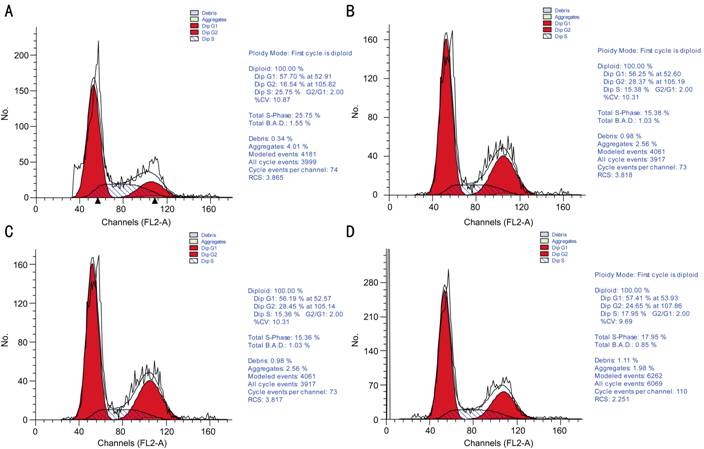

Figure 4 Cell cycle distribution of cells in negative control (NC) (A) and siRNA-treated groups (B, C and D).

Apoptosis in Cells As shown in Figure 5, there is little FITC-annexin V negative and PI-positive cells. The upper right quadrant represents the necrotic cells (FITC-annexin V+/PI+). The lower-right quadrant represents the early apoptotic cells which were PI-negative and FITC-annexin V-positive. According to these results, significant increase in the number of apoptotic cells in siRNA-treated groups (Figure 5B, 5C and 5D) were displayed, which were 8.81%, 6.97% and 11.58% for siRNA 1, 2, and 3 group, respectively, vs 5.28% in the NC group (Figure 5A).

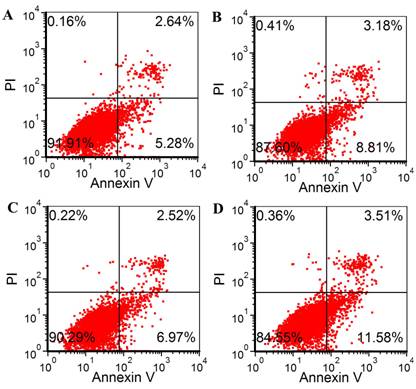

Figure 5 Trabecular meshwork cells in negative control (NC) (A) and siRNA-treated groups (B, C and D) double stained by Annexin V/propidium iodide (PI) and analyzed by flow cytometry.

DISCUSSION

The TM which located in the anterior segment of the eye, forms most of the resistance to aqueous humor outflow and modulates IOP^[18]. ECM and NO that produced by NOS are suggested involved in the IOP regulation and dysregulation^[19]. Potential mechanism behind these effects was revealed in our study.

Lower expression and activity of eNOS in the TM of patients with glaucoma were posed by Fernandez-Durango et al^[20]. In our current study, three NOS3-specific siRNAs could very efficiently inhibit the NOS3 expression at both the mRNA and protein levels. Moreover, low levels of both fibronectin 1 and COL4A1 were discovered consistent with that of NOS3. Previous study suggest that NO-synthesis induced by NOS2 is involved in enhancing fibronectin production by endothelial cells to regulate ECM protein production^[21]. NOS3 associated with NO bioavailibility contributes to the regulation of mobilization and function of endothelial progenitor cells (EPCs) and plays key roles in vascular maintenance and repair^[22]. Very little fibronectin was expressed and accumulated in eNOS deficiency mouse model^[23]. Therefore, the impact that abnormal NOS3 expression on level of fibronectin 1 and COL4A1 may be accomplished by NO which regulates the synthesis of ECM^[24].

RGC apoptosis in glaucoma is significantly linked to IOP-induced and specific ECM proteins changes in the RGC layer, which is a primary site of injury in glaucoma^[12]. In our study, cell cycle distribution and apoptosis of TM cells of different samples were detected and found. It is interesting that, the number of S-phase cells were decreased while the number of cells at the G2 phase were increased, this mined that reduced eNOS resulted in an initial accumulation of S-phase cells in G2 phase, this may be caused by the degradation of ECM components^[25] or the abnormal NO level of TM cells^[26-27]. Deduced eNOS would induced G2/M phase arrest in TM cell proliferation. In addition, TM cell apoptosis appeared to occur at the G2/M transition and eNOS may involve events that occur at the G2/M checkpoint at this stage of cell cycle^[28].

As a consequence, abnormal NOS3 expression could effect the ECM component, especially, fibronectin 1 and COL4A1 concentration in TM cells. Cell cycle were arrested at G2/M phase and cell apoptosis of TM cells were increased. These may be how the endothelial isoform of NOS involved in mediating the outflow facility through the TM.

ACKNOWLEDGEMENTS

We would like to thank Prof Han-Jun Sun and Prof Ti-Rong Yuan (Department of Ophthalmology, Xinqiao Hospital of Third Military Medical University) for their kind help.

Foundation: Supported by Science Fund for Youths (No. 81300763).

Conflicts of Interest: Liao Q, None; Huang YM, None; Fan W, None; Li C, None; Yang H, None.

REFERENCES
1 Casson RJ, Chidlow G, Wood JP, Crowston JG, Goldberg I. Definition of glaucoma: clinical and experimental concepts. <ii>Clin Experiment Ophthalmol</ii> 2012;40(4):341-349. [CrossRef] [PubMed]

2 Porter RS, Kaplan JL, Homeier BP. <ii>The merck manual home health handbook</ii>. Merck & Company; 2009.

3 Vijaya L, George R, Asokan R, Velumuri L, Ramesh SV. Prevalence and causes of low vision and blindness in an urban population: The Chennai Glaucoma Study. <ii>Indian J Ophthalmol </ii> 2014;62(4):477-481. [CrossRef] [PubMed] [PMC free article]

4 Szlyk JP, Mahler CL, Seiple W, Edward DP, Wilensky JT. Driving performance of glaucoma patients correlates with peripheral visual field loss. <ii>J Glaucoma </ii> 2005;14(2):145-150. [CrossRef]

5 Ramulu PY, van Landingham SW, Massof RW, Chan ES, Ferrucci L, Friedman DS. Fear of falling and visual field loss from glaucoma. <ii>Ophthalmology </ii> 2012;119(7):1352-1358. [CrossRef] [PubMed] [PMC free article]

6 Loriaut P, Loriaut P, Boyer P, Massin P, Cochereau I. Visual impairment and hip fractures: a case-control study in elderly patients. <ii>Ophthalmic Res </ii> 2014;52(4):212-216. [CrossRef] [PubMed]

7 Susanna R Jr, Vessani RM, Sakata L, Zacarias LC, Hatanaka M. The relation between intraocular pressure peak in the water drinking test and visual field progression in glaucoma. <ii>Br J Ophthalmol </ii> 2005;89(10):1298-1301. [CrossRef] [PubMed] [PMC free article]

8 Saccà SC, Pascotto A, Camicione P, Capris P, Izzotti A. Oxidative DNA damage in the human trabecular meshwork: clinical correlation in patients with primary open-angle glaucoma. <ii>Arch ophthalmol </ii> 2005;123(4):458-463. [CrossRef] [PubMed]

9 Cavet ME, Vittitow JL, Impagnatiello F, Ongini E, Bastia E. Nitric oxide (NO): an emerging target for the treatment of glaucoma.<ii> Invest Ophthalmol Vis Sci </ii> 2014;55(8):5005-5015. [CrossRef] [PubMed]

10 Ciotu IM, Stoian I, Gaman L, Popescu MV, Atanasiu V. Biochemical changes and treatment in glaucoma. <ii>J Med Life </ii> 2015;8(1):28-31. [PMC free article] [PubMed]

11 Lei Y, Zhang X, Song M, Wu J, Sun X. Aqueous Humor Outflow Physiology in NOS3 Knockout Mice. <ii>Invest Ophthalmol Vis Sci </ii> 2015;56(8):4891-4898. [CrossRef] [PubMed]

12 Guo L, Moss SE, Alexander RA, Ali RR, Fitzke FW, Cordeiro MF. Retinal ganglion cell apoptosis in glaucoma is related to intraocular pressure and iop-induced effects on extracellular matrix. <ii>Invest Ophthalmol Vis Sci </ii> 2005;46(1):175-182. [CrossRef] [PubMed] [PMC free article]

13 Mody AA, Wordinger RJ, Clark AF. BMP4 Induced ID protein protects TM from glaucomatous effects of TGFβ 2. Conference Paper in Investigative Ophthalmology & Visual Science, June 2015.

14 Shimizu S, Ishibashi M, Kumagai S, Wajima T, Hiroi T, Kurihara T, Ishii M, Kiuchi Y. Decreased cardiac mitochondrial tetrahydrobiopterin in a rat model of pressure overload. <ii>Int J Mol Med </ii> 2013;31(3):589-596. [CrossRef]

15 Paylakhi SH, Yazdani S, April C, Fan JB, Moazzeni H, Ronaghi M, Elahi E. Non-housekeeping genes expressed in human trabecular meshwork cell cultures. <ii>Mol Vis </ii> 2012;18:241-254. [PMC free article] [PubMed]

16 Kirkland KA, Bermudez J, Mao W, Clark AF. Effect of lysyl oxidase (lox) and tissue transglutaminase (tgm2) genes on human trabecular meshwork cells. Research Appreciation Day Website MET Layout-RAD 2016.

17 Lim DH, Sohn S, Kim TE, Kee C. Mechanisms underlying trabecular meshwork cell death caused by mutant myocilin expression. <ii>J Korean Ophthalmol Soc </ii> 2011;52(12):1507-1513. [CrossRef]

18 Pattabiraman PP, Inoue T, Rao PV. Elevated intraocular pressure induces Rho GTPase mediated contractile signaling in the trabecular meshwork. <ii>Exp Eye Res </ii> 2015;136:29-33. [CrossRef] [PubMed] [PMC free article]

19 Vranka JA, Kelley MJ, Acott TS, Keller KE. Extracellular matrix in the trabecular meshwork: intraocular pressure regulation and dysregulation in glaucoma. <ii>Exp Eye Res </ii> 2015;133:112-125. [CrossRef] [PubMed] [PMC free article]

20 Fernandez-Durango R, Fernandez-Martinez A, Garcia-Feijoo J, Castillo A, de la Casa JM, Garcia-Bueno B, Perez-Nievas BG, Fernandez-Cruz A, Leza JC. Expression of nitrotyrosine and oxidative consequences in the trabecular meshwork of patients with primary open-angle glaucoma. <ii>Invest Ophthalmol Vis Sci </ii> 2008;49(6):2506-2511. [CrossRef] [PubMed]

21 Tolle LB, Standiford TJ. Danger‐associated molecular patterns (DAMPs) in acute lung injury. <ii>J Pathol </ii> 2013;229(2):145-156. [CrossRef] [PubMed]

22 Thum T, Fraccarollo D, Schultheiss M, Froese S, Galuppo P, Widder JD, Tsikas D, Ertl G, Bauersachs J. Endothelial nitric oxide synthase uncoupling impairs endothelial progenitor cell mobilization and function in diabetes. <ii>Diabetes </ii> 2007;56(3):666-674. [CrossRef] [PubMed]

23 Zhao HJ, Wang S, Cheng H, Zhang MZ, Takahashi T, Fogo AB, Breyer MD, Harris RC. Endothelial nitric oxide synthase deficiency produces accelerated nephropathy in diabetic mice. <ii>J Am Soc Nephrol </ii> 2006;17(10):2664-2669. [CrossRef] [PubMed] [PMC free article]

24 Razny U, Kiec-Wilk B, Polus A, Wator L, Dyduch G, Partyka L, Bodzioch M, Tomaszewska R, Wybranska I. The adipose tissue gene expression in mice with different nitric oxide availability. <ii>J Physiol Pharmacol </ii> 2010;61(5):607-618. [PubMed]

25 Corlu A, Loyer P. Regulation of the G1/S transition in hepatocytes: Involvement of the Cyclin-Dependent Kinase Cdk1 in the DNA replication. <ii>Int J Hepatol </ii> 2012;2012:689324. [CrossRef] [PubMed] [PMC free article]

26 Gao L, Williams JL. Nitric oxide-donating aspirin induces G2/M phase cell cycle arrest in human cancer cells by regulating phase transition proteins. <ii>Int J Oncol </ii> 2012;41(1):325-330. [PMC free article] [PubMed]

27 Lopez-Rivera E, Jayaraman P, Parikh F, Davies MA, Ekmekcioglu S, Izadmehr S, Milton DR, Chipuk JE, Grimm EA, Estrada Y, Aguirre-Ghiso J, Sikora AG. Inducible nitric oxide synthase drives mTOR pathway activation and proliferation of human melanoma by reversible nitrosylation of TSC2. <ii>Cancer Res </ii> 2014;74(4):1067-1078. [CrossRef] [PubMed] [PMC free article]

28 Chao TH, Chang MY, Su SJ, Su SH. Inducible nitric oxide synthase mediates MG132 lethality in leukemic cells through mitochondrial depolarization. <ii>Free Radic Biol Med </ii> 2014;74:175-187. [CrossRef] [PubMed]
