INTRODUCTION
Scleral fixated intraocular lenses (SFIOL) have provided encouraging results for the management of aphakia with
inadequate capsular support[1]. Anterior vitrectomy is usually needed to remove vitreous from the anterior chamber and entry incisions to prevent adhesions which may transmit traction to the retina[2]. For vitreous removal, the cut rate should be set high with low to moderate aspiration to enable vitreous to fl ow continuously into the cutter to reduce traction on the retina[3].Previous anterior vitrectomy machines provided only 800 cuts per minute with a 20-gauge cutter. Newer anterior vitrectomy machines provide faster cutting rates. Theoretically, a faster cutter would have less disturbance of posterior vitreous body providing good stability of the anterior chamber[4].
Shimada et al[5] reported three cases using bimanual anterior vitrectomy with 25-gauge high speed cutter for managing vitreous loss during phacoemulsification, allowing sharp excision of vitreous and reducing vitreous traction during excision. The purpose of our study was to evaluate the outcomes of patients who received anterior vitrectomy with a 23-gauge high speed cutter together with SFIOL implantation.
SUBJECTS AND METHODS
The medical records of patients who underwent anterior vitrectomy with a 23-gauge high speed cutter (2500 cuts per minute) and SFIOL implantation in our university teaching hospital were analyzed retrospectively. The study reviewed the records of patients who underwent surgery from June 2011 to December 2013 with a minimum follow-up of 1y. Institutional ethics approval was not required for this study.
Data including age, sex, pre-existing ocular conditions, indications for surgery, preoperative visual acuity and postoperative best spectacle-corrected visual acuity (BSCVA) and refractive outcome by automated or clinical refraction, surgical history and postoperative complications were collected and analyzed.The operation involved lateral conjunctival pockets and superior peritomy. The center of cornea was marked and SFIOL needle site was marked 2 millimeters behind the limbus and 2 millimeters apart. A superior scleral tunnel wound was prepared without entry. Paracentesis was performed at 2 or 3 o’clock region. Scleral tunnel wound was only opened after the completion of bimanual anterior vitrectomy[6-7]. Bimanual anterior vitrectomy was performed by the INFINITI® Vision System (Alcon Laboratories, Inc. USA) with 2500 cuts per minute by a 23-gauge probe through limbal paracentesis wound.SRK-T formula was used to calculate the power of the lens implant.Alcon CZ70BD (Alcon Laboratories, Fort Worth, Texas, USA)intraocular lens were used for all SFIOL implantations. The ab externo method was used in all cases for placing the scleral passes. The 10-0 polypropylene sutures were used for transscleralfixation of lens haptics, 10-0 nylon was used for wound closure and 8-0 polyglactin sutures were used for conjunctival closure.
Statistical Analysis The Snellen BSCVA was converted into logarithm of the minimum angle of resolution (logMAR)units for statistical analysis. We used a value of 1/400 Snellen(logMAR=2.6) to represent vision of counting fingers and used extrapolated values of 2.7, 2.8, and 2.9 logMAR to represent hand movement, light perception, and no light perception, respectively. The paired t-test was used to analyse of preoperative and postoperative visual acuity. The critical value of significance was set at P＜0.05. Analysis was carried out using SPSS V.19.0 (SPSS, Chicago, Illinois, USA).
RESULTS
For this study, 51 eyes (29 right eyes and 22 left eyes) from 51 patients (23 males and 28 females) were identified. All patients had at least 12mo of follow-up, with a mean of 23±8.2mo and median of 22mo. Average age was 67.2±15y and range was 21 to 91y. The preoperative characteristics and demographic details are summarized in Table 1.
Eighteen (35.3%) eyes had primary SFIOL with anterior vitrectomy. Indications were due to capsular rupture with inadequate capsular support or zonulysis with vitreous loss encountered during extracapuslar cataract extraction in 5 eyes(9.8%), intracapsular cataract extraction in lens subluxation in traumatized eyes or associated with ocular or systemic disease in 7 eyes (13.7%). Less common indications were removal of subluxed intraocular lens in 4 eyes (7.8%), and 2 cases (3.9%)with removal of intraocular lens and penetrating keratoplasty together with anterior vitrectomy and SFIOL due to corneal decompensation after previous anterior chamber intraocular lens implantation. Thirty-three (64.7%) eyes received secondary SFIOL with anterior vitrectomy after being left aphakic after capsular rupture during cataract extraction (n=25, 49.0%) or had a history of previous trauma or open globe injury (n=8,15.7%) with which were left aphakic after primary lens removal.The mean BSCVA was 1.19±0.75 logMAR (range 0.02 to 2.80) units preoperatively and 0.51±0.69 logMAR (range-0.97 to 2.90) units postoperatively. The mean difference betweenfinal postoperative and preoperative visual acuity was 0.68±0.80 logMAR units (95% CI 0.45 to 0.90; P＜0.0001),which was statistically significant. Overall, forty-seven(92.2%) of patients had improved final postoperative visual acuity, two (3.9%) with unchanged postoperative visual acuity, and two (3.9%) had reduced visual acuity compared to preoperative measurement.One eye had postoperative visual loss with deterioration of visual acuity from light perception to no perception of light. This patient had history of traumatic optic neuropathy 20y ago after blunt trauma. Preoperatively the patient had exotropia,relative afferent pupillary defect and a dense cataract subluxed superotemporally with no fundal view. B-scan preoperatively was unremarkable. The patient received intracapsular cataract extraction with primary anterior vitrectomy and SFIOL implantation. Postoperative fundus exam showing pale optic disc, mild vitreous hemorrhage which resolved spontaneously,otherwise unremarkable fundi examination. A possible mechanism in deterioration in visual acuity could be due to undiagnosed postoperative intraocular spikes that could potentially inflict further insult to an already damaged optic nerve. Another eye had postoperative visual loss from 0.70 to 2.70 logMAR units, due to retinal detachment after anterior vitrectomy and secondary SFIOL implantation, which redetached and required a second retinal detachment operation.Two eyes had stable visual acuity, including one eye with chronic angle closure glaucoma (CACG) with end stage disc cupping and history of intracapsular cataract extraction with secondary SFIOL implantation and anterior vitrectomy performed. There was persistent elevation in intraocular pressure (IOP) of over 21 mm Hg requiring escalation of antiglaucomatous eye drops, but did not require further surgical intervention to control the IOP. Visual acuity remained stable and there was no progression on Humphrey visualfield. One eye had pre-existing epiretinal membrane and had stable visual acuity after SFIOL implantation and anterior vitrectomy, and the patient was not keen for further surgical intervention.Postoperative complications are shown on Table 2. The most common complications was vitreous hemorrhage (5.9%)which all spontaneously resolved without sequelae and transient elevation of IOP (5.9%) which were all managed with escalation of eyedrops. There was one case of glaucoma progression which was managed with escalation of eyedrops without requiring glaucoma surgery. There was one case of IOL tilt and one with mild decentration of IOL, but there were no cases of IOL dislocation. Two eyes had peaked pupil postoperatively, one due to iris being chewed intraoperatively which did not affect visual acuity and no further complications were reported and one due to residual vitreous in anterior chamber. There was one eye with refractive surprise and tolerated spectacles. No patients suffered from postoperative choroidal detachment, cystoid macula edema or corneal decompensation.

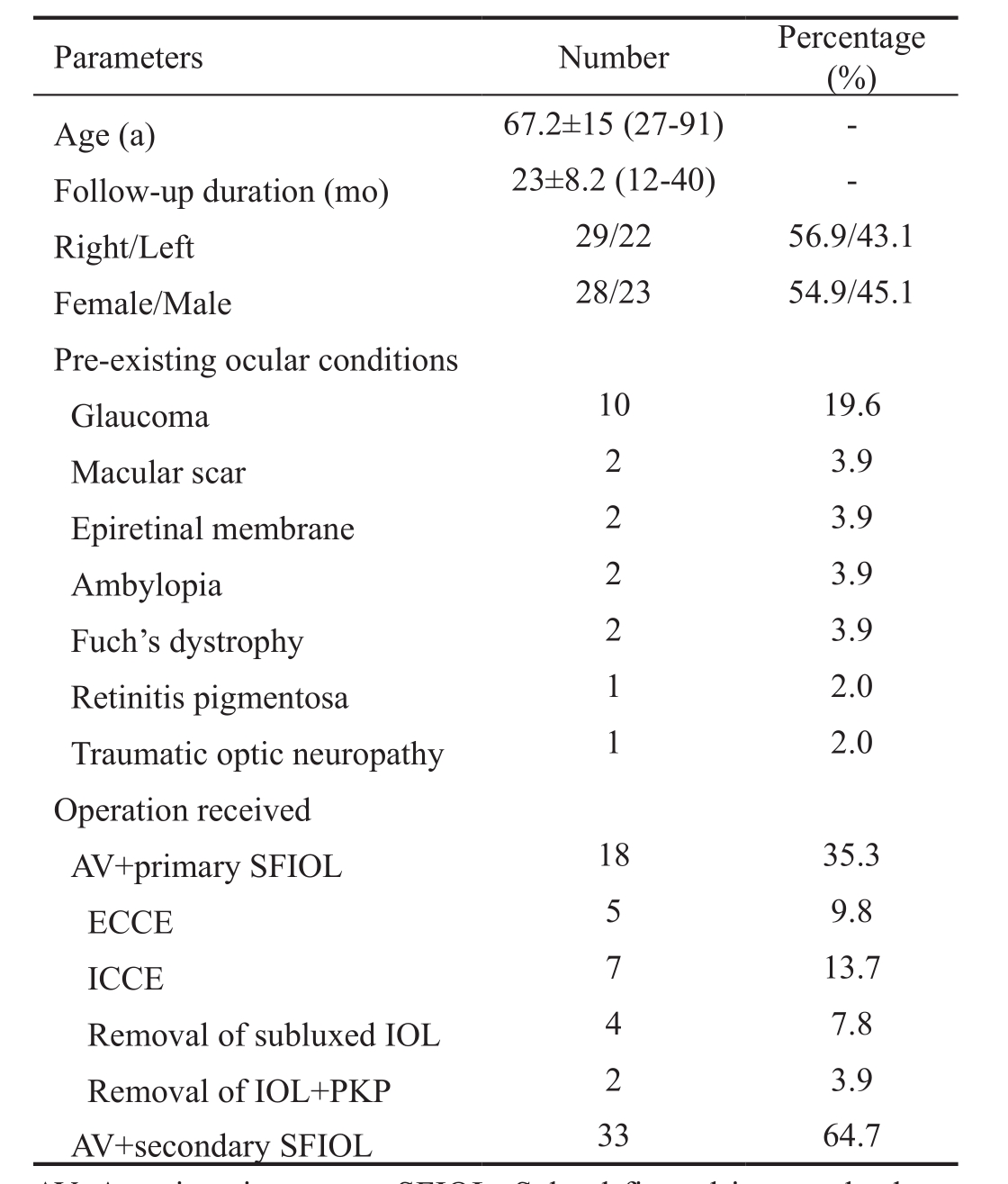

Table 1 Preoperative characteristics x± s (range)
AV: Anterior vitrectomy; SFIOL: Scleral fixated intraocular lens;IOL: Intraocular lens; ECCE: Extracapsular cataract extraction; ICCE:Intracapsular cataract extraction; PKP: Penetrating keratoplasty.
DISCUSSION
The incidence of posterior capsular rupture (PCR) is estimated to be between 0.45% and 7.9%, across different levels of surgical experience[1]. PCR can result in vitreous prolapse into the anterior chamber, which can lead to vitreous traction on the retina leading to retinal tears and detachment or cystoid macula edema. Proper management by anterior vitrectomy can reduce morbidity to the patient. Careful inspection of the anatomy of the capsule and zonules is required to determine the appropriate site for IOL implantation. SFIOL have provided encouraging results for the management of aphakia with inadequate capsular support[1].
In this study, the results of SFIOL with anterior vitrectomy with the faster cutting rate vitrectomy machine have been encouraging. Although our study includes a relatively small sample number, we have a follow up of almost two years and observed relatively low rate of complications regarding to the high speed anterior vitrectomy performed with SFIOL.
There was only one (2.0%) case of retinal detachment in our study which is relatively low compared to previous report rate of 8% in patients who received SFIOL[8]. A low rate of retinal detachment or retinal tears can be achieved due the high speed cutting action during vitreous removal, resulting in less traction during excision[5,9-10]. Another goal during anterior vitrectomy is to maintain as stable IOP as hypotony can result in complications such as suprachoroidal hemorrhage and cystoid macula edema. These complications did not occur in our series, which could be due to the high speed cutter effect that helps maintain a stable IOP. Other complications also occurred at a relatively low rate compared to previous studies on SFIOL. Chan et al[11] reported a vitreous hemorrhage rate of 12.2% and transient IOP rise of 10.8% after secondary SFIOL.Anterior vitrectomy can be performed through an incision at the limbus or pars plana. Some advocate a pars plana approach to minimise anterior chamber manipulation and permit the removal of vitreous well behind the posterior capsule,which is more difficult when the cutter is introduced through the anterior chamber. We generally prefer to introduce the instrument through a limbal incision as it is less invasive than creating additional sclerotomies for pars plana vitrectomy which also avoids the possibility of inducing retinal dialysis and hypotony[5,12-18]. The additional advantages of such small gauge cutter is the better maintanence of IOP during vitrectomy,thus minimise the risk of introoperative hyptotony often encountered in SFIOL situations.

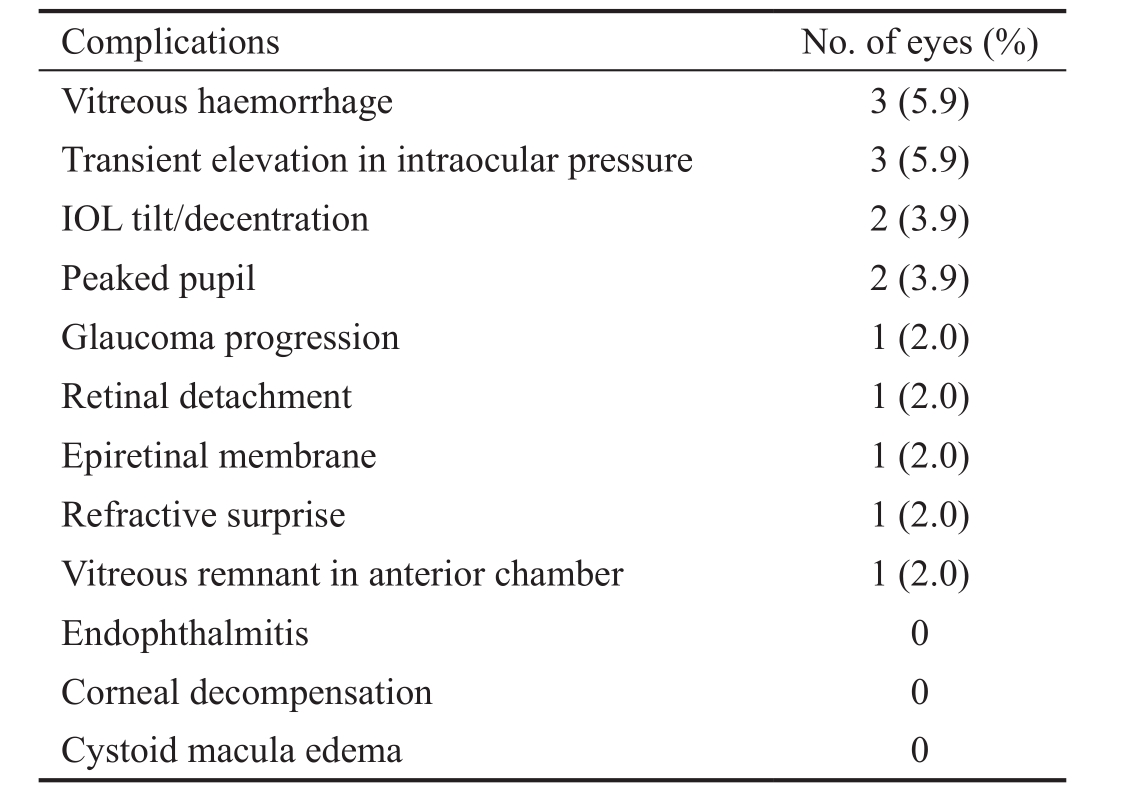

Table 2 Complications of anterior vitrectomy and SFIOL implantation
In this case series the incidence of complications of anterior vitrectomy with SFIOL implantation is low. There have only been limited studies discussing about bimanual anterior vitrectomy using high speed vitrectomy cutter. Shimada et al[5] also discussed about a similar surgical method in a case report using bimanual anterior vitrectomy with 25-gauge high speed cutter. However,only three cases were reported the study without long-term follow-up results.
Limitations of this study are its retrospective and single-centre nature, relative small case numbers, variable preoperative ocular history and time of anterior vitrectomy performed.Further studies will be desirabe on the comparision between high speed and low speed cutters for anterior vitrectomy and their outcomes. Nevertheless, anterior vitrectomy with a high speed cutter for SFIOL implantation for cases complicated by posterior capsular rupture is a safe with low complication rates.
REFERENCES
1 Lewis JS. Ab externo sulcusfixation. Ophthalmic Surg 1991;22(11):692-695.
2 Mishra RK. Anterior vitrectomy. Indian J Ophthalmol 1983;31(3):288-289.
3 Eisner G. Eye Surgery: An Introduction to Operative Technique. Second,Fully Revised, and Expanded Edition. ed. Berlin, Heidelberg: Springer Berlin Heidelberg; 1990.
4 Reeves SW, Kim T. How to perform an anterior vitrectomy. EyeNet Magazine 2016. Available at: https://www.aao.org/eyenet/article/how-toperform-anterior-vitrectomy.
5 Shimada H, Nakashizuka H, Hattori T, Mori R, Mizutani Y, Yuzawa M. Bimanual anterior vitrectomy using a 25-gauge high-speed cutter to manage vitreous loss during phacoemulsification. Int Ophthalmol 2009;29(4):253-255.
6 Young AL, Leung GY, Cheng LL, Lam DS. A modified technique of scleral fixated intraocular lenses for aphakic correction. Eye (Lond)2005;19(1):19-22.
7 Luk AS, Young AL, Cheng LL. Long-term outcome of scleral-fixated intraocular lens implantation. Br J Ophthalmol 2013;97(10):1308-1311.8 Bourke RD, Gray PJ, Rosen PH, Cooling RJ. Retinal detachment complicating scleral-sutured posterior chamber intraocular lens surgery.Eye (Lond) 1996;10(Pt 4):501-508.
9 Ionides A, Minassian D, Tuft S. Visual outcome following posterior capsule rupture during cataract surgery. Br J Ophthalmol 2001;85(2):222-224.
10 Peyman GA, Livir-Rallatos C, Canakis C, Easley J. A new high-speed pneumatic vitrectomy cutter. Am J Ophthalmol 2002;133(4):568-569.
11 Chan TC, Lam JK, Jhanji V, Li EY. Comparison of outcomes of primary anterior chamber versus secondary scleral-fixated intraocular lens implantation in complicated cataract surgeries. Am J Ophthalmol 2015;159(2):221-226.
12 Kanski JJ, Crick MD. Vitrectomy technique in anterior segment surgery. Br J Ophthalmol 1977;61(3):209-215.
13 Ataka S, Yamaguchi M, Kohno T, Shiraki K. A case of persistent hypotony following 23-gauge vitrectomy. Int Ophthalmol 2012;32(2):177-181.
14 Er H. Small-gauge, sutureless pars plana vitrectomy to manage vitreous loss during phacoemulsification. J Cataract Refract Surg 2004;30(11):2252-2253.
15 Chalam KV, Gupta SK, Vinjamaram S, Shah VA. Small-gauge,sutureless pars plana vitrectomy to manage vitreous loss during phacoemulsification. J Cataract Refract Surg 2003;29(8):1482-1486.
16 Huang Y, Xie L. Short-term outcomes of dry pars plana posterior capsulotomy and anterior vitrectomy in paediatric cataract surgery using 25-gauge instruments. Br J Ophthalmol 2010;94(8):1024-1027.
17 Lam DS, Fan DS, Mohamed S, Yu CB, Zhang SB, Chen WQ.25-gauge transconjunctival sutureless vitrectomy system in the surgical management of children with posterior capsular opacification. Clin Exp Ophthalmol 2005;33(5):495-498.
18 Chiu CS. 2013 update on the management of posterior capsular rupture during cataract surgery. Curr Opin Ophthalmol 2014;25(1):26-34.
