Effect of bevacizumab on the expression of fibrosisrelated in flammatory mediators in ARPE-19 cells

INTRODUCTION

In recent years, anti-vascular epithelial growth factor(VEGF) agents have been widely used in the management of choroidal neovascularization, macular edema secondary to diabetic retinopathy (DR), and retinal venous occlusive diseases[1-4]. However, with the increasing use and long-term follow-up, the ocular complica tions of anti-VEGF therapy have become more observed. Ranibizumab has been shown to cause subfoveal fibrosis during thefirst 24mo after treatment in patients with age-related macular degeneration (AMD)[5]. The development or progression of subfoveal fibrosis has also been found after anti-VEGF therapy in the absence of significant subfoveal hemor rhage in neovascular AMD[6]. The post anti-VEGF therapy contraction of the neovascular membrane,which can induce tractional detachment of the retina and cause permanent vision loss, has become one of the most significant clinical problems in retinal neovascular diseases[5,7-11].

Up to now, the mechanism of the fibrosis progression after anti-VEGF therapy has not been fully understood. Previously,our study con firmed that the process may be related with the up-regulation of connective tissue growth factor (CTGF),transforming growth factor-β2 (TGF-β2), basic fibroblast growth factor (bFGF) and matrix metalloproteinase-2 (MMP-2)expression[12]. However, it is not clear whether inflammatory cytokines participate in this process. Anti-VEGF therapy could not only block VEGF, but also change the level of inflammatory mediators[13-14], which generally act as a potent immunomodulator[15]. Accumulated evidence has shown that the up-regulation of inflammatory mediators, such as interleukin (IL)-1β, IL-6, IL-8 and tumor necrosis factor(TNF)-α play a driving role in the process of fibrosis[16-21].In flammation has been indicated as an important event in the pathogenesis of retinal or choroidal diseases[22-25]. Therefore,we hypothesis that anti-VEGF therapy may result in changes of some inflammatory mediators in the fibrotic response. In this preliminary study, we evaluated the effect of bevacizumab on in flammatory mediators that related with fibrosis in human retinal pigment epithelial (RPE) cells under normoxic and hypoxic conditions, hoping to further clarify the mechanism of anti-VEGF agents on fibrosis progression.

MATERIALS AND METHODS

Cell Culture ARPE-19 cells (ATCC, Catalog No. CRL-2302,Rockefeller, MD, USA) were cultured in Dulbecco’s modified Eagle medium/nutrient mixture F12 (DMEM/F12; Invitrogen,Carlsbad, CA, USA) (1:1) containing 10% fetal bovine serum(FBS; Invitrogen), 100 IU/mL penicillin G (Invitrogen),and 100 μg/mL streptomycin (Invitrogen). The cells were incubated at 37℃ in a humidified atmosphere of 5% CO2 and 95% air. The culture medium was changed every 3d. After the cells reached 90% confluence was reached, the cells were routinely passaged by dissociation in 0.05% trypsin/0.02%ethylene diamine tetraacetic acid (EDTA), and then re-plated at a split ratio ranging from 1:3 to 1:4.

Exposure to CoCl2 and Bevacizumab ARPE-19 cells were trypsinized and inoculated into 6-well plates with the complete medium until a confluent monolayer was established. Then the complete medium was replaced with fresh 2% FBS medium.To mimic a pathological condition in which anti-VEGF therapy was used, a hypoxia environment was created by adding CoCl2 (Sigma-Aldrich; 200 μmol/L) to the 2% FBS medium.In group 1, the control group, ARPE-19 cells were kept in 2% FBS medium. In group 2, 0.25 mg/mL bevacizumab(Genentech Inc, San Francisco, CA, USA), roughly equal to the concentration used clinically was added to the 2% FBS medium. In group 3, the hypoxia group, the ARPE-19 cells were treated with 200 μmol/L CoCl2. In group 4, in addition to 200 μmol/L CoCl2, 0.25 mg/mL bevacizumab was mixed in the medium. The cells were collected at 6, 12, 24 and 48h for biochemical assays.

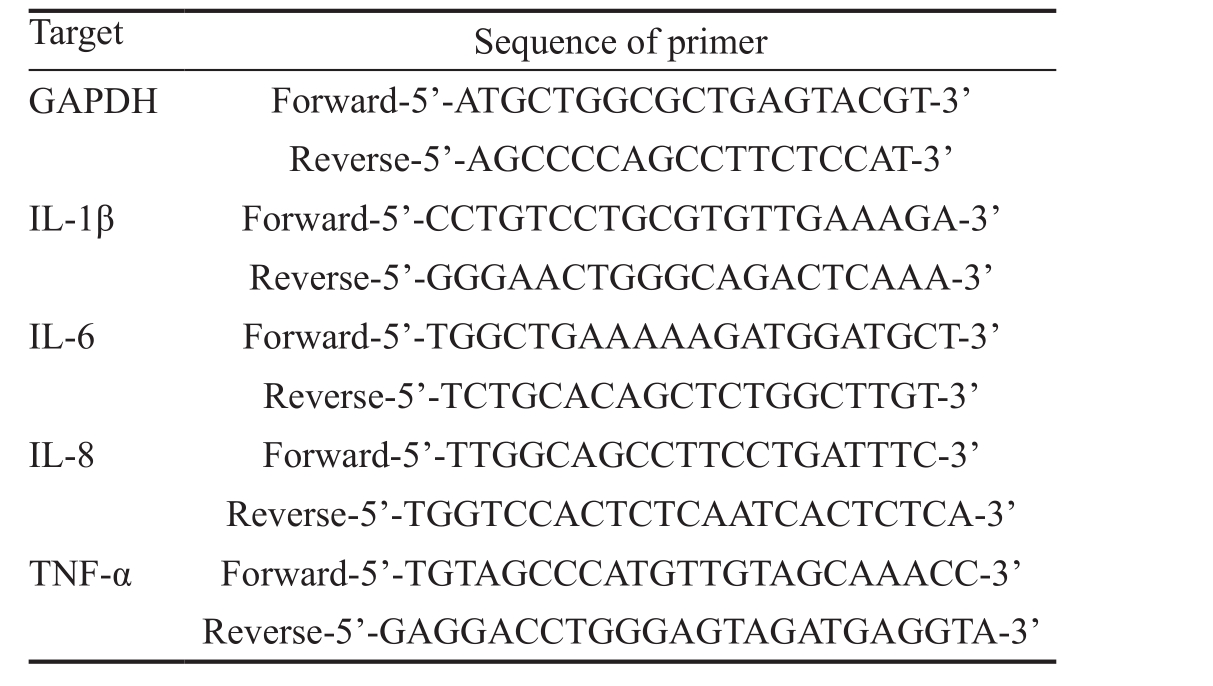

Quantitative Real-time Polymerase Chain Reaction At 6,12, 24 and 48h total RNA was extracted from ARPE-19 cells with Trizol (Invitrogen, Carlsbad, CA, USA), and subsequently reverse transcribed into cDNA using Primescript™ RT reagent kit with gDNA Eraser (TaKaRa, Dalian, China). Real-time polymerase chain reaction (RT-PCR) was performed with ABI 7500 RT-PCR System (Applied Biosystems, Foster City, CA,USA) using SYBR green (Takara, Dalian, China) according to the manufacturer’s instructions. The initial 30s hot-start denaturation step at 95℃ was followed by 40 cycles at 95℃for 5s and at 60℃ for 34s. All expression data were normalized to those for GAPDH. The relative gene expression levels were calculated using the comparative Ct (ΔΔCt) method; the relative expression was calculated as 2-ΔΔCt, and Ct represented the threshold cycle (Table 1).

Enzyme-linked Immunosorbent Assay ARPE-19 cells were plated into 6-well plates and treated as previously described.The supernatants in the four groups were collected from cell cultures and centrifugated at 3500 rpm for 10min. The concentration of IL-1β, IL-6, IL-8 and TNF-α in each group was measured by enzyme-linked immunosorbent assay(ELISA) (R&D Systems, Minneapolis, MN, USA). Each assay was performed according to the manufacturer’s instructions.Optical density was determined at 450 nm using an absorption spectrophotometer within 15min. Concentrations were measured in pg/mL. The standard curves for each cytokine were generated by using the reference cytokine concentrations in the manufacturer’s instructions.

Statistical Analysis The results were expressed as mean±SD.Differences between experimental groups were evaluated by analysis of variance (ANOVA) with LSD t-test. SPSS 17.0 for Windows was used for statistical analysis. Two-tailed test results were considered significant at P＜0.05.

RESULTS

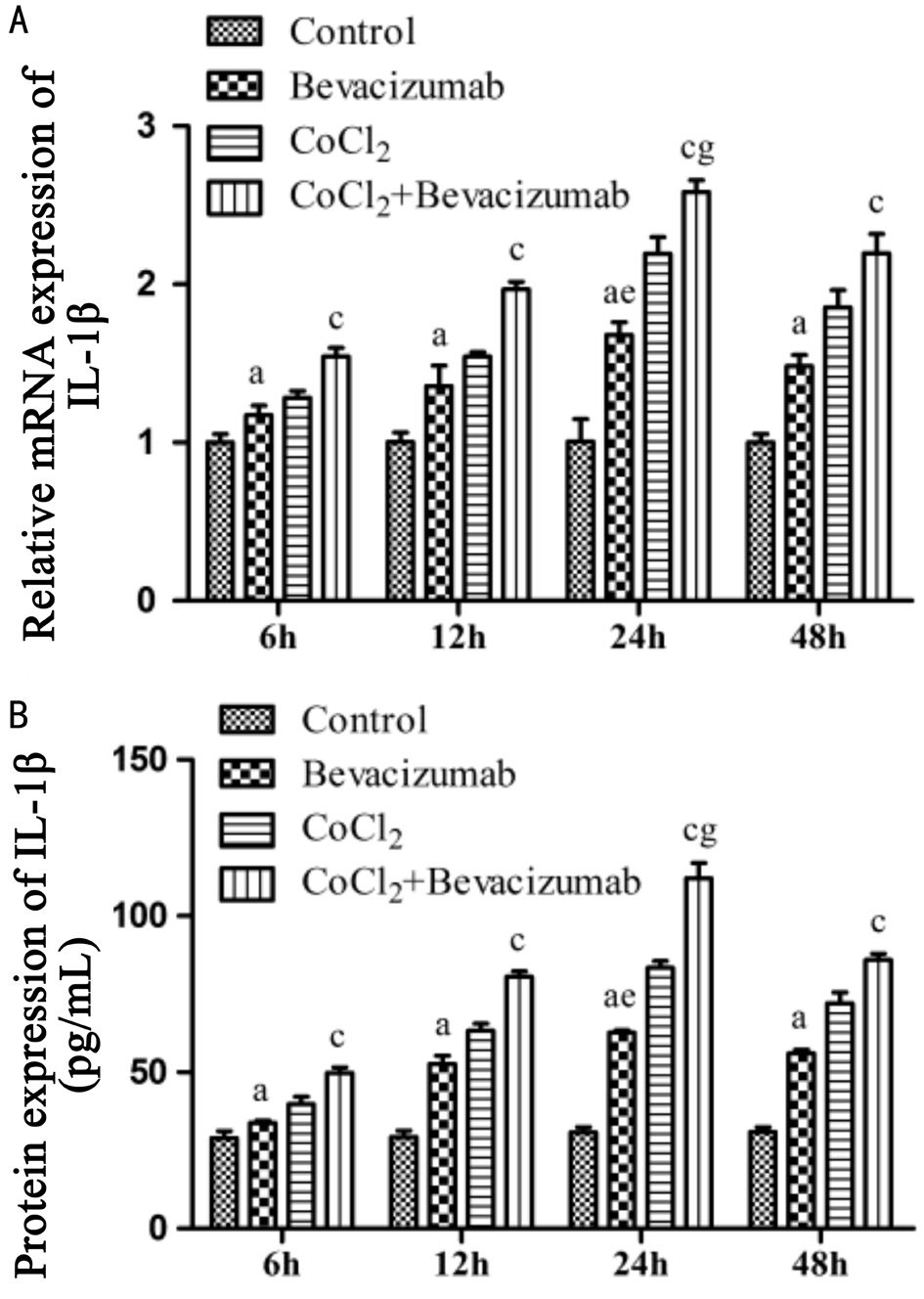

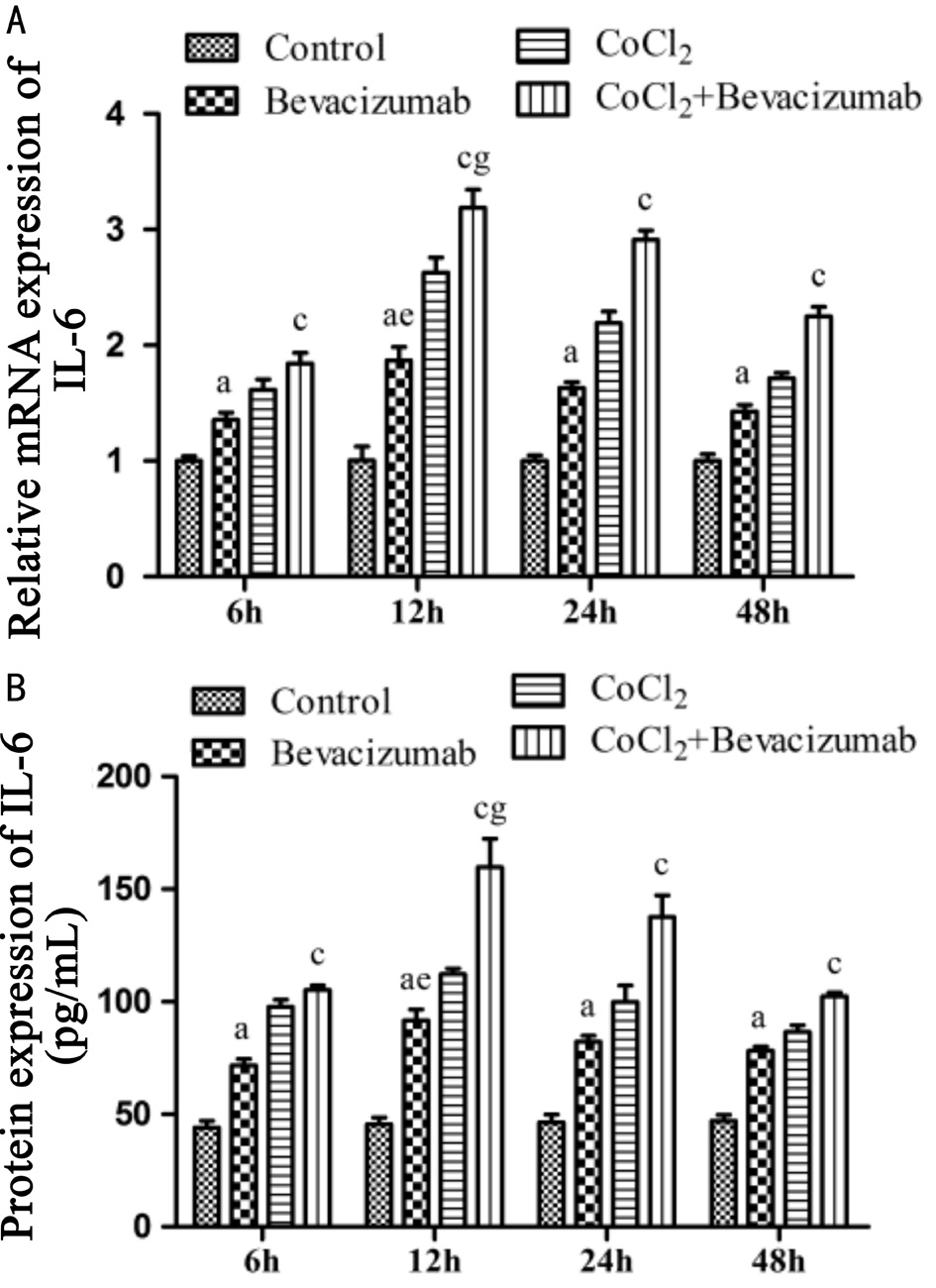

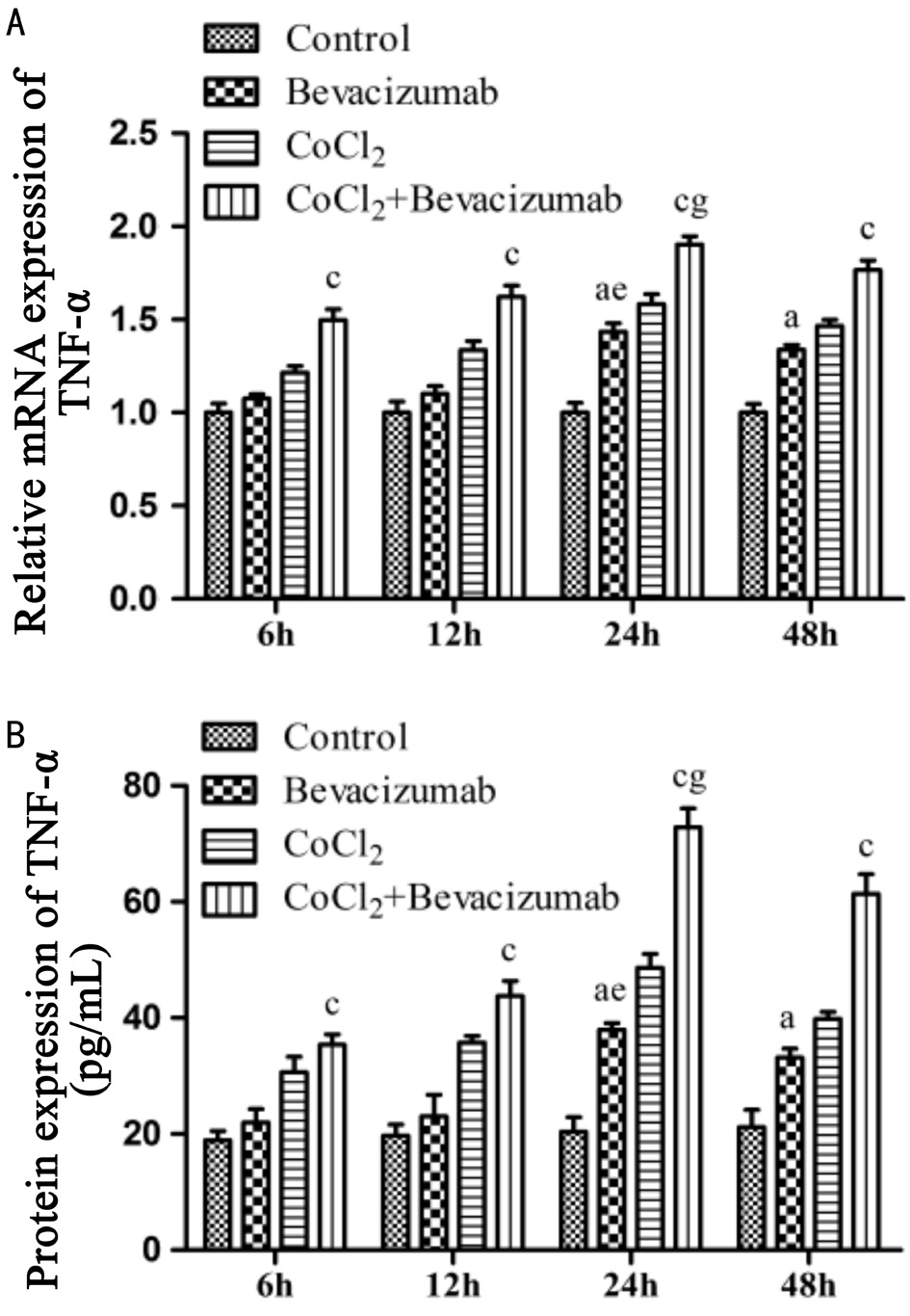

Detection of IL-1β, IL-6, IL-8, and TNF-α mRNA Expression by Real-time Polymerase Chain Reaction By RT-PCR, the expressions of IL-1β, IL-6 and IL-8 in group 2 were found to be significantly higher than in group 1 at 6, 12, 24 and 48h,while TNF-α was significantly higher at 24 and 48h (P＜0.05).Significant differences were also found between groups 3 and 4. Bevacizumab significantly increased the secretion of IL-1β,IL-6, IL-8 and TNF-α under hypoxic conditions (P＜0.05)(Figures 1A-4A). Both under normoxic and hypoxic conditions, IL-1β, IL-8 and TNF-α increased obviously at 24h than other time points, and IL-6 increased obviously at 12h compared with other time points after the treatment of bevacizumab (P ＜0.05) (Figures 1A-4A).

Protein Expressions of IL-1β, IL-6, IL-8, and TNF-α By ELISA, the protein expressions of IL-1β, IL-6 and IL-8 in group 2 were found to be significantly higher than in group 1at 6, 12, 24 and 48h and TNF-α was statistically significantly higher at 24 and 48h (P＜0.05). IL-1β, IL-6, IL-8 and TNF-α secretion were significantly higher after bevacizumab and CoCl2 treatment (group 4) than after CoCl2 treatment alone(group 3) (P＜0.05) (Figures 1B-4B). IL-1β, IL-8 and TNF-α increased obviously and reached a peak at 24h and IL-6 peaked at 12h after the treatment of bevacizumab under normoxic and hypoxic conditions. There were significant differences in the level of inflammatory mediators between the peak time and other time points in the groups related to bevacizumab (P＜0.05)(Figures 1B-4B).

DISCUSSION

Inflammation involves in the pathogenesis of many retinal or choroidal diseases, such as proliferative vitreoretinopathy(PVR), proliferative diabetic retinopathy (PDR), and neovascular AMD[26-32]. The post-bevacizumab fibrotic phenomenon has been observed in retinal and choroidal neovascular diseases[5,8,33-36]. However, the mechanisms underlying the transition from angiogenesis to fibrosis have not been fully elucidated. In order to further evaluate the mechanisms underlying the angiofibrotic switch, we investigated the effect of bevacizumab on the expressions of proin flammatory mediators related to fibrosis at the cellular level. The results showed that bevacizumab can up-regulate the expressions of IL-1β, IL-6, IL-8 and TNF-α in ARPE-19 cells under both normoxic and hypoxic conditions.

IL-1β is a major proinflammatory cytokine that plays an important role in acute and chronic in flammatory diseases[37].A number of studies have shown that IL-1β is related to neovascular fibrosis. It is likely that IL-1β initiates the endothelial to mesenchymal transformation and can induce the epiretinal membrane formation in eyes[18,38]. Moreover, an in vitro model of retinal membrane contraction, as occurs in PVR, is modulated by IL-1β[39]. In our study, the expression of IL-1β was up-regulated after bevacizumab treatment under normoxic and hypoxic conditions, suggesting that IL-1β may participate in the process of fibrosis and that bevacizumab may play a driving role in the process.

It has been reported that the concentration of IL-6 correlates well with that of IL-8[40-41]. Intravitreal injection of bevacizumab (IVB) can induce elevations of intraocular IL-6 immediately and subsequent up-regulation of IL-8 and TGF-β2[40]. IL-6 and IL-8 levels are also evaluated in this study.The two kinds of inflammatory mediators were significantly higher after bevacizumab treatment, which is consistent with the results of previous studies. It may be postulated that IVB aggravates IL-6 and IL-8, and so mediates more in flammatory changes and the formation and contraction of fibrovascular tissue and alters the intraocular environment leading to complications.

TNF-α, a proinflammatory cytokine, generally acts as a potent immunomodulator and plays an important role in neovascularization and fibroplasia[15]. It may alter the attachment and migration of RPE cells to favor provisional extracellular matrix-molecules through changes in integrin expression.TNF-α is also a major regulator of RPE activation responses,including cell attachment, spreading, chemotaxis, and migration[20]. In the current in vitro experimental study, results showed that treatment of ARPE-19 cells with bevacizumab at clinical doses significantly increased the secretion of TNF-α under hypoxic conditions. However, under normoxic conditions, TNF-α levels were only significantly higher at 24 and 48h after bevacizumab treatment. These results show that the effects of bevacizumab on different in flammatory factors and even on the same factor under normoxic and hypoxic conditions may be different.

Neovascular diseases, such as PDR and AMD, are associated with hypoxia, and fibrosis is the inevitable outcome of neovascularization. Until now, the mechanism of thefibrosis progression after anti-VEGF therapy has not been fully understood. In our research, both bevacizumab and hypoxia can promote the expression of fibrosis related inflammatory factors. The effects of hypoxia on fibrosis related in flammatory factors were more obvious than those of bevacizumab.Hypoxia and bevacizumab have synergistic effects on the promotion of fibrosis related inflammatory factors. This indicates that bevacizumab may accelerate the original course of fibrosis. However, the levels of proinflammatory mediators showed a transient increase with different peak times. The impacts of bevacizumab on in flammatory mediators did not last long. It was here deduced that the increased proinflammatory mediators may participate in the process of fibrosis.In summary, the effect of bevacizumab on the expressions of inflammatory mediators related to fibrosis in ARPE-19 cells under normoxic and hypoxic conditions was investigated for the first time in this study. The up-regulation of IL-1β, IL-6,IL-8 and TNF-α in ARPE-19 cells after bevacizumab treatment at clinical doses may be one of the mechanisms underlying fibrosis. And bevacizumab may accelerate the original course of fibrosis. The development of anti- fibrotic agents may allow a broader range of patients to benefit from pharmacologic treatment of neovascular diseases.

ACKNOWLEDGEMENTS

We are grateful for the persons who participated in this research.

Foundation: Supported by Shandong Provincial Natural Science Foundation, China (No.ZR2014HM029).

Conflicts of Interest: Chu SJ, None; Zhang ZH, None;Wang M, None; Xu HF, None.

REFERENCES

1 Biswas P, Sengupta S, Choudhary R, Home S, Paul A, Sinha S.Comparative role of intravitreal ranibizumab versus bevacizumab in choroidal neovascular membrane in age-related macular degeneration.Indian J Ophthalmol 2011;59(3):191-196.

2 Chakravarthy U, Harding SP, Rogers CA, Downes SM, Lotery AJ, Culliford LA, Reeves BC; IVAN study investigators. Alternative treatments to inhibit VEGF in age-related choroidal neovascularisation:2-year findings of the IVAN randomised controlled trial. Lancet 2013;382(9900):1258-1267.

3 Funk M, Schmidinger G, Maar N, Bolz M, Benesch T, Zlabinger GJ,Schmidt-Erfurth UM. Angiogenic and inflammatory markers in the intraocular fluid of eyes with diabetic macular edema and influence of therapy with bevacizumab. Retina 2010;30(9):1412-1419.

4 Funk M, Kriechbaum K, Prager F, Benesch T, Georgopoulos M,Zlabinger GJ, Schmidt-Erfurth U. Intraocular concentrations of growth factors and cytokines in retinal vein occlusion and the effect of therapy with bevacizumab. Invest Ophthalmol Vis Sci 2009;50(3):1025-1032.

5 Bloch SB, Lund-Andersen H, Sander B, Larsen M. Subfoveal fibrosis in eyes with neovascular age-related macular degeneration treated with intravitreal ranibizumab. Am J Ophthalmol 2013;156(1):116-124.e1.

6 Hwang JC, Del Priore LV, Freund KB, Chang S, Iranmanesh R. Development of subretinal fibrosis after anti-VEGF treatment in neovascular age-related macular degeneration. Ophthalmic Surg Lasers Imaging 2011;42(1):6-11.

7 Batman C, Ozdamar Y. The relation between bevacizumab injection and the formation of subretinal fibrosis in diabetic patients with panretinal photocoagulation. Ophthalmic Surg Lasers Imaging 2010;41(2):190-195.

8 Van Geest RJ, Lesnik-Oberstein SY, Tan HS, Mura M, Goldschmeding R, Van Noorden CJ, Klaassen I, Schlingemann RO. A shift in the balance of vascular endothelial growth factor and connective tissue growth factor by bevacizumab causes the angio fibrotic switch in proliferative diabetic retinopathy. Br J Ophthalmol 2012;96(4): 587-590.

9 Jonas JB, Schmidbauer M, Rensch F. Progression of tractional retinal detachment following intravitreal bevacizumab. Acta Ophthalmol 2009;87(5):571-572.

10 Arevalo JF, Maia M, Flynn HW Jr, Saravia M, Avery RL, Wu L, Eid Farah M, Pieramici DJ, Berrocal MH, Sanchez JG. Tractional retinal detachment following intravitreal bevacizumab (Avastin) in patients with severe proliferative diabetic retinopathy. Br J Ophthalmol 2008;92(2):213-216.

11 Krishnan R, Goverdhan S, Lochhead J. Intravitreal pegaptanib in severe proliferative diabetic retinopathy leading to the progression of tractional retinal detachment. Eye (Lond) 2009;23(5):1238-1239.

12 Zhang M, Chu S, Zeng F, Xu H. Bevacizumab modulates the process of fibrosis in vitro. Clin Exp Ophthalmol 2015;43(2):173-179.

13 Suzuki Y, Suzuki K, Yokoi Y, Miyagawa Y, Metoki T, Nakazawa M. Effects of intravitreal injection of bevacizumab on inflammatory cytokines in the vitreous with proliferative diabetic retinopathy. Retina 2014;34(1):165-171.

14 Arimura N, Otsuka H, Yamakiri K, Sonoda Y, Nakao S, Noda Y,Hashiguchi T, Maruyama I, Sakamoto T. Vitreous mediators after intravitreal bevacizumab or triamcinolone acetonide in eyes with proliferative diabetic retinopathy. Ophthalmology 2009;116(5):921-926.

15 Camussi G, Albano E, Tetta C, Bussolino F. The molecular action of tumor necrosis factor-alpha. Eur J Biochem 1991;202(1):3-14.

16 Sasaki M, Kashima M, Ito T, Watanabe A, Izumiyama N, Sano M, Kagaya M, Shioya T, Miura M. Differential regulation of metalloproteinase production, proliferation and chemotaxis of human lung fibroblasts by PDGF, interleukin-1beta and TNF-alpha. Mediators Inflamm 2000;9(3-4):155-160.

17 Lho YM, Ha E, Cho CH, Song KS, Min BW, Bae KC, Lee KJ, Hwang I, Park HB. In flammatory cytokines are overexpressed in the subacromial bursa of frozen shoulder. J Shoulder Elbow Surg 2013;22(5):666-672.

18 Lee JG, Ko MK, Kay EP. Endothelial mesenchymal transformation mediated by IL-1beta-induced FGF-2 in corneal endothelial cells. Exp Eye Res 2012;95(1):35-39.

19 Kauffmann DJ, van Meurs JC, Mertens DA, Peperkamp E, Master C,Gerritsen ME. Cytokines in vitreous humor: interleukin-6 is elevated in proliferative vitreoretinopathy. Invest Ophthalmol Vis Sci 1994;35(3):900-906.

20 Jin M, He S, Wörpel V, Ryan SJ, Hinton DR. Promotion of adhesion and migration of RPE cells to provisional extracellular matrices by TNF-alpha. Invest Ophthalmol Vis Sci 2000;41(13):4324-4332.

21 Ouyang X, Ghani A, Mehal WZ. Inflammasome biology in fibrogenesis. Biochim Biophys Acta 2013;1832(7):979-988.

22 Joussen AM, Murata T, Tsujikawa A, Kirchhof B, Bursell SE, Adamis AP. Leukocyte-mediated endothelial cell injury and death in the diabetic retina. Am J Pathol 2001;158(1):147-152.

23 Mohr S. Potential new strategies to prevent the development of diabetic retinopathy. Expert Opin Investig Drugs 2004;13(3):189-198.

24 Donoso LA, Kim D, Frost A, Callahan A, Hageman G. The role of inflammation in the pathogenesis of age-related macular degeneration.Surv Ophthalmol 2006;51(2):137-152.

25 Hollyfield JG, Bonilha VL, Rayborn ME, Yang X, Shadrach KG,Lu L, Ufret RL, Salomon RG, Perez VL. Oxidative damage-induced inflammation initiates age-related macular degeneration. Nat Med 2008;14(2):194-198.

26 Pennock S, Haddock LJ, Eliott D, Mukai S, Kazlauskas A. Is neutralizing vitreal growth factors a viable strategy to prevent proliferative vitreoretinopathy? Prog Retin Eye Res 2014;40:16-34.

27 Pastor JC, Rojas J, Pastor-Idoate S, Di Lauro S, Gonzalez-Buendia L, Delgado-Tirado S. Proliferative vitreoretinopathy: a new concept of disease pathogenesis and practical consequences. Prog Retin Eye Res 2016;51:125-155.

28 Murugeswari P, Shukla D, Kim R, Namperumalsamy P, Stitt AW,Muthukkaruppan V. Angiogenic potential of vitreous from proliferative diabetic retinopathy and Eales' disease patients. PLoS One 2014;9(10):e107551.

29 Chernykh VV, Varvarinsky EV, Smirnov EV, Chemykh DV, Trunov AN. Proliferative and in flammatory factors in the vitreous of patients with proliferative diabetic retinopathy. Indian J Ophthalmol 2015;63(1):33-36.30 Zhou J, Wang S, Xia X. Role of intravitreal in flammatory cytokines and angiogenic factors in prolifrative diabetic retinopathy. Curr Eye Res 2012;37(5):416-420.

31 Klein R, Myers CE, Cruickshanks KJ, Gangnon RE, Danforth LG, Sivakumaran TA, Iyengar SK, Tsai MY, Klein BE. Markers of inflammation, oxidative stress, and endothelial dysfunction and the 20-year cumulative incidence of early age-related macular degeneration: the Beaver Dam Eye Study. JAMA Ophthalmol 2014;132(4):446-455.

32 Balasubramanian SA, Krishna Kumar K, Baird PN. The role of proteases and inflammatory molecules in triggering neovascular agerelated macular degeneration:basic science to clinical relevance. Transl Res 2014;164(3):179-192.

33 Li JK, Wei F, Jin XH, Dai YM, Cui HS, Li YM. Changes invitreous VEGF, bFGF and fibrosis in proliferative diabetic retinopathy after intravitreal bevacizumab. Int J Ophthalmol 2015;8(6):1202-1206.

34 Ahn SJ, Park KH, Woo SJ. Subretinal fibrosis after antivascular endothelial growth factor therapy in eyes with myopic choroidal neovascularization. Retina 2016;36(11):2140-2149.

35 Bagheri A, Soheili ZS, Ahmadieh H, Samiei S, Sheibani N,Astaneh SD, Kanavi MR, Mohammadian A. Simultaneous application of bevacizumab and anti-CTGF antibody effectively suppresses proangiogenic and profibrotic factors in human RPE cells. Mol Vis 2015;21:378-390.

36 Honda S, Hirabayashi H, Tsukahara Y, Negi A. Acute contraction of the proliferative membrane after an intravitreal injection of bevacizumab for advanced retinopathy of prematurity. Graefes Arch Clin Exp Ophthalmol 2008;246(7):1061-1063.

37 Dinarello CA. Immunological and inflammatory functions of the interleukin-1 family. Annu Rev Immunol 2009;27:519-550.

38 Kosnosky W, Li TH, Pakalnis VA, Fox A, Hunt RC. Interleukin-1-Beta changes the expression of metalloproteinases in the vitreous humor and induces membrane formation in eyes containing preexisting retinal holes.Invest Ophthalmol Vis Sci 1994;35(13):4260-4267.

39 Hunt RC, Fox A, al Pakalnis V, Sigel MM, Kosnosky W, Choudhury P, Black EP. Cytokines cause cultured retinal pigment epithelial cells to secrete metalloproteinases and to contract collagen gels. Invest Ophthal Vis Sci 1993;34(11):3179-3186.

40 Yuuki T, Kanda T, Kimura Y, Kotajima N, Tamura J, Kobayashi I, Kishi S. Inflammatory cytokines in vitreous fluid and serum of patients with diabetic vitreoretinopathy. J Diabetes Complications 2001;15(5):257-259.

41 Yoshimura T, Sonoda KH, Sugahara M, Mochizuki Y, Enaida H,Oshima Y, Ueno A, Hata Y, Yoshida H, Ishibashi T. Comprehensive analysis of inflammatory immune mediators in vitreoretinal diseases.PLoS One 2009;4(12):e8158.
