Dear Editor,
Retinal arterial macroaneurysm (RAM), which usually occurs within thefirst three orders of arterial bifurcation,is acquired fusiform or saccular dilatations of retinal arterioles[1-2]. Aging, the female gender, and systemic vascular pathology are common risk factors[3].RAM usually resolves spontaneously without any ocular complication. However, a ruptured RAM may be associated with hemorrhagic and/or exudative complications, such as chronic macular edema[4]. Bleeding from a ruptured RAM may result in a subretinal, intraretinal, preretinal, or vitreous hemorrhage.Exudation from a RAM usually is seen in a circinate pattern surrounding the aneurysm. Although treatment for RAMs is required in patients with sight-threatening macular involvement, there is no well-established option.
In recent studies, the promising results of intravitreal injections of anti-vascular endothelial growth factor (VEGF) agents, such as bevacizumab and ranibizumab, for symptomatic RAM with macular hemorrhage or secondary macular edema have been demonstrated[5-8]. This case report describes the experience with a patient experiencing a ruptured RAM with sub-internal limiting membrane (ILM) preretinal hemorrhage who was treated with intravitreal a flibercept injection.
The 74-year-old woman had a history of visual loss in her right eye of 3 weeks’ duration. Her medical history revealed that she had poorly regulated blood pressure. Her best-corrected visual acuity (BCVA) was hand motion in the right eye and 20/200 in the left eye. A slit-lamp examination revealed senile nuclear cataracts in both eyes. Intraocular pressures were normal. Funduscopy showed a significant preretinal macular hemorrhage in the right eye, a retinal pigment epithelium irregularity in the left eye, and generalized attenuation of the arteries and mild tortuosity in both eyes (Figure 1A). Spectral domain optical coherence tomography (SD-OCT) demonstrated an inner-layer hyper reflectivity with a subsequent outer-layer shadowing consistent with the dense preretinal hemorrhage (Figure 1B).Fluorescein angiography (FA) was postponed due to a large amount of hemorrhaging.
With the diagnosis of a possible ruptured RAM, the patient underwent three intravitreal a flibercept injections four weeks apart. Additionally, her blood pressure was regulated. Four weeks after the first aflibercept injection, a fundus examination showed the presence of a RAM located at the end of a second arterial bifurcation in the superior-temporal arcades(Figure 1C, 1E and 1G). Furthermore, a retinal hemorrhage was located in the super ficial retina between the ILM and the retinal nerve fibre layer in our patient (Figure 1D, 1F). SDOCT scans and an FA were performed, and both con firmed the presence of RAM, and no leakage was reported (Figures 1H,2A and 2B). SD-OCT showed gradual improvement of sub-ILM hemorrhage and associated retinal edema. BCVA was improved to 20/50 in the right eye. Five months later, her clinical findings were still stable.
In the majority of RAMs, spontaneous resolution occurs with thrombosis and fibrosis[4]. Intervention for treatment depends on the clinical findings and associated complications of the disease. Laser photocoagulation, vitreoretinal surgery, pulsed neodymium:yttrium aluminum garnet laser (Nd:YAG) membranotomy, pneumatic displacement or submacular surgery are current treatment options for complicated RAMs[4,8-9].
Recently, intravitreal injection of anti-VEGF agents (bevacizumab and ranibizumab) were used in the treatment of RAMs[10-14]. In this case, following the aflibercept injections,the macular edema and macular hemorrhage were regressed,and visual acuity was improved and stabilized during the follow up. The therapy was well tolerated without any adverse events.To the best of our knowledge, this is thefirst report about intravitreal a flibercept injection for RAM.

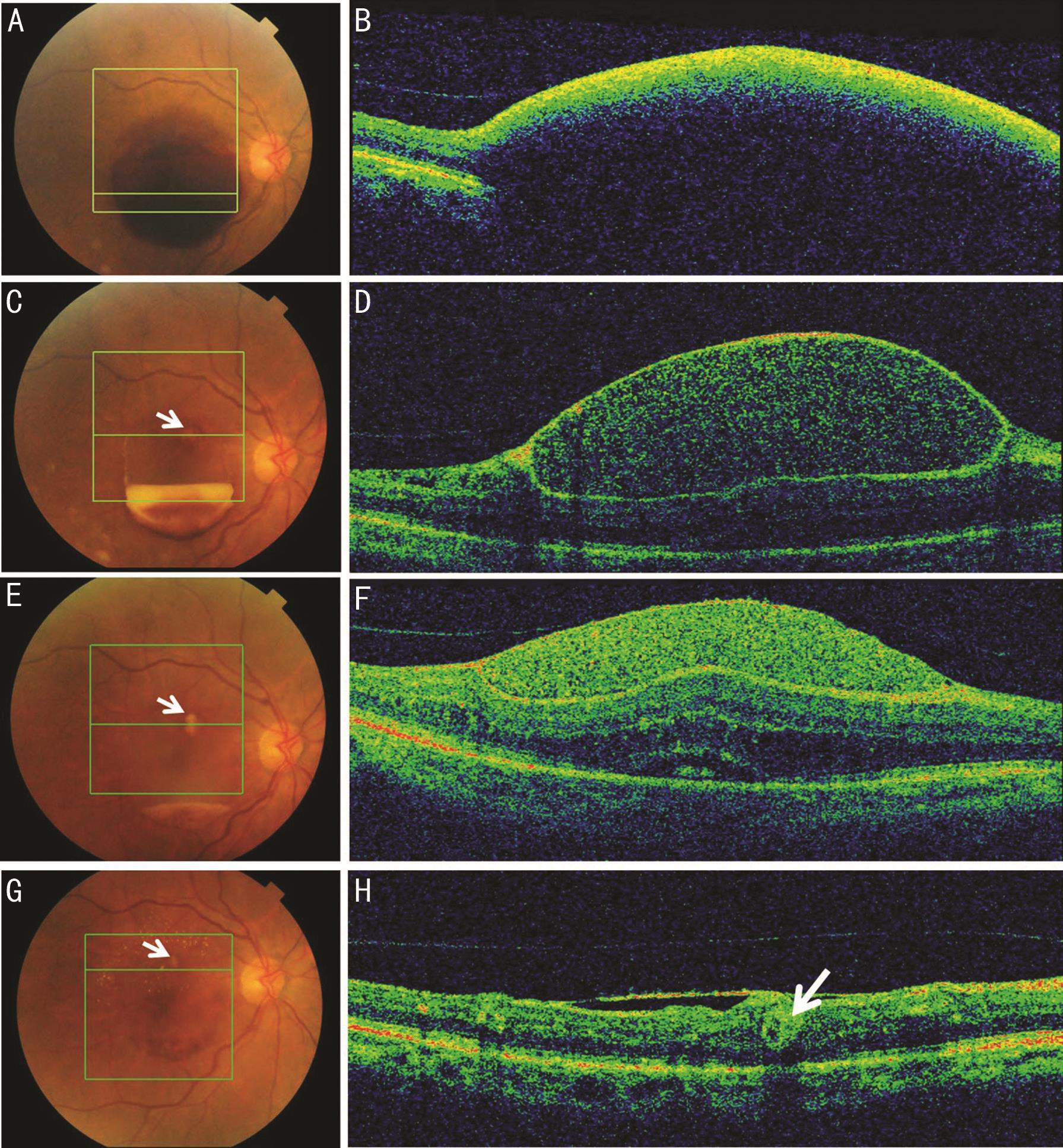

Figure 1 Color fundus picture showing preretinal hemorrhage and SD-OCT scans reveal the initial retinal inner-layer hyper re flectivity and outer-layer shadowing (A, B), four weeks after thefirst intravitreal a flibercept injection; the RAM was located at the end of the second arterial bifurcation in the superior-temporal arcades (white arrows), and the SD-OCT demonstrated that the hemorrhage was between the internal limiting membrane and the retinal nervefibre layer (C, D), four weeks after the second injection (E, F), and four weeks after the third injection (G, H).

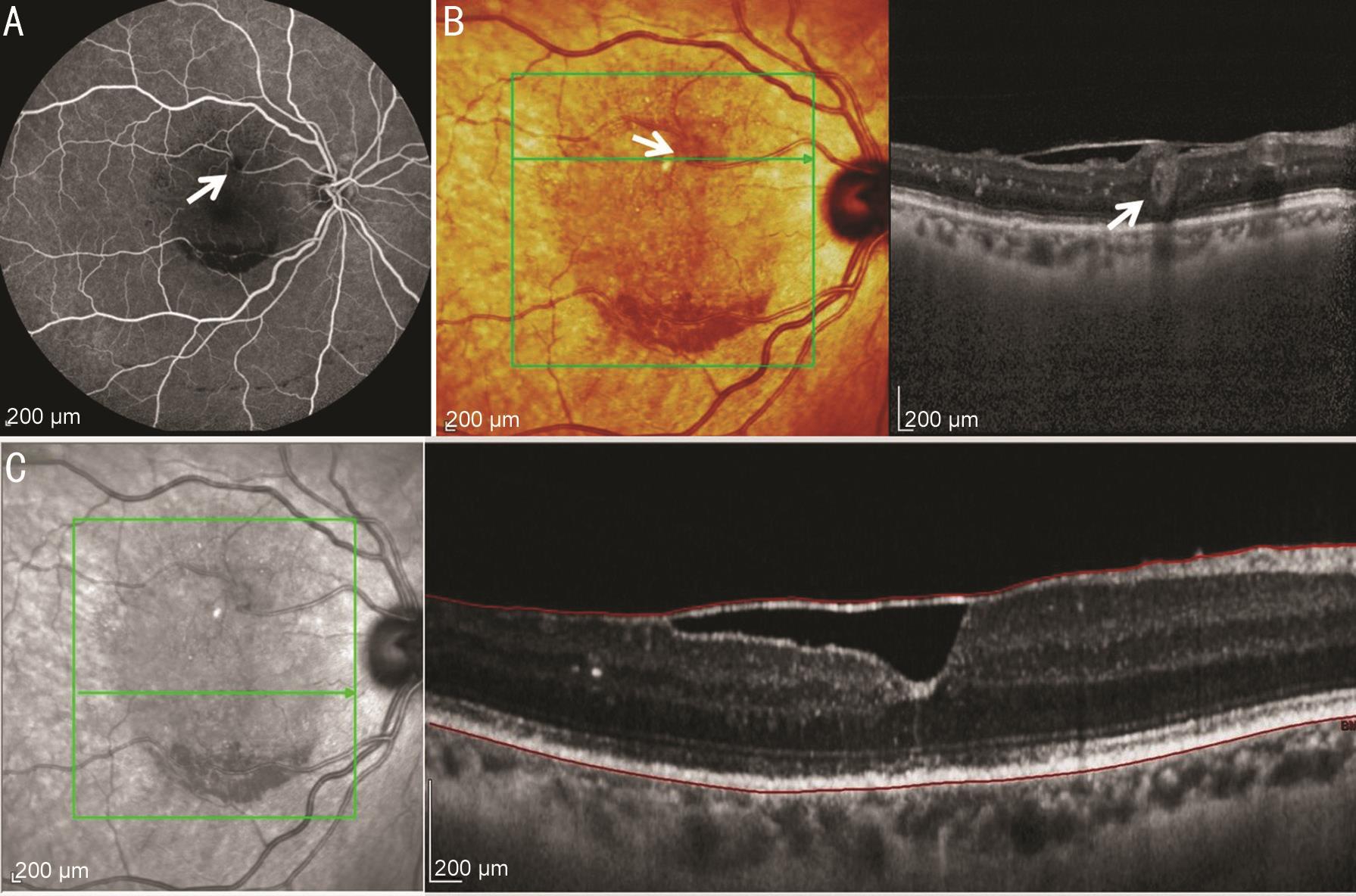

Figure 2 After three monthly a flibercept injections, FA of the right eye showed no leakage (A); thefinal SD-OCT shows the RAM (white arrows) and the fovea (B, C).
The mechanism of anti-VEGF medication in the treatment of RAMs is not fully understood[4]. The inhibition of VEGF resulted from the reduced vascular permeability and central macular thickness, which also leads to visual acuity gain and clearance of the various retinal hemorrhages[7,15]. VEGF causes vasodilation by stimulating endothelial production of nitric oxide, which is related to the activation of coagulation cascades. Anti-VEGF agents may reduce edema by reducing nitric oxide and causing vasoconstriction[7,15]. Additionally, inhibition of VEGF may alter the balance between coagulation and fibrinolysis, thus facilitating the clearing of retinal hemorrhage[7].There are a few reports about the anti-VEGF usage in RAM.Pichi et al[12] reported that intravitreal injection of bevacizumab is an effective therapy for complicated RAM, which leads to rapid improvement in central retinal thickness and BCVA.They performed with three monthly injections and observed 94% closure of the RAM after two injections (at six weeks)with 100% complete resolution of macular edema four weeks after the final bevacizumab injection. Cho et al[7] concluded that intravitreal bevacizumab injection fastens the resolution of the macular edema and hemorrhage by inducing vasoconstriction without any significant in fluence on final BCVA or central macular thickness. In accordance with bevacizumab studies,Erol et al[14] reported that intravitreal ranibizumab injection leads to rapid visual and anatomic rehabilitation in symptomatic RAMs.
A flibercept is a potent anti-VEGF agent that acts like a “VEGF trap” and inhibits the activity of the VEGF subtypes (VEGF-A and VEGF-B) and placental growth factor. Accordingly, we preferred to use this potent anti-VEGF agent in our patient with a significant clinical benefit.
As a conclusion, intravitreal aflibercept injection may offer retina specialists a therapeutic option in cases with ruptured retinal arterial macroaneurysm.
ACKNOWLEDGEMENTS
Conflicts of Interest: Oztas Z, None; Nalcaci S, None;Akkin C, None.
REFERENCES
1 Robertson DM. Macroaneurysms of the retinalarteries. Trans Am Acad Ophthalmol Otolaryngol 1973;77(1):OP55-OP67.
2 Abdel-Khalek MN, Richardson J. Retinal macroaneurysm: natural history and guidelines for treatment. Br J Ophthalmol 1986;70(1):2-11.
3 Rabb MF, Gagliano DA, Teske MP. Retinal arterial macroaneurysms.Surv Ophthalmol 1988;33(2):73-96.
4 Speilburg AM, Klemencic SA. Ruptured retinal arterial macroaneurysm:diagnosis and management. J Optom 2014;7(3):131-137.
5 Javey G, Moshfeghi AN, Moshfeghi AA. Management of ruptured retinal arterial macroaneurysm with intravitreal bevacizumab. Ophthalmic Surg Lasers Imaging 2010;41(4):1-5.
6 Tsakpinis D, Nasr MB, Tranos P, Krassas N, Giannopoulos T, Symeonidis C, Dimitrakos SA, Konstas AG. The use of bevacizumab in a multilevel retinal hemorrhage secondary to retinal macroaneurysm: a 39-month follow-up case report. Clin Ophthalmol 2011;5:1475-1477.
7 Cho HJ, Rhee TK, Kim HS, Han JI, Lee DW, Cho SW, Kim JW. Intravitreal bevacizumab for symptomatic retinal arterial macroaneurysm. Am J Ophthalmol 2013;155(5):898-904.
8 Cahuzac A, Scemama C, Mauget-Faÿsse M, Sahel JA, Wolff B. Retinal arterial macroaneurysms: clinical, angiographic, and tomographic description and therapeutic management of a series of 14 cases. Eur J Ophthalmol 2016;26(1):36-43.
9 Pitkänen L, Tommila P, Kaarniranta K, Jääskeläinen JE, Kinnunen K.Retinal arterial macroaneurysms. Acta Ophthalmol 2014;92(2):101-104.
10 Chanana B, Azad RV. Intravitreal bevacizumab for macular edema secondary to retinal macroaneurysm. Eye (Lond) 2009;23(2):493-494.
11 Golan S, Goldenberg D, Goldstein M. Long-term follow-up of intravitreal bevacizumab in retinal arterial macroaneurysm: a case report. Case Rep Ophthalmol 2011;2(3):387-391.
12 Pichi F, Morara M, Torrazza C, Manzi G, Alkabes M, Balducci N,Vitale L, Lembo A, Ciardella AP, Nucci P. Intravitreal bevacizumab for macular complications from retinal arterial macroaneurysms. Am J Ophthalmol 2013;155(2):287-294.e1.
13 Zweifel SA, Tönz MS, Pfenninger L, Becker M, Michels S. Intravitreal anti-VEGF therapy for retinal macroaneurysm. Klin Monbl Augenheilkd 2013;230(4):392-395.
14 Erol MK, Dogan B, Coban DT, Toslak D, Cengiz A, Ozel D. Intravitreal ranibizumab therapy for retinal arterial macroaneurysm. Int J Clin Exp Med 2015;8(7):11572-11578.
15 Penn JS, Madan A, Caldwell RB, Bartoli M, Caldwell RW, Hartnett ME. Vascular endothelial growth factor in eye disease. Prog Retin Eye Res 2008;27(4):331-371.
