MnSOD Val16Ala polymorphism associated with retinopathy risk in diabetes: a PRlSMA-compliant Meta-analysis of case-control studies

INTRODUCTION

Diabetic retinopathy (DR) is a microvascular complication of diabetes affecting the retina and a leading cause of blindness worldwide[1]. DR is generally associated with the diabetes duration and poor glycemic control, but several studies have indicated that variations in the onset and severity of DR are not totally explained by known risk factors[2-3].

An important reason for DR is damage to vessel endothelia due to oxidative stress[2,4]. It was demonstrated that oxidative stress plays a major role in the development and persistence of DR even after establishing adequate glycemic control[5].Kowluru[6] also found that the enzymatic mechanisms involved in protection against oxidative stress were impaired in the retinas of diabetic rats. A high level of reactive oxygen species(ROS) due to oxidative stress is assumed to damage the mitochondrial DNA and influence the respiratory chain via the lipid peroxidation of nerve cells[7-9]. The overproduction of ROS (especially superoxide) by the mitochondrial electrontransport chain is prevented by overexpression of the manganese superoxide dismutase (MnSOD) enzyme, which catalyses the dismutation of superoxide radicals into hydrogen peroxide and hence protects retinal endothelial cells from oxidative damage[2,10].

These results suggest that the enzyme activity of MnSOD could be related to the development of DR. Val16Ala is a single-nucleotide polymorphism in MnSOD that has been demonstrated to be functionally signif i cant[11]. It was reported that the Val allele disrupts the alpha-helix structure of MnSOD.The protein encoded by Val was thus retained at the level of the mitochondrial inner membrane, and has been associated with lower enzyme activity, resulting in increased susceptibility to oxidative stress[11]. Therefore, Val16Ala may cause inter individual differences in the susceptibility to DR.

Many epidemiological studies performed in different countries have investigated the association between Val16Ala and susceptibility to DR during the past few decades, but these studies have yielded some controversial results, and there has been no systematic or quantitative assessment of published findings on this topic. Therefore, a Meta-analysis of casecontrol studies was conducted to summarize the available evidence on this issue.

MATERIALS AND METHODS

This Meta-analysis was designed according to the guidelines described in the Preferred Reporting Items for Systematic Reviews and Meta-analyses (PRISMA) statement[12].

Data Sources and Selection of the Studies Relevant studies were identif i ed by manually searching the following databases:PubMed, Embase, China National Knowledge Infrastructure,and Wanfang. Articles published before August 27, 2015 were screened using the following search terms: diabetic retinopathy (diabetic microangiopathy) AND manganese superoxide dismutase (MnSOD OR SOD2 OR SOD-2) AND polymorphism (genetic OR mutation OR variation OR variant OR genotype). Only journal articles were included, and the publication languages were restricted to English and Chinese.All references cited in the included articles were also reviewed to identify additional relevant work.

Eligibility Criteria All relevant studies were independently reviewed by two authors. The following study selection criteria were used: using a case-control design; investigating the association of the Ala16Val polymorphism with the risk of retinopathy in diabetic patients; and presenting suff i cient data on the distribution of the Ala16Val polymorphism in patients with and without DR to calculate odds ratios (ORs) and 95%conf i dence intervals (CIs), or data necessary to calculate these parameters. When multiple publications related to the same study were available, we used the publication with the largest number of cases and the most applicable information.

Data Extraction For each study that met the inclusion criteria, the following data were abstracted by two authors independently: first author, publication year, race(s) of study population, genotyping method, number of cases and controls with different genotypes, conformity with Hardy-Weinberg equilibrium (HWE) for controls, and study quality assessment.

Quality Assessment Two of the authors independently assessed the quality of the included studies. The quality scoring criteria were modified from the Meta-analysis performed by Niu et al[13] that produced a scale for quality assessment used in observational studies of genetic epidemiology. The item“Source of controls” was replaced by “Def i nition of the DR,”because the control group in the present study comprised diabetic patients without retinopathy, and a clear def i nition of DR would promote the authenticity of the results and reflect the quality of publications to some extent. The scores for the modif i ed criteria ranged from 0 points (the worst) to 9 points(the best). Studies with a score of ＜6 were classified as low quality, and were not included in the subsequent Meta-analysis.

Statistical Analysis STATA (version 11.0, Stata Corporation,College Station, TX, USA) was used to perform statistical analyses. The pooled OR and 95%CI values were calculated to evaluate the strength of the association between the Ala16Val polymorphism and the risk of retinopathy in diabetic patients.The Meta-analysis examined the overall association under the dominant model (Ala/Ala+Val/Ala vs Val/Val), recessive model (Ala/Ala vs Val/Ala+Val/Val), and additive model (Ala vs Val). Subgroup analyses were performed according to race and conformity with HWE in controls.

The presence of heterogeneity was assessed using Cochran’s Q statistic and quantified using the I2 statistic. A Ρ value of＜0.1 or I2＞40% indicates the presence of a very high degree of heterogeneity[13-14]. The overall pooled OR and 95% CI values were estimated using the Mantel-Haenszel method with a fi xed-effects model. Otherwise, the Der Simonian and Laird method with a random-effects model was used. The signif i cance of the pooled OR was determined by a Z test. The cutoff for statistical signif i cance was set at Ρ＜0.05.

Cumulative Meta-analyses according to the accuracy or publication year of single studies were used to evaluate the change trends in the results. In addition, the overall robustness of the results was assessed by analyzing the inf l uence of single studies.

Publication bias was analyzed using funnel plots. The absence of obvious publication bias was suggested when the data in a funnel plot were distributed roughly symmetrically, and vice versa[15]. Egger’s linear regression was used to test the symmetry of the funnel plot, and a probability value of Ρ＜0.05 was considered suggestive of poor symmetry.

RESULTS

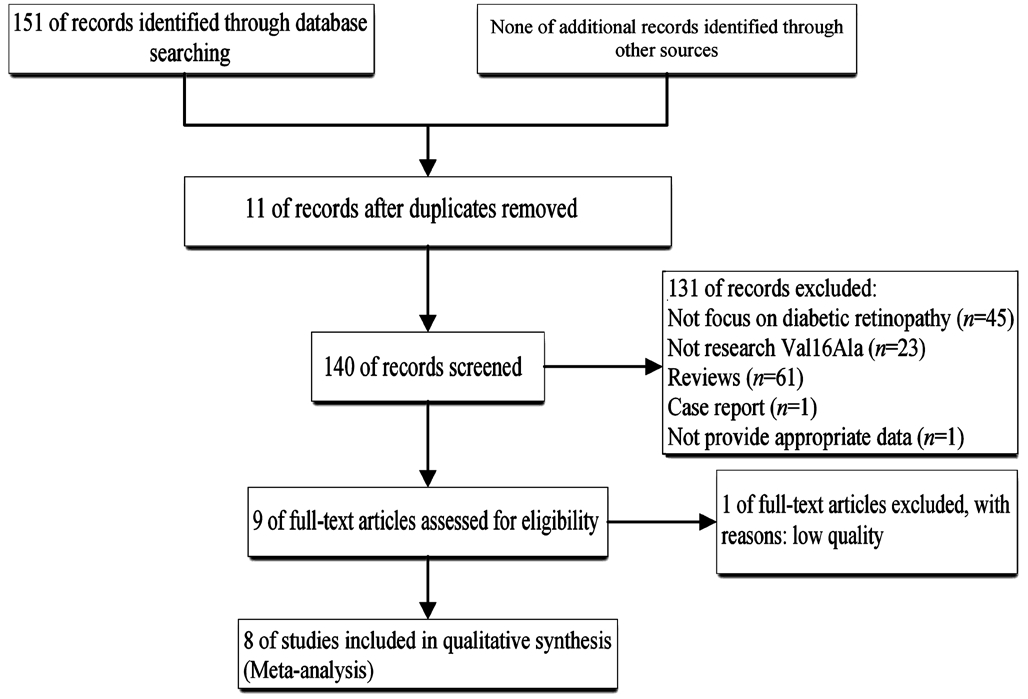

Study Characteristics A systematic review of the literature identified 151 relevant studies. Figure 1 shows the study flow diagram (PRISMA template). Duplicate studies, studies not focusing on DR, studies not investigating the Val16Ala polymorphism, studies not providing appropriate data, and reviews involving low-quality studies were excluded (n=142),which meant that nine studies meet the inclusion criteria. Ye et al[16] investigated the association between the Val16Ala polymorphism and the risk of retinopathy in diabetic patients with suff i cient data, but its quality was low, and so this study was excluded. Therefore, eight studies[2,9,17-22] were finally included in the quantitative analysis.

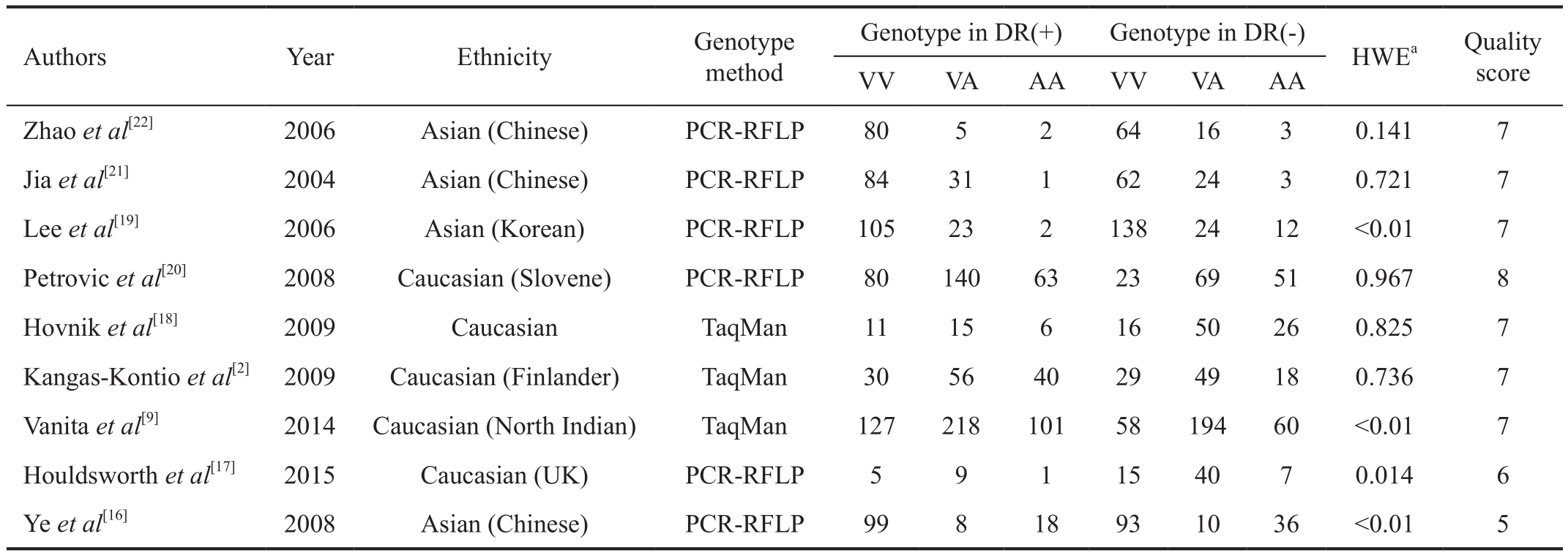

The characteristics of the nine included articles (including the low-quality studies[16]) along with their quality assessment scores are listed in Table 1. Eight studies were included in the Meta-analysis of the role of the Val16Ala polymorphism in the risk of retinopathy in diabetics, and this included 1235 cases and 1051 controls. Five of the eight studies focused on Caucasian populations[2,9,17-18,20], while the other three focused on Asian populations[19,21-22]. The Val16Ala distribution in controls deviated from HWE in three studies[9,17,19].

Meta-analysis Results The combined analyses of the eight studies revealed that the Val16Ala polymorphism was associated with the risk of DR under the dominant model(OR=0.66, 95%CI=0.48-0.91, Ρ＜0.0001) but not under the recessive model (OR=0.75, 95%CI=0.44-1.28, Ρ=0.29) or the additive model (OR=0.79, 95%CI=0.61-1.03, Ρ=0.08). The level of heterogeneity in all three models was high: Ρ=0.051(I2=49.9%), Ρ=0.004 (I2=66.6%), and Ρ=0.005 (I2=65.3%) for the dominant, recessive, and addictive models, respectively;a random effect was therefore used in the above three genetic models (Figure 2).

Subgroup Analysis Subgroup analysis according to race showed that the Val16Ala polymorphism was associated with the risk of DR in Caucasians under the dominant model(OR=0.64, 95%CI=0.42-0.97, Ρ=0.04) and in Asians under the recessive model (OR=0.31, 95%CI=0.11-0.88, Ρ=0.03)(Figure 2).

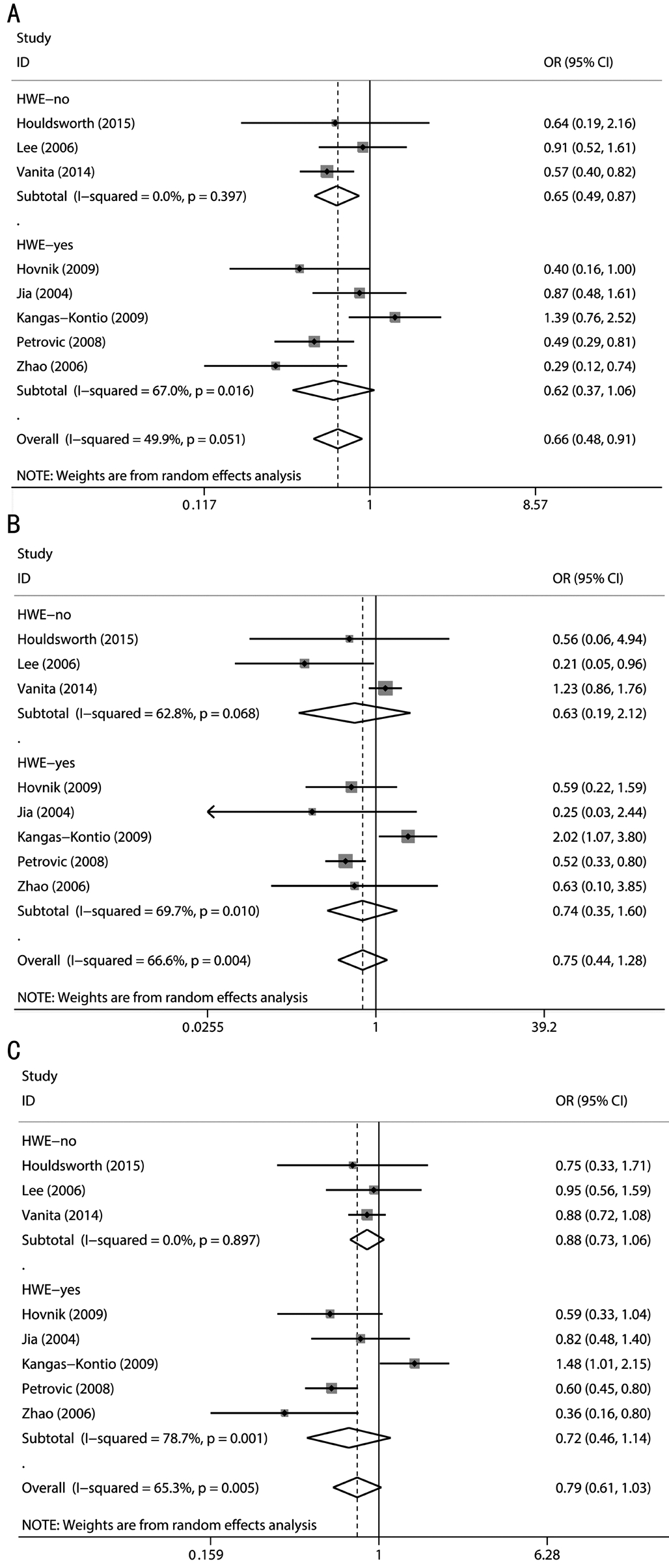

Subgroup analyses accounting for conformity with HWE in controls were also performed. A pooled analysis of three studies [9,17,19] in which the Val16Ala distribution in controls deviated from HWE revealed an association of the Val16Ala polymorphism with the risk of DR under the dominant model(OR=0.65, 95%CI=0.49-0.87, Ρ=0.004). A Meta-analysis of the remaining five studies[2,18,20-22] in which the Val16Ala distribution in controls did not deviate from HWE found no association of the polymorphism with the risk of DR (Figure 3).

Analyzing the Inf l uence of Single Studies A sensitivity analysis of the dominant model was performed by analyzing the inf l uence of single studies individually (Figure 4). We found that including the study of Vanita[9] greatly impacted the total pooled effect size. Excluding this study led to a change in the pooled effect size from 0.66 (0.48-0.91) to 0.68 (0.46-1.004),and a loss of the signif i cant association between the Val16Ala polymorphism and the risk of retinopathy in diabetics. Also,for the recessive model and the allele contrast model, the study of Kangas-Kontio et al[2] greatly impacted the total pooled effect size.

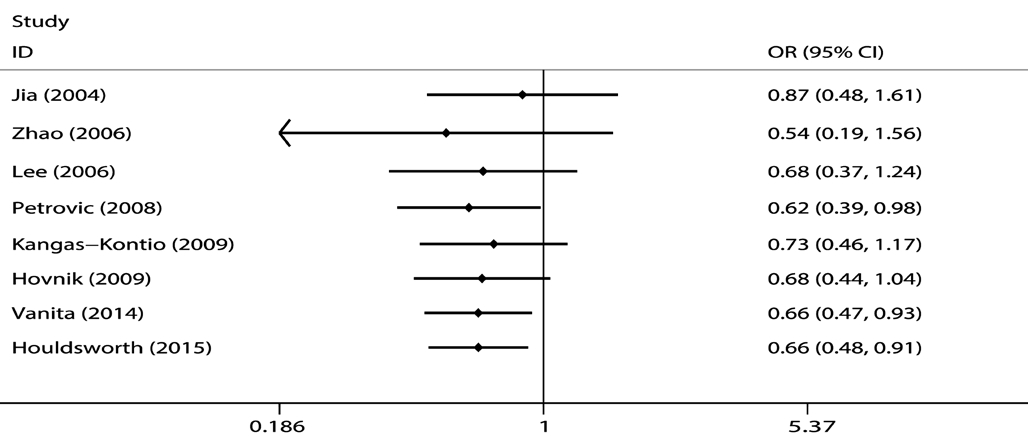

Cumulative Analysis Cumulative analysis by publication date demonstrated that the risk of DR decreased gradually and became positive, which is in accordance with the fi ndings of Vanita[9] (Figure 5 for the dominant model). Under the recessive and additive models, the risk of DR showed a stable trend with publication date.

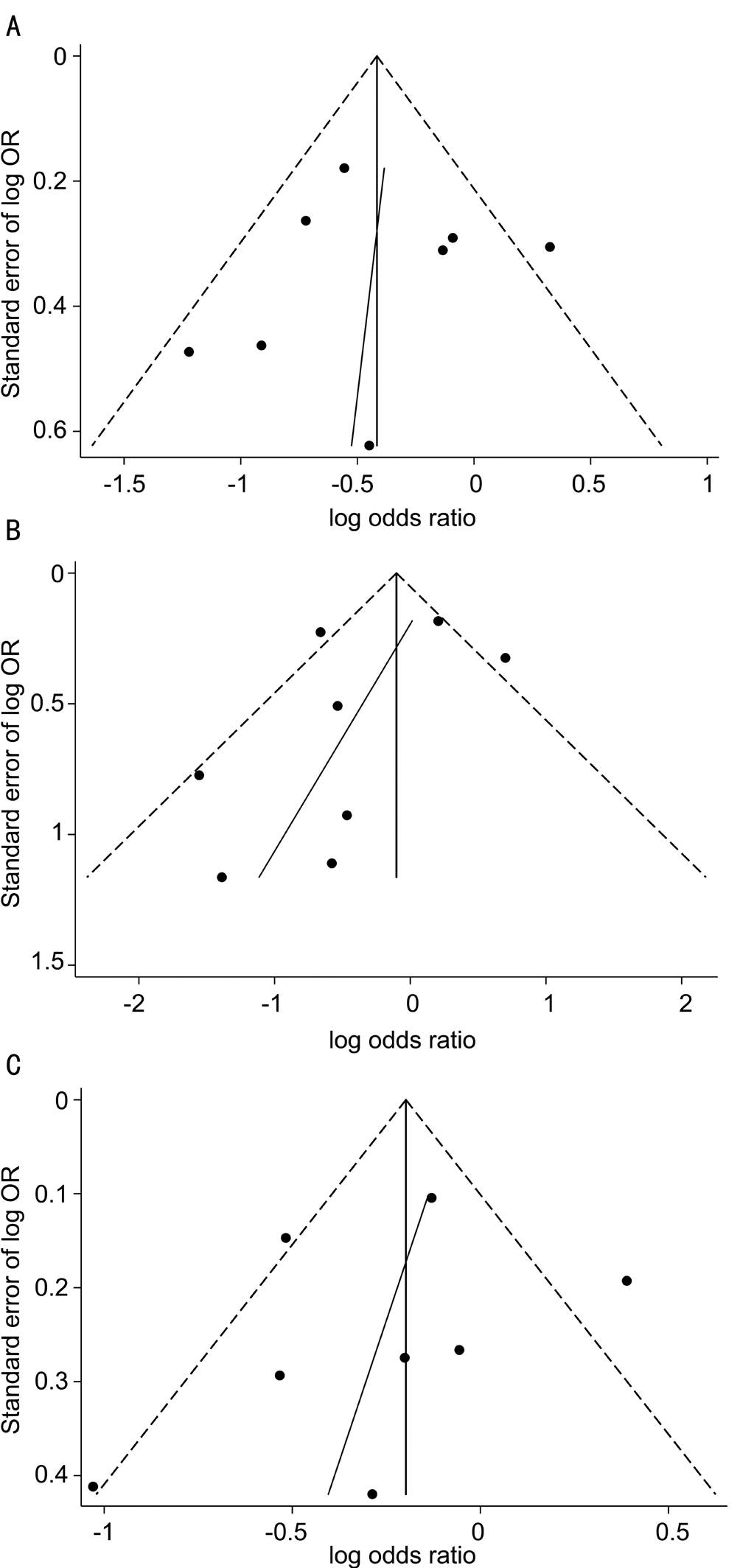

Publication Bias The evaluation of publication bias using funnel plots found no evidence of obvious asymmetry (Figure 6). The results were further verif i ed by Egger’s test: Ρ=0.845,0.32, and 0.577 for the dominant, recessive, and additive models, respectively. All of these suggested there was no obvious publication bias for the Meta-analysis under the three genetic models.

DISCUSSION

The results from this comprehensive Meta-analysis of case-control studies suggest that the MnSOD Val16Ala polymorphism is a risk factor for retinopathy in diabetics under a dominant model. Subgroup analysis according to race also showed signif i cant associations under different genetic models:in Caucasians under the dominant model and in Asians under the recessive model. The main results of this Meta-analysis were stable according to verif i cation performed in a cumulative analysis, and moreover no obvious publication was found.

The risk factors for DR have been studied widely. Ting et al[23] concluded that the modifiable risk factors include hyperglycemia, hypertension, hyperlipidemia, obesity, duration of diabetes, puberty, pregnancy, cataract surgery, inf l ammatory biomarkers, and genetic risk factors. The severity and rapidity of DR onset have previously been associated with several genetic factors[24], including the ALR2 (aldose reductase gene),RAGE (receptor for advance glycation end products) gene,TGF-beta1 (transforming growth factor beta 1) gene, VEGF(vascular endothelial growth factor) gene, eNOS (endothelial nitric oxide synthase) gene, and IGF-I (insulin-like growth factor 1)gene[23]. MnSOD is also a widely studied gene[2,9,16-22]. However,these associations were found to be weak, inconsistent, and with a lack of standardization of the DR phenotype across different populations. It is difficult to draw any conclusions from these studies also because the individual studies often included small samples. The present study applied a Metaanalysis involving 1235 cases and 1051 controls, and found that the MnSOD polymorphism was associated with the risk of DR, thereby verifying the role of the MnSOD gene in the development of DR. Moreover, the statistical power of the Meta-analysis was stronger than that in any of the included studies.

The heterogeneity in this Meta-analysis was a little high, and was still present even after subgroup analysis according to race and conformity with HWE in controls. The sources of heterogeneity can generally be found by Meta-regression,but this method could not be performed due to the limitations associated with the small number of included studies.Therefore, random-effects models were used, which assume different underlying effects, considering both within- and between-study variations, offering an advantage that this accommodates diversity between studies and provides more conservative estimates of the assessed effects[25].

Subgroup analysis by race revealed that the Val16Ala polymorphism inf l uenced the risk of DR in Caucasians and Asians under the dominant and recessive models, respectively. The disparity between races may ref l ect the existence of a true populationspecific disease variant, but may also be attributable to differences in genomic structure at these loci between populations. In additional, the number of included studies,especially for Asians, was too small to draw stable conclusions.The study of Vanita[9] was identified as an outlier for the dominant model in the sensitivity analysis. There was no obvious difference in study design between that study and the other included studies, and its outlier nature was attributed to the race of the included population. Cumulative analysis showed that the number of studies on the same topic increased as time passed, causing the association between the Val16Ala polymorphism and the risk of DR to become more signif i cant under the dominant model. However, the signif i cant association only appeared for the cumulative data at 2014,which suggested that more similar studies are still needed to verify the stability of the association.

DR and diabetic nephropathy are the two common forms of diabetic microangiopathy[26]. The retina is particularly susceptible to oxidative stress because of its high consumption of oxygen, high proportion of polyunsaturated fatty acids,and exposure to visible light[20]. The present study found an effect of MnSOD-an enzyme associated with oxidative stresson DR susceptibility. Oxidative stress also contributes to the development of diabetic nephropathy[27], and Mollsten et al[28] found that the Val/Val genotype combined with smoking is associated with diabetic nephropathy in type 1 diabetes.However, few published studies have focused on diabetic nephropathy and MnSOD polymorphism, thus limiting the ability to perform a Meta-analysis to obtain more reliable conclusions.

The results presented herein increase the knowledge about genetic risk factors underlying the development of retinopathy in diabetes. We found that the frequency of the Val/Val genotype was higher in retinopathy cases than in diabetes without retinopathy, which suggests that diabetic patients carrying the Val/Val genotype have a greater risk of developing retinopathy. For such diabetic patients, early prevention is very important.

The results of this Meta-analysis should be interpreted with caution due to some limitations in our analysis. Firstly, only a small number of studies were included in the Meta-analyses.Secondly, selection bias was a possible major source of heterogeneity from uncontrolled confounders and bias inherent in the study design, and the direction and magnitude of this bias are uncertain. For example, identical criteria were not clearly applied to the cases and controls in most of the included studies. Thirdly, there is a possibility of interactions between the MnSOD Val16Ala polymorphism and other environmental factors, such as the glucose level and smoking status, and these were not taken into account.

In summary, the present Meta-analysis supports that the MnSOD Val16Ala polymorphism is positively associated with the risk of retinopathy in diabetes. Future studies are required that involve larger samples and incorporate both the effects of environmental agents and genotypes of enzymes related to oxidative stress.

ACKNOWLEDGEMENTS

Foundation: Supported by the Natural Science Foundation of Shaanxi Province (No.2015JM8415).

Conflicts of Interest: Huang L, None; Lyu J, None; Liu QP,None; Chen C, None; Wang T, None.

REFERENCES

1 See JL, Wong TY, Yeo KT. Trends in the pattern of blindness and major ocular diseases in Singapore and Asia. Ann Acad Med Singapore 1998;27(4):540-546.

2 Kangas-Kontio T, Vavuli S, Kakko SJ, Penna J, Savolainen ER, Savolainen MJ, Liinamaa MJ. Polymorphism of the manganese superoxide dismutase gene but not of vascular endothelial growth factor gene is a risk factor for diabetic retinopathy. Br J Ophthalmol 2009;93(10):1401-1406.

3 Uhlmann K, Kovacs P, Boettcher Y, Hammes HP, Paschke R. Genetics of diabetic retinopathy. Exp Clin Endocrinol Diabetes 2006;114(6):275-294.4 Naudi A, Jove M, Ayala V, Cassanye A, Serrano J, Gonzalo H, Boada J,Prat J, Portero-Otin M, Pamplona R. Cellular dysfunction in diabetes as maladaptive response to mitochondrial oxidative stress. Exp Diabetes Res 2012;2012:696215.

5 Kowluru RA, Kern TS, Engerman RL. Abnormalities of retinal metabolism in diabetes or experimental galactosemia. IV. Antioxidant defense system. Free Radic Biol Med 1997;22(4):587-592.

6 Kowluru RA. Effect of reinstitution of good glycemic control on retinal oxidative stress and nitrative stress in diabetic rats. Diabetes 2003;52(3):818-823.

7 Guidot DM, McCord JM, Wright RM, Repine JE. Absence of electron transport (Rho 0 state) restores growth of a manganese-superoxide dismutase-def i cient Saccharomyces cerevisiae in hyperoxia. Evidence for electron transport as a major source of superoxide generation in vivo. J Biol Chem 1993;268(35):26699-26703.

8 Low PA, Nickander KK, Tritschler HJ. The roles of oxidative stress and antioxidant treatment in experimental diabetic neuropathy. Diabetes 1997;46 Suppl 2:S38-S42.

9 Vanita V. Association of RAGE (p.Gly82Ser) and MnSOD (p.Val16Ala)polymorphisms with diabetic retinopathy in T2DM patients from north India. Diabetes Res Clin Ρract 2014;104(1):155-162.

10 Kowluru RA, Atasi L, Ho YS. Role of mitochondrial superoxide dismutase in the development of diabetic retinopathy. Invest Ophthalmol Vis Sci 2006;47(4):1594-1599.

11 Sutton A, Imbert A, Igoudjil A, Descatoire V, Cazanave S, Pessayre D,Degoul F. The manganese superoxide dismutase Ala16Val dimorphism modulates both mitochondrial import and mRNA stability. Ρharmacogenet Genomics 2005;15(5):311-319.

12 Moher D, Liberati A, Tetzlaff J, Altman DG; PRISMA Group.Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. BMJ 2009;339:b2535.

13 Niu YM, Du XY, Cai HX, Zhang C, Yuan RX, Zeng XT, Luo J.Increased risks between Interleukin-10 gene polymorphisms and haplotype and head and neck cancer: a meta-analysis. Sci Rep 2015;5:17149.

14 DerSimonian R, Laird N. Meta-analysis in clinical trials. Control Clin Trials 1986;7(3):177-188.

15 He H, He G, Wang T, Cai J, Wang Y, Zheng X, Dong Y, Lu J.Methylenetetrahydrofolate reductase gene polymorphisms contribute to acute myeloid leukemia and chronic myeloid leukemia susceptibilities:evidence from meta-analyses. Cancer Epidemiol 2014;38(5):471-478.

16 Ye LX, Yang MP, Qiu H, Guo KQ, Yan JS. Association of the polymorphism in manganese superoxide dismutase gene with diabetic retinopathy in Chinese type 2 diabetic patients. Zhonghua Yi Xue Yi Chuan Xue Za Zhi 2008;25(4):452-454.

17 Houldsworth A, Hodgkinson A, Shaw S, Millward A, Demaine AG.Polymorphic differences in the SOD-2 gene may affect the pathogenesis of nephropathy in patients with diabetes and diabetic complications. Gene 2015;569(1):41-45.

18 Hovnik T, Dolzan V, Bratina NU, Podkrajsek KT, Battelino T.Genetic polymorphisms in genes encoding antioxidant enzymes are associated with diabetic retinopathy in type 1 diabetes. Diabetes Care 2009;32(12):2258-2262.

19 Lee SJ, Choi MG. Association of manganese superoxide dismutase gene polymorphism (V16A) with diabetic macular edema in Korean type 2 diabetic patients. Metabolism 2006;55(12):1681-1688.

20 Petrovic MG, Cilensek I, Petrovic D. Manganese superoxide dismutase gene polymorphism (V16A) is associated with diabetic retinopathy in Slovene (Caucasians) type 2 diabetes patients. Dis Markers 2008;24(1):59-64.

21 Jia YK. Study on the relationship between polymorphism of manganese superoide dismutase gene and diabetic microvascular complications in type 2 diabetes mellitus. Tianjin Medical University,2004.

22 Zhao Z, Liu LM, and Zheng TS. Correlation of gene polymorphism of manganese superoxide dismutase and type 2 diabetic retinopathy. Journal of Shanghai Jiaotong University (Medical Science) 2006;26(9):965-967.

23 Ting DS, Cheung GC, Wong TY. Diabetic retinopathy: global prevalence, major risk factors, screening practices and public health challenges: a review. Clin Exp Ophthalmol 2016;44(4):260-277.

24 Kumaramanickavel G, Sripriya S, Ramprasad VL, Upadyay NK, Paul PG, Sharma T. Z-2 aldose reductase allele and diabetic retinopathy in India. Ophthalmic Genet 2003;24(1):41-48.

25 Lopez-Lopez E, Martin-Guerrero I, Ballesteros J, Garcia-Orad A.A systematic review and meta-analysis of MTHFR polymorphisms in methotrexate toxicity prediction in pediatric acute lymphoblastic leukemia. Ρharmacogenomics J 2013;13(6):498-506.

26 Henzen C. Diabetic Retinopathy and Neuropathy: New in 2015. Ρraxis(Bern 1994) 2015;104(12):631-634.

27 Forbes JM, Coughlan MT, Cooper ME. Oxidative stress as a major culprit in kidney disease in diabetes. Diabetes 2008;57(6):1446-1454.

28 Mollsten A, Marklund SL, Wessman M, Svensson M, Forsblom C, Parkkonen M, Brismar K, Groop PH, Dahlquist G. A functional polymorphism in the manganese superoxide dismutase gene and diabetic nephropathy. Diabetes 2007;56(1):265-269.
