A novel frameshift mutation in CX46 associated with hereditary dominant cataracts in a Chinese family

INTRODUCTION

Congenital cataracts, which affect about 0.015%-0.03%of children vision in the world, are the main cause of childhood blindness. The hereditary autosomal dominant and recessive cataracts account for one third of congenital cataracts[1]. Such type of cataracts, which usually develops in infants with abnormal eye development, is closely associated with autosome genetic mutation (e.g. genetic mutations in crystallins, gap-junction proteins, lens structural intermediate fi laments and transcription factors)[2]. These mutations impair the lens development at different developmental stages.

Gap junctions are channels formed by two hemichannels(connexons) that mediate the cell-to-cell communication of ions, ATP, peptides and other nutrients. Each hemichannel is composed of six protein subunits termed connexins (CXs).About 20 CXs have been identif i ed in mammalian tissues, and they usually form three types of gap junctions: 1) homotypic channels with two identical connexons composed of one type of CX subunit; 2) heterotypic channels with homomeric connexons, each containing a different type of CX; and 3)heterotypic channels with heteromeric connexons[3-4]. In lens,gap junctions are composed of three types of CXs: CX43(or Gja1) is present in lens epithelial cells; CX46 (or Gja3)mainly expresses in the fiber cells; and CX50 (or Gja8) is present in epithelial and fiber cells[5-7]. The CX23 protein is also expressed in embryonic lens fi ber cells, but it is unclear whether this CX can form gap junctions[8]. Knocking out CX46 or CX50 genes cause the microphthalmia and congenital cataracts in mouse models[9-10]. Genetic mutations in CX46 or CX50 genes are closely associated multiple hereditary diseases such as cataracts and neurodegenerative diseases.

CX46 protein, which contains 435 amino acids, has four transmembrane domains and is predominantly expressed in mature fiber cells. The 23 mutations in CX46 protein were identified to be closely associated with hereditary autosomal cataracts[11-13]. Most of these mutations occur in the N-terminal,fi rst transmembrane and extracellular domains. One frameshift mutation, which is at fs380 of CX46, was reported to be associated with hereditary autosomal dominant cataracts in a Chinese family[14]. The congenital cataracts linked to the CX46 mutations are heterogeneous in age of onset and cataract appearance, including nuclear, total, posterior polar, coppocklike and zonular pulverulent types. Hemichannel dysfunction and/or endoplasmic reticulum-associated degradation (ERAD)induced by misfolded CX46 mutants in the endoplasmic reticulum were found to be the common molecular mechanisms responsible for the CX46-associated cataracts[15].

In the present study, we looked at the genetic mutations that are possibly associated with an autosomal dominant cataract pedigree consisting of 5 generations and 27 individuals.Using direct exon sequencing, we found a novel insertion of cytosine at site 1195 in the CX46 cDNA. This insertion causes a frameshift mutation in the C-terminus of CX46, resulting in CX46 protein dysfunction, which should be closely associated with this cataract pedigree.

MATERIALS AND METHODS

Subjects and DNA Preparation A Chinese cataract pedigree,which contains 27 patients involving five generations,presented in eye clinic in Kaifeng Eye Hospital. To do the genomic mutation analysis, the consents were noticed to all the participants. For genomic DNA extraction, the peripheral blood samples were collected from 5 affected and 2 unaffected individuals in this pedigree, and 100 normal volunteer students from Henan University School of Medicine. The genomic DNA was isolated according to the standard protocol in the blood genomic DNA isolation kit (DP348, TIANGEN Biotech, Beijing, China) for exon sequencing. All experimental procedures described in this study were approved by the Ethics Committees of both Henan University and Kaifeng Centre Hospital.

Mutation Screening For exon sequencing, 11 candidate genes (cryaa, cryab, crybb1, crybb2, crygc, crygd, Gja3, Gja8,Hsf4, Mip and Pitx3) that are known to be associated with hereditary autosomal dominant cataracts were chosen for exon sequencing. All exons and exon-intron junctions of these 11 candidates were amplif i ed with rTaq DNA polymerase (Takara,Japan) and their respective primers. The PCR products were validated by DNA sequencing (GENEWIZ, Suzhou, China).For exon sequencing of CX46, the primer set 1: CX46-1 (forward:5' cccatcagccccatcccagta 3' and reverse: 5' ggcgggggatcggctgtc 3')was used to amplify coding region of exon 2 , while primer set 2: CX46-2 ( forward: 5' aggcccacggagaagaccatc 3' and reverse:5' gcattgaacacggaaacctgatct 3') was for amplifying the genomic region of exon 2-intron junction. Both primer sets produced a unique PCR band in 1% argrose gels (data not shown).

Immunoblotting Assay The lens anterior epithelia and fi ber tissues were collected from proband and other unrelated age-matched cataract patients during the intraocular lens implantation surgery. The tissues were lysed with NP-40 lysis buffer (50 mmol/L Tris-HCl, pH 7.4, 150 mmol/L NaCl, 1%NP-40) containing the protease inhibitor cocktail (Roche).Equal amounts of protein samples were separated with SDSPAGE and transferred onto PVDF membranes. After blocking in 5% fat-free milk, the membranes were incubated with the primary antibodies overnight at 4℃. After being washed in PBST buffer, the membranes were incubated with the secondary antibodies conjugated with hydrogen-peroxide(HRP) (Thermo Fisher, USA) and developed in enhanced chemiluminescence (ECL) buffer. The signals were detected by exposing the membranes to X-ray fi lm. Antibodies against GAPDH (HRP-60004) and CX46 (22717-1-AP) were purchased from Protein tech (Wuhan, China). Alpha A-crystallin antibodies (NBP2-12875) were from Novus (Littleton, USA),alpha B-crystallin antibody (sc-22744) from Santa Cruz(Shanghai, China), and CX50 antibody (SAB1300562) from Sigma (St. Louis, USA).

RESULTS

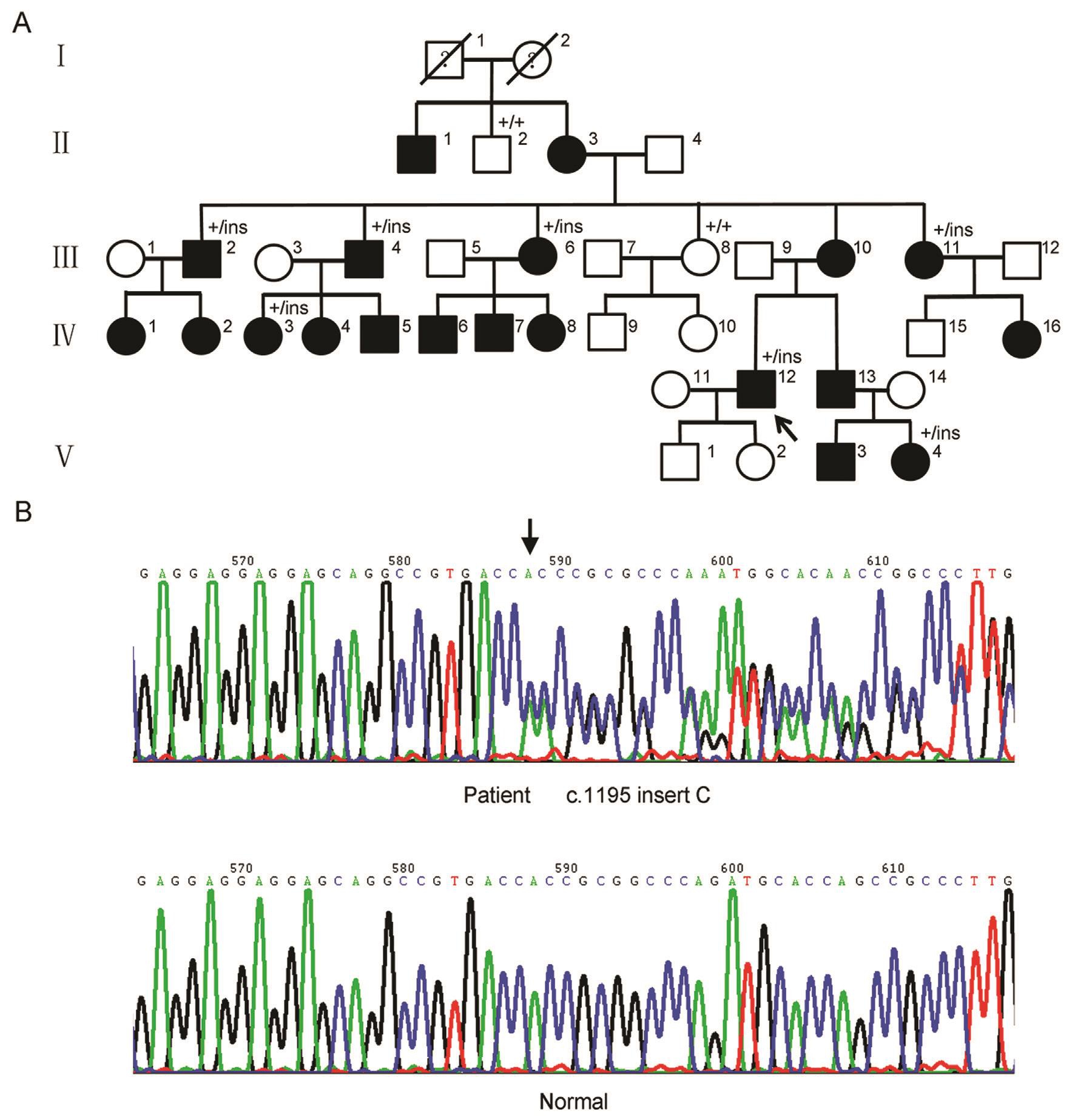

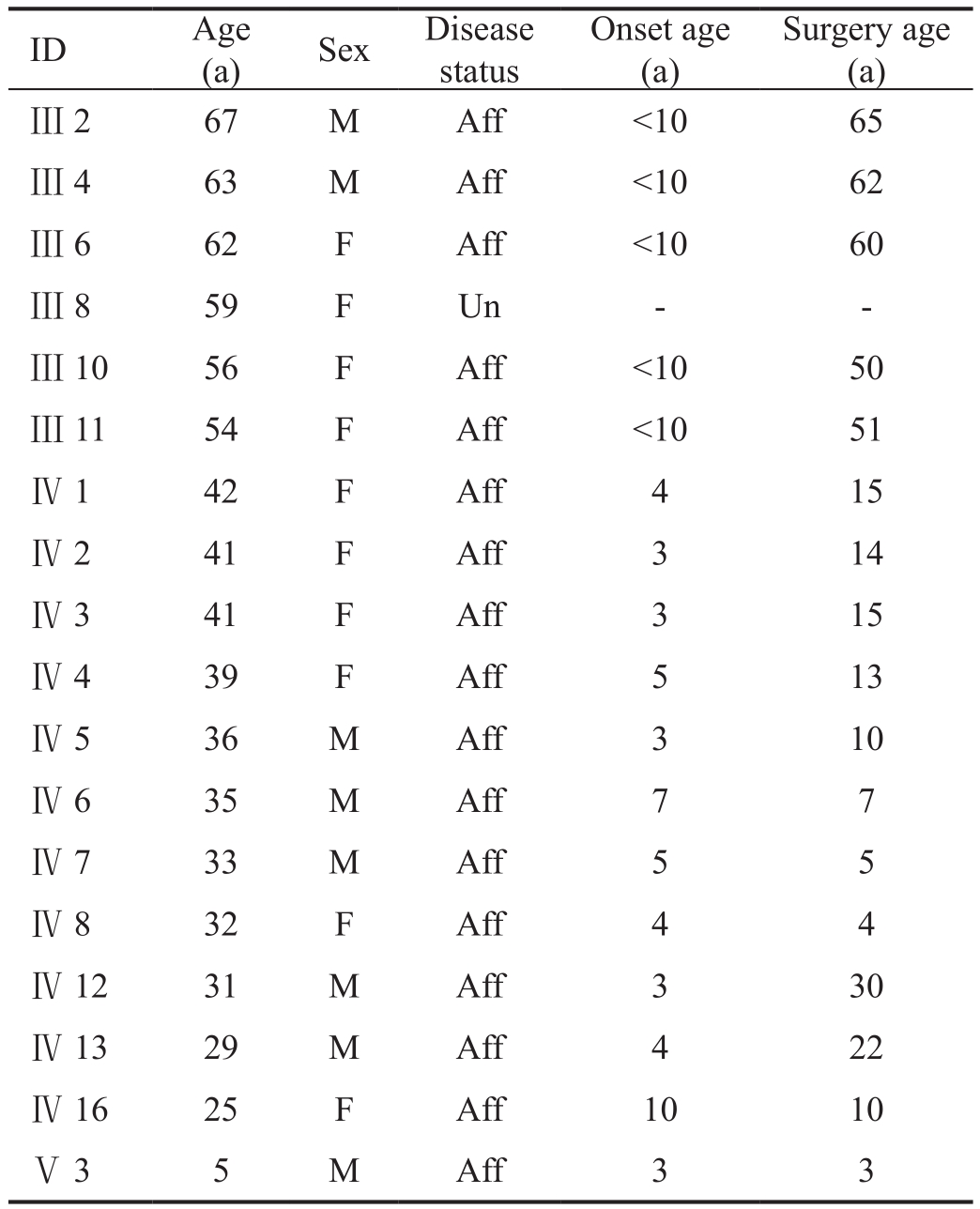

Clinical Examinations and Pedigree Analysis The proband presented to the eye clinic with nuclear cataracts. According to the traits, a pedigree was created to represent the status of cataracts in each family member (Figure 1A and Table 1). The proband’s great-grandparents (I-1 and I-2) died without clearly diagnostic cataracts. However, generation I had three offspring(generation II). One male (II-1) and one female (II-3) are affected individuals while male II-2 is unaffected one. Female II-3 had 6 offspring. Two males (III-2, III-4) and 3 females(III-6, III-10 and III-11) are affected individuals, while one female III-8 is unaffected. The offspring of male III-2, III-4 and female III-6, III-10 are all affected (IV-1 to IV-8, IV-12 and IV-13). IV-12 is the proband. Female III-11 has two offspring, one is the unaffected male (IV-15), the other is the affected female(IV-16). IV-12 (proband) has two unaffected offspring (male V-1 and female V-2), while IV-13 has two affected offspring(male V-3 and female V-4). These results suggested that this pedigree was regulated by the autosomal dominant trait. We collected the blood samples from 7 participants in this family for DNA extraction. Five affected individuals [including proband (IV-12), III-2, III-4, III-6, and V-4] and 2 unaffected individuals (III-8, II-2) were subjected to the exon sequencing.

Identification of a Novel CX46 Frameshift Mutation(cx46fs400) in the Family To determine the genetic mutations that were associated with this cataract pedigree, the DNA samples from 5 cataract patients and 2 unaffected members were subjected to the exon sequencing. Eleven candidate genes(cryaa, cryab, crybb1, crybb2, crygc, crygd, CX46, CX50,Hsf4, Mip and Pitx3), in which the mutations are known to be associated a variety of autosomal dominant cataracts, were chosen as screening targets in this study. The sequencing results indicated that in addition to four SNPs (rs11603779,rs2330991, rs2330992 and rs4049504) in cryab and crybb2,a cytosine insertion at position 1195 of the CX46 cDNA(c.1194_1195ins C) was observed in all tested cataract patients but not in the unaffected family members e.g. III-8 and II-2(Figure 1B), nor in the 100 normal control DNA samples (data not shown).

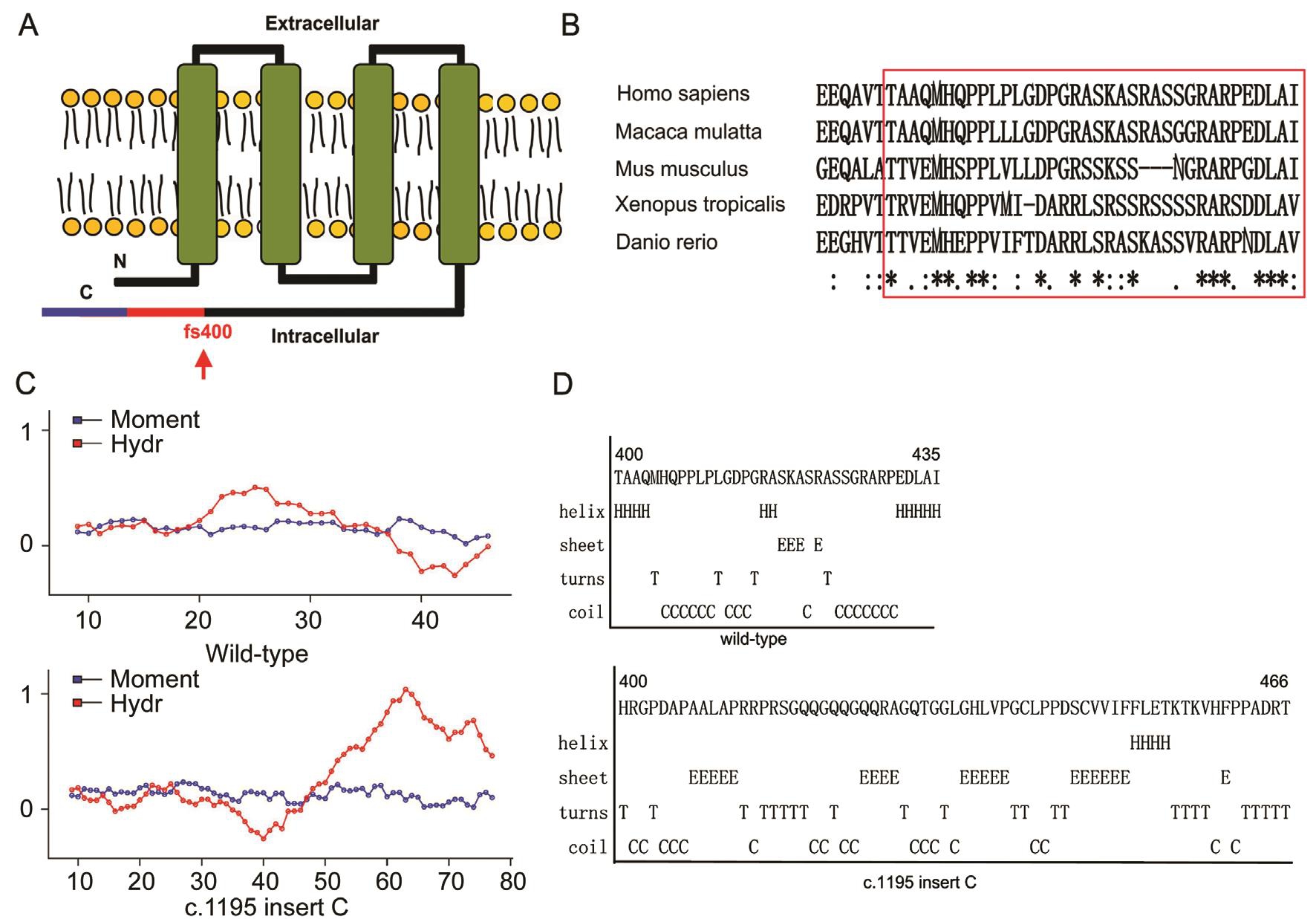

Structural Property of the CX46 Mutant by in Silico Analysis CX46 protein consists of 435 amino acids. This cytosine insert caused amino acid frameshift in the CX46 protein at threonine 400 (cx46fs400) resulting in 31 more amino acids added to CX46’s C-terminal tail compared to the parental one (Figure 2A, 2D). To characterize the affected amino acids at the C-terminus, we blasted the wild type C-terminal amino acids of human to that of macaque, mouse,xenopus and zebraf i sh, and found that the amino acids in the C-terminus of CX46 were highly conserved among the species(Figure 2B). However, the frameshift mutation completely changed the homology. Hydrophobicity analysis using the Heli-Quest online tool suggested that the extra amino acids derived from frameshift were more hydrophobic than wild type (Figure 2C). Analysis of the protein secondary structure using the Garnier Peptide Structure Tool indicated that the CX46 mutant contained more β-sheets and turns than the wildtype protein. In contrast, the C-terminus of wild-type CX46 contained more helix-coil motifs compared to the mutant(Figure 2D). These data suggested that this frameshift mutant completely changed the biophysiological characteristics of CX46 intracellular domain.

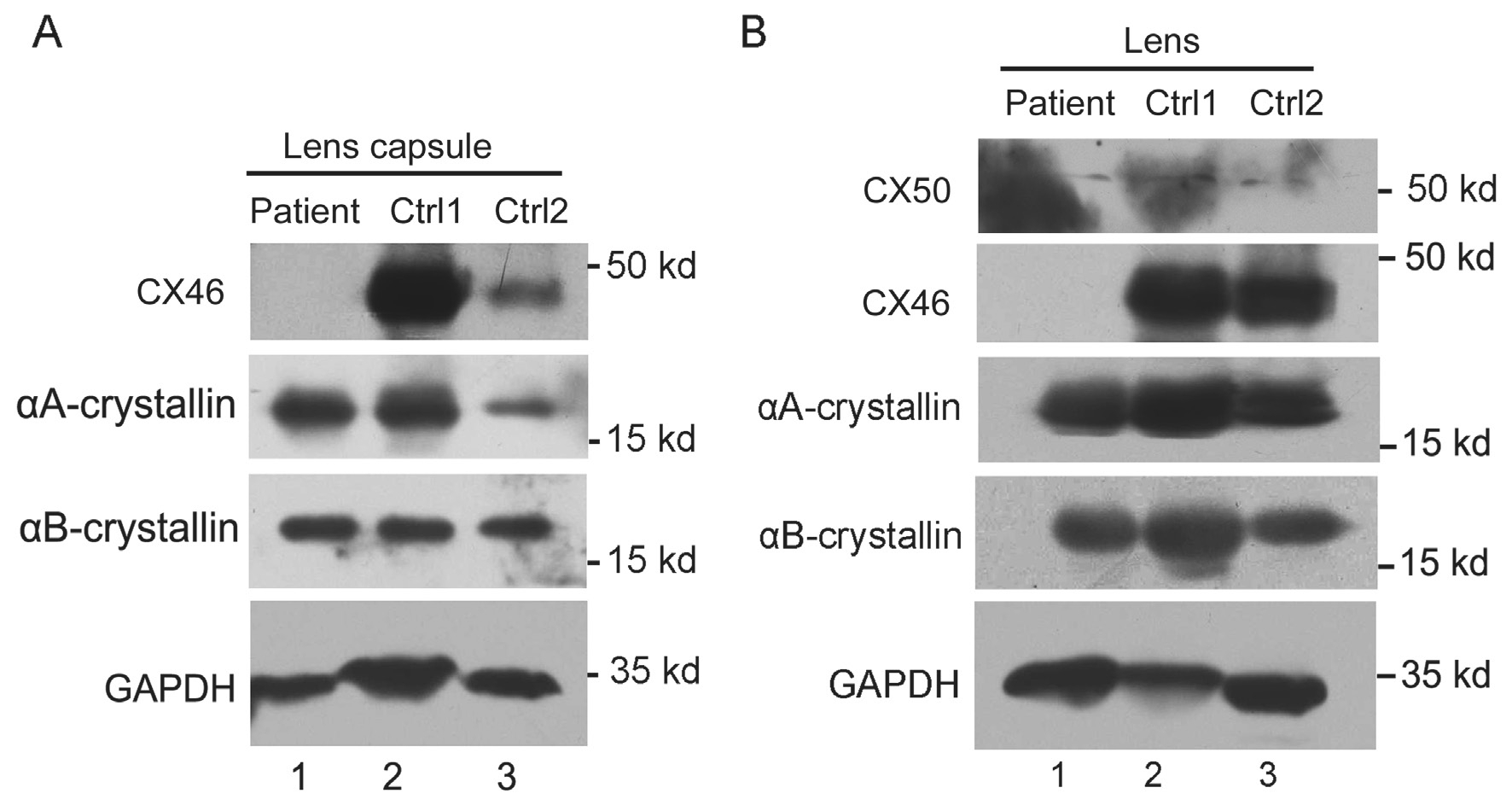

The Novel cx46fs400 Mutation Impairs CX46 Protein Expression in Lens Tissues To study whether cx46fs400 mutation affects CX46 protein expression, the expression level of the CX46 mutant protein in the proband’s lens tissue were immunoblotted. Lens tissues from two individuals with canonical age-matched cataracts were used as controls. As the data indicateed in Figure 3, CX46, which expressed in age-matched lens anterior epithelia and cataract fiber tissues(Figure 3A and 3B, lanes 2 and 3), was not detected in proband’s lens tissues (Figure 3A and 3B; lane 1). In contrast,CX50 expressed in the lens fi ber compartment of both proband and age-matched cataracts (Figure 3B). The alpha A-crystallins and alpha B-crystallins were detected in both anterior epithelia and fi ber compartments of proband and age-matched cataracts(Figure 3A and 3B; lanes 1, 2 and 3). GAPDH was used for the protein loading control. Our results suggested that this novel frameshift mutation could impair CX46 protein expression.

DISCUSSION

In this paper, we found that a novel cytosine insertion mutation at site 1195 in Gja3cDNA, which caused a frameshift mutation in the C-terminal intracellular domain of the CX46 protein(cx46fs400), was the potential pathogenetic factor that was associated with this Chinese cataract family. This cx46fs400 mutation, which caused addition of 31 amino acids more to and amino acid substitution in CX46 intracellular C-terminal domain, may impair CX46 protein’s structure and protein expression. Our results suggested that this novel cx46fs400 frameshift mutation should be closely related to the hereditary autosome dominant cataracts in this pedigree.

Genetic mutations in the CX46 gene are associated with various types of hereditary autosomal dominant cataracts.The 23 missense mutations, which are mostly located in the N-terminal or transmembrane domains, were reported to be associated with hereditary autosomal dominant cataracts[16].Two frameshift mutations e.g. cx46fs380 and cx46fs397,which occured at the C-terminal tail of the CX46 protein, had been associated with autosomal dominant zonular pulverulent cataract[14,17]. Microinjection of cx46fs380 into Xenopus oocytes abrogated its membrane localization and disrupted its ability to form functional hemi-gap junction channels[18]. Knocking-in of cx46fs380 in mouse caused anterior nuclear cataracts with remarkable reduction in not only CX46 protein expression but also CX50 and alpha crystalline expression. Our data in Figure 1 revealed that a novel cytosine insert mutation in CX46 gene was observed in all the 5 tested affected individuals, but not in the 2 unaffected ones. Genetic-link analysis suggested that this novel frameshift cx46fs400 was associated with autosome heredity cataracts (Figure 1). Moreover, cx46fs400 protein was not detected in proband’s anterior epithelia and fi ber tissue compartments (Figure 3), suggesting this frameshift mutation in the C-terminus could be involved in the regulation of CX46 protein expression. However, unlike cx46fs380 mutation,cx46fs400 mutation had no regulatory effect on the expression of CX50 and alpha crystallins in the proband lens tissues(Figure 3). We were currently investigating whether knock-in of cx46fs400 affected the expression of CX50 and crystalline proteins in zebraf i sh model.

The carboxyl-terminal domain (223-435 aa) of CXs, which consists of the intracellular tail, plays an essential role in cellular signal transduction by interacting with other molecules.The C-terminal tail of CX43 alone is suff i cient to induce cell motility[19]. S-nitrosylation of cysteine in C terminus of CX46 is involved in CX46 hemichannel function[20]. Moreover,CX46 or its family member CX50 is regulated by post-translational phosphorylation. Wang and Schey[21] reported that there were 18 and 9 phosphorylation-regulated amino acids in bovine lens CX46 and CX50, respectively. Most of them were located at the C-terminal tail. Our sequence analysis results indicated that the amino acids normally phosphorylated in the wild type protein were completely changed in the cx46fs400 mutant (data not shown), which revealed the dis-regulation of phosphorylation in the cx46fs400 mutant. Previous studies have demonstrated that the C-terminal domain of lens CX46 and CX50 can interact with intercellular tight junction protein ZO-1[22-23]. Their interaction may be involved in gap junction turnover. Whether cx46fs400 mutant affect its association to OZ-1 is still under investigation in our lab.

Protein turnover of CXs is mainly regulated by two pathways,ubiquitin-proteasome and autophagy-lysosome pathways. It is reported that the CX43 C-terminal tail can interact with CIP75, an ubiquitin-associated (UBA) domain protein, facilitating CX43 degradation by the proteasome[24-25]. The CX50 frameshift mutant, which is associated with congenital recessive cataracts,was found to be degraded by the ERAD pathway and the proteasome[26]. Moreover, it was reported that the CX50 protein could be turned over when the cells were starved for 4h to induce autophagy. The CX50 protein was found to be co-localized with autophagic marker LC3, and its degradation could be inhibited by lysosomal inhibitor chloroquine. CX50/P88S mutant, which is associated with cataracts, was found to be degraded in the lysosome[27-28]. Our data in Figure 3 suggested that this novel cx46fs400 mutant was able to impair CX46 protein expression. Whether this novel mutant affects CX46 protein stability through ubiquitin-proteasome or lysosome pathways are still under studying in our lab.

We have identified a novel frameshift mutation (cx46fs400)in CX46 protein that is associated with hereditary autosomal dominant cataracts in a Chinese family. This mutation may inactivate CX46 channel function by impairing its protein expression.

ACKNOWLEDGEMENTS

We thank Mu-Han Hu, a Ph.D/MD program student,University of Alabama at Birmingham, Birmingham, AL, USA for English Editing.

Foundations: Supported by the National Natural Science Foundation of China (No.81570825; No.81400387; No.U1404810);Henan Education Committee Foundations for Talent Innovative Technology (No.14IRTSTHN019).

Conf l icts of Interest: Cui XK, None; Zhu KK, None; Zhou Z, None; Wan SM, None; Dong Y, None; Wang XC, None;Li J, None; Zhang J, None; Mu HM, None; Qin L, None;Hu YZ, None.

REFERENCES

1 Shiels A, Hejtmancik JF. Genetics of human cataract. Clin Genet 2013;84(2):120-127.

2 Hejtmancik JF. Congenital cataracts and their molecular genetics. Semin Cell Dev Biol 2008;19(2):134-149.

3 Kumar NM, Gilula NB. The gap junction communication channel. Cell 1996;84(3):381-388.

4 Sosinsky GE, Nicholson BJ. Structural organization of gap junction channels. Biochim Biophys Acta 2005;1711(2):99-125.

5 Ebihara L, Tong JJ, Vertel B, White TW, Chen TL. Properties of connexin 46 hemichannels in dissociated lens fiber cells. Invest Ophthalmol Vis Sci 2011;52(2):882-889.

6 Beyer EC, Berthoud VM. Connexin hemichannels in the lens. Front Physiol 2014;5:20.

7 Mandal A, Shahidullah M, Delamere NA. Calcium entry via connexin hemichannels in lens epithelium. Exp Eye Res 2015;132:52-58.

8 Iovine MK, Gumpert AM, Falk MM, Mendelson TC. Cx23, a connexin with only four extracellular-loop cysteines, forms functional gap junction channels and hemichannels. FEBS Lett 2008;582(2):165-170.

9 Dunia I, Cibert C, Gong X, Xia CH, Recouvreur M, Levy E, Kumar N, Bloemendal H, Benedetti EL. Structural and immunocytochemical alterations in eye lens fi ber cells from Cx46 and Cx50 knockout mice. Eur J Cell Biol 2006;85(8):729-752.

10 Xia CH, Cheng C, Huang Q, Cheung D, Li L, Dunia I, Benedetti LE, Horwitz J, Gong X. Absence of alpha3 (Cx46) and alpha8 (Cx50)connexins leads to cataracts by affecting lens inner fi ber cells. Exp Eye Res 2006;83(3):688-696.

11 Yao K, Wang W, Zhu Y, Jin C, Shentu X, Jiang J, Zhang Y,Ni S. A novel GJA3 mutation associated with congenital nuclear pulverulent and posterior polar cataract in a Chinese family. Hum Mutat 2011;32(12):1367-1370.

12 Zhang L, Qu X, Su S, Guan L, Liu P. A novel mutation in GJA3 associated with congenital Coppock-like cataract in a large Chinese family. Mol Vis 2012;18:2114-2118.

13 Zhang X, Wang L, Wang J, Dong B, Li Y. Coralliform cataract caused by a novel connexin46 (GJA3) mutation in a Chinese family. Mol Vis 2012;18:203-210.

14 Mackay D, Ionides A, Kibar Z, Rouleau G, Berry V, Moore A, Shiels A, Bhattacharya S. Connexin46 mutations in autosomal dominant congenital cataract. Am J Hum Genet 1999;64(5):1357-1364.

15 Berthoud VM, Minogue PJ, Yu H, Snabb JI, Beyer EC.Connexin46fs380 causes progressive cataracts. Invest Ophthalmol Vis Sci 2014;55(10):6639-6648.

16 Beyer EC, Ebihara L, Berthoud VM. Connexin mutants and cataracts.Front Pharmacol 2013;4:43.

17 Zhou D, Ji H, Wei Z, Guo L, Li Y, Wang T, Zhu Y, Dong X, Wang Y, He L, Xing Q, Zhang L. A novel insertional mutation in the connexin 46 (gap junction alpha 3) gene associated with autosomal dominant congenital cataract in a Chinese family. Mol Vis 2013;19:789-795.

18 Pal JD, Liu X, Mackay D, Shiels A, Berthoud VM, Beyer EC,Ebihara L. Connexin46 mutations linked to congenital cataract show loss of gap junction channel function. Am J Physiol Cell Physiol 2000;279(3):C596-C602.

19 Crespin S, Bechberger J, Mesnil M, Naus CC, Sin WC. The carboxy-terminal tail of connexin43 gap junction protein is suff i cient to mediate cytoskeleton changes in human glioma cells. J Cell Biochem 2010;110(3):589-597.

20 Retamal MA, Yin S, Altenberg GA, Reuss L. Modulation of Cx46 hemichannels by nitric oxide. Am J Physiol Cell Physiol 2009;296(6):C1356-C1363.

21 Wang Z, Schey KL. Phosphorylation and truncation sites of bovine lens connexin 46 and connexin 50. Exp Eye Res 2009;89(6):898-904.

22 Nielsen PA, Baruch A, Shestopalov VI, Giepmans BN, Dunia I,Benedetti EL, Kumar NM. Lens connexins alpha3Cx46 and alpha8Cx50 interact with zonula occludens protein-1 (ZO-1). Mol Biol Cell 2003;14(6):2470-2481.

23 Chai Z, Goodenough DA, Paul DL. Cx50 requires an intact PDZ-binding motif and ZO-1 for the formation of functional intercellular channels. Mol Biol Cell 2011;22(23):4503-4512.

24 Su V, Nakagawa R, Koval M, Lau AF. Ubiquitin-independent proteasomal degradation of endoplasmic reticulum-localized connexin43 mediated by CIP75. J Biol Chem 2010;285(52):40979-40990.

25 Kopanic JL, Schlingmann B, Koval M, Lau AF, Sorgen PL, Su VF.Degradation of gap junction connexins is regulated by the interaction with Cx43-interacting protein of 75 kDa (CIP75). Biochem J 2015;466(3):571-585.

26 Minogue PJ, Beyer EC, Berthoud VM. A connexin50 mutant, CX50fs,that causes cataracts is unstable, but is rescued by a proteasomal inhibitor.J Biol Chem 2013;288(28):20427-20434.

27 Lichtenstein A, Minogue PJ, Beyer EC, Berthoud VM. Autophagy: a pathway that contributes to connexin degradation. J Cell Sci 2011;124(Pt 6):910-920.

28 Iyyathurai J, Decuypere JP, Leybaert L, D'Hondt C, Bultynck G.Connexins: substrates and regulators of autophagy. BMC Cell Biol 2016;17(Suppl 1):20.
