INTRODUCTION
Diabetic retinopathy (DR) is one of the leading causes of blindness in developed countries, and has been reported to account for 5% of blindness worldwide[1]. Although there are many causes of vision loss caused by DR such as proliferative DR with retinal detachment and vitreous hemorrhage, diabetic macular edema (DME) is the leading cause of vision loss in people with diabetes mellitus[2-4].
Pretreatment foveal thickness, determined using optic coherence tomography (OCT) by measuring the central subfield foveal thickness (CSFT), has been reported to be a strong predictor of anatomical and functional outcomes in patients with DME treated with intravitreal anti-vascular endothelial growth factor(anti-VEGF) such as ranibizumab[5-6]. The magnitude of CSFT reduction during the first year, inseveral treatment regimens,has also been associated with a better visual acuity outcome[7-9].It is well documented that intravitreal anti-VEGF therapy is related to a reduction in foveal thickness in eyes with center involving DME. While the mean CSFT of non-diabetic individuals is approximately 270 µm regardless of gender,the mean CSFT of diabetic patients with minimal or without retinopathy is reported to range from 250 to 300 µm[10-12].
The aim of the current study is to compare the foveal thickness in eyes after successful treatment of DME with anti-VEGF therapy to the CSFT in eyes of normally sighted, non-diabetic healthy individuals with no known ocular disease. This information may be of great clinical interest for patients with a history of DME treated with anti-VEGF therapy, and may provide insight into whether successful treatment of DME with anti-VEGF results in altered retinal morphology.
SUBJECTS AND METHODS
The study protocol was approved by the Institutional Review Board (IRB) of the Ribeirão Preto School of Medicine, University of São Paulo (the Hospital das Clínicas da Faculdade de Medicina de Ribeirão Preto), Brazil. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards. Informed consent was obtained from all individual participants included in the study. Participants were enrolled as part of a previous study cohort[13]. The DME patient population consisted of individuals with mild DR and chronic DME (mean duration of decreased visual acuity due to DME for 38mo).
Inclusion criteria consisted of center-involved DME with central subfield thickness ＞300 mm on spectral-domain optical coherence tomography (SD-OCT), despite at least one session of macular laser photocoagulation performed at least 3mo previously, and best-corrected visual acuity (BCVA)measurement between 0.3 logMAR (Snellen equivalent: 20/40)and 1.6 logMAR (Snellen equivalent: 20/800) and a signed informed consent[13].
Exclusion criteria was occurrence of macular traction as assessed by SD-OCT, proliferative DR in need of panretinal photocoagulation, macular capillary dropout on fluorescein angiography, history of glaucoma, other ocular condition that may affect macular edema or alter visual acuity during the study period and systemic corticosteroid therapy[13].
The primary outcome measure in the current study was CSFT as measured by SD-OCT (Heidelberg Engineering,Heidelberg, Germany). Macular volume was also reported.Intravitreal injections of either bevacizumab (1.5 mg/0.06 mL;F. Hoffmann-La Roche, Ltd., Switzerland) or ranibizumab(0.5 mg/0.05 mL; Novartis Pharma, Switzerland) for treatment of DME were performed monthly until CSFT was ＜275 µm within one-year[13]. Masked follow up examinations were scheduled monthly with complete ophthalmological assessment of BCVA, slit-lamp examination and macular evaluation by SD-OCT. Patients received focal/grid laser photocoagulation in case of no improvement in CSFT and/or visual acuity after consecutive 3 injections.
The 42 eyes included in the current study (out of the 60 eyes from the original study[13]) demonstrated resolution of DME with recovery of the foveal depression within one-year of anti-VEGF treatment. The foveal thickness in this subgroup of eyes was compared with eyes of age/gender/race-matched normally sighted non-diabetic healthy individuals, with no known ocular disease.
OCT evaluation was performed in one eye of all patients of both groups using identical parameters: retinal thickness measurements were acquired using a standard 20×15 degrees raster scan protocol consisting of 19 horizontal sections(each computed out of 25 frames) with 240 µm between each horizontal scan, covering a square of 20×15 degrees on the retina and centered on the foveal region. Central subfield values were calculated automatically as the average thickness of a central macular region 1000 μm in diameter centered on the patient’s fovea by built-in Heidelberg software using retinal map analysis, while macular volume was determined within the 6 mm (approximately) grid.
Statistical Analysis CSFT data from eyes treated for DME and from control eyes were compared using a paired t-test. Analysis of covariance was performed to investigate correlations between macular thickness measurements and post-treatment visual acuity. Statistical analyses were performed using JMP 13.0 (SAS Institute Inc., Cary, North Carolina, USA) software.
RESULTS
Meanage was 65.5±1.4y and 65.1±1.4y for healthy individuals and DME patients respectively, gender (male/female for healthy individuals 15/27 and DME 17/25) and race (Black/Hispanic/Caucasian for non-diabetic healthy individuals 6/3/33 and DME 6/4/32) showed similar distributions, and were individually matched for the foveal thickness comparison.
At baseline, 33 eyes (79%) showed diffuse macular edema,def i ned as thickened areas of lower ref l ectivity in the inner and/or outer retina without predominance of cystoid spaces, while 9 (21%), did not show this pattern and could be classified ascystoid macular edema.
Number of injections in the bevacizumab group was on average 9.84±0.55 and 7.67±0.60 for ranibizumab. Each eye studied in the DME group received at least one session of macular laser photocoagulation, performed at least 3mo before the first initial intravitreal injection of either bevacizumab or ranibizumab. Detailed demographic data of the study population are summarized in Table 1. Mean baseline BCVA(logMAR) was 0.59±0.04 and 0.32±0.03 (P＜0.001) after treatment and resolution of DME, with all, but 3 eyes, showing BCVA improvement.
The mean CSFT in DME eyes was 422.0±20.0 µm before and 241.6±4.6 µm after treatment with resolution of the DME and recovery of the foveal depression within the study period of one-year (P＜0.001). Mean CSFT in control eyes was 272.0±3.4 µm and mean CSFT in DME eyes after anti-VEGF therapy with resolution of DME and foveal depression recovery was 30.4±5.7 µm lower to the mean CSFT in control eyes (P＜0.001). Of the 42 DME eyes, 33 (79%) had a lower CSFT than the matched control eyes (Figures 1, 2).

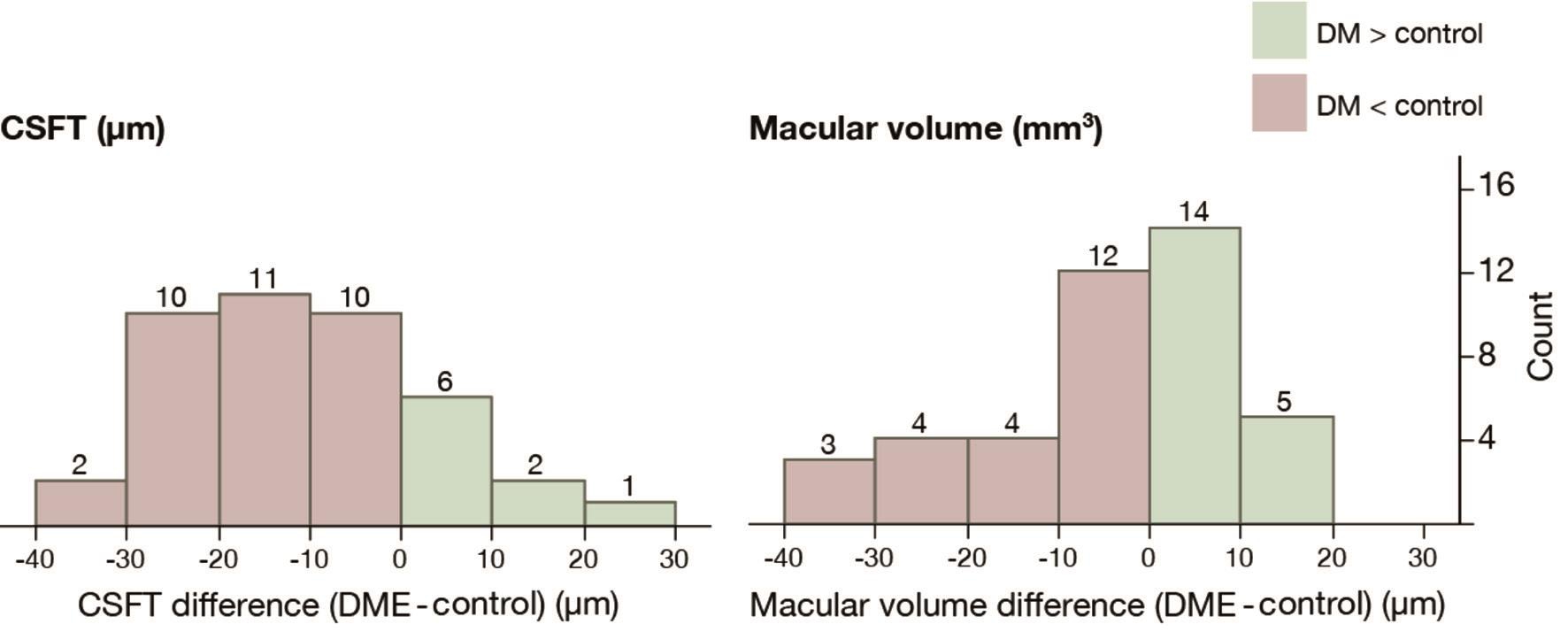

Figure 1 Distribution of the difference (DME-control) of CSFT and macular volume found in DME (after successful anti-VEGF therapy) and matched control eyes Red barshighlight DME eyes with a reduced CSFT/macular volume compared to their age/gender/racematched control (n=23 for macular volume; n=33 for CSFT), while the green bars represent eyes with a higher CSFT/macular volume than the matched control (n=19 for macular volume; n=9 for CSFT).

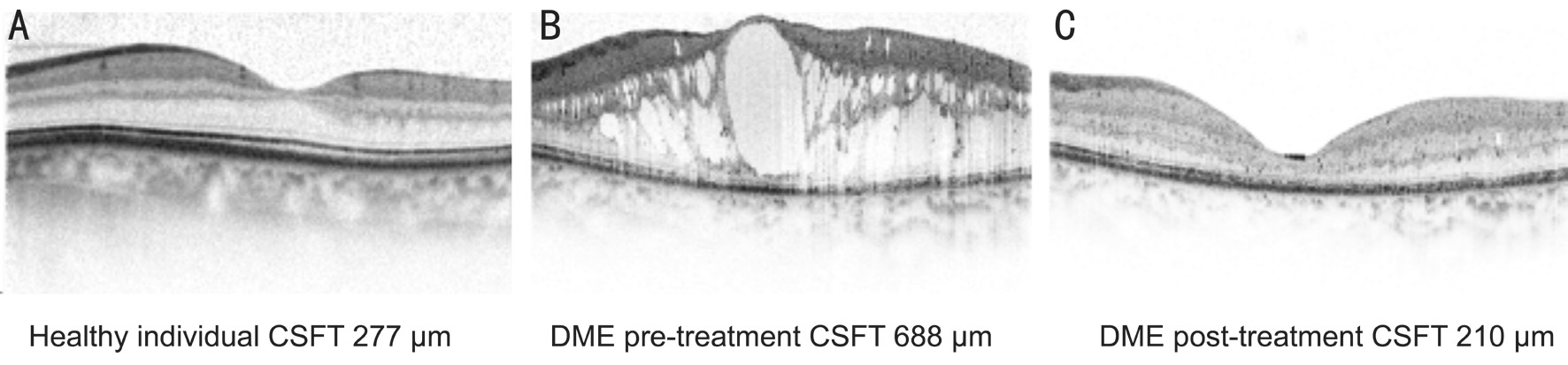

Figure 2 Example of a normally sighted non-diabetic healthy individual with no known ocular disease (A); a patient suffering from DME before treatment (B) and after successful anti-VEGF treatment with resolution of the DME and recovery of a foveal depression (C).
Total macular volume showed comparable results to CSFT,but with lower differences between groups. Mean control macular volume was 8.5±0.4 mm3 and for DME was 8.2±1.0 mm3(P=0.0267). Weak, but statistically significant correlation was found between baseline CSFT and total macular volume (r=0.37, P=0.0151), but no correlation was observed between CSFT and macular volume after treatment (r=0.088,P=0.4873).
Analysis of covariance was performed to investigate eventual multivariate correlations between BCVA, CSFT and macular volume measured at baseline, and post-treatment. Baseline BCVA showed significant effect on final BCVA (P＜0.001),clearly indicating that patients with good baseline BCVA tend to show better visual acuity after treatment.
On the other side, CSFT (P=0.6903) and macular volume(P=0.4874) at baseline, or CSFT (P=0.9856) and macular volume (P=0.1412) after treatment, showed no statistically effect on one-year BCVA. Figure 3 shows analysis leverage residuals for BCVA and CSFT at baseline and after treatment.Moreover, no significant effect was observed for DME classif i cation (diffuse/cystoid) on one-year BCVA (P=0.1054),or CSFT (P=0.2321).

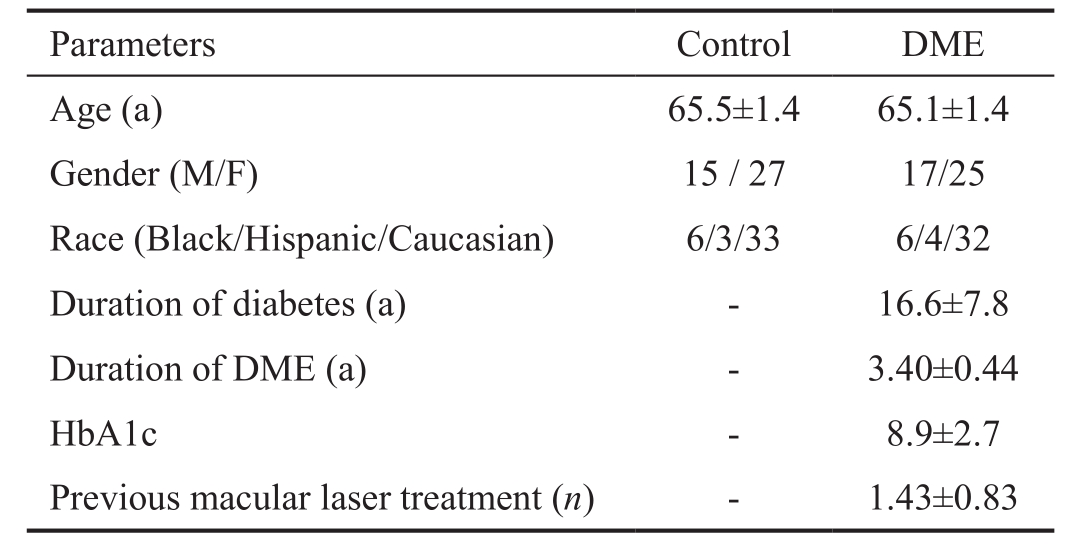

Table 1 Demographic data
HbA1c: Glycosylated hemoglobin A1c; DME: Diabetic macular edema.
DISCUSSION
In the present study, CSFT in DME eyes after anti-VEGF treatment, with resolution of DME and complete foveal depression recovery, was found significantly lower than the in CSFT in control eyes of normally sighted non-diabetic healthy individuals with no known ocular disease. Our results are consistent with recent studies, which demonstrated good reproducibility and repeatability of retinal thickness measurements using SD-OCT in healthy and pathological eyes[14-15].

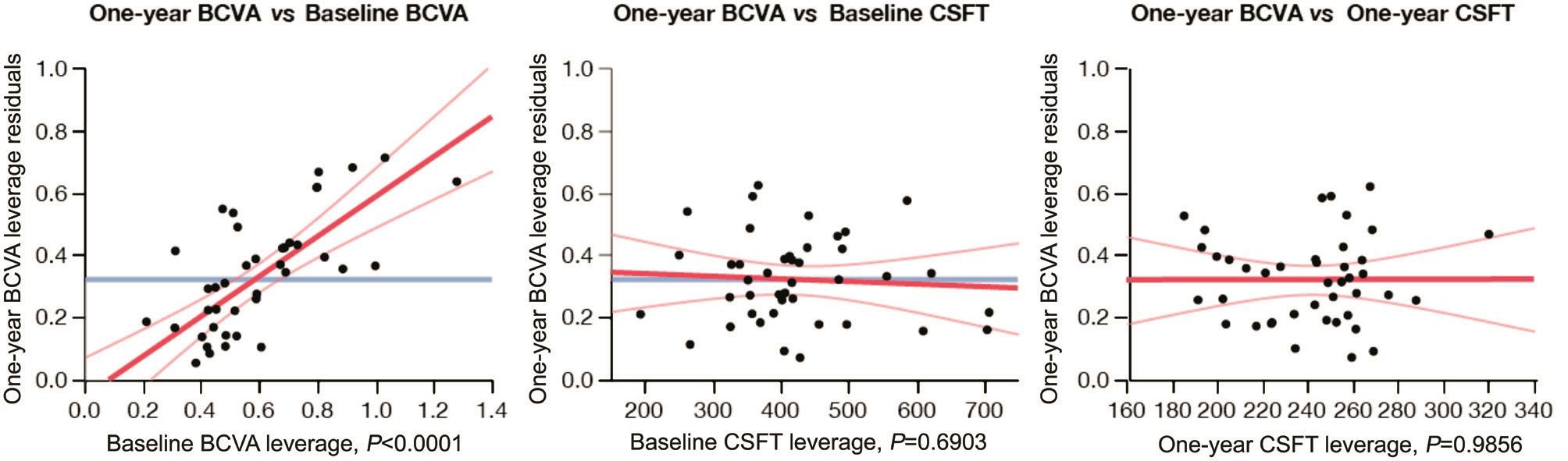

Figure 3 Leverage residuals plots from the covariance analysis used to investigate multivariate correlations between BCVA, CSFT measured before and after treatment.
Our reported mean CSFT in normally sighted non-diabetic healthy individuals with no known ocular disease (272.0±3.4 µm)is comparable to that reported in a previous study by Grover et al[12] who studied normative data for macular thickness,including CSFT (270.2±22.5 µm). Interestingly, a very similar mean CSFT has been reported in eyes with DR without macular edema (270±24 µm)[11]. However, in contrast to the CSFT in non-diabetic healthy individuals, the mean CSFT in our patients with a history of DME treated with anti-VEGF therapy was signif i cantly lower (241.6±4.6 µm).
Recent data from clinical trials such as LUCIDATE and RESTORE, and from the Diabetic Retinopathy Clinical Research (DRCR) network studies, that assessed functional and structural effects of ranibizumab, bevacizumab or af l ibercept in eyes with DME all showed a signif i cant reduction of CSFT in DME after anti-VEGF treatment[16-18]. However, data on CSFT after anti-VEGF treatment in these clinical trials always included patients with residual edema and, therefore, cannot be used for the assessment of post-treatment CSFT in DME.
It has been suggested that the leading cause of retinal thinning in the macula of eyes treated previously for DME may be due to focal/grid laser therapy and/or the effects of ischemia[19]. In fact, the current study also showed a significantly decreased CSFT in DME eyes successfully treated with anti-VEGF therapy, and our patient population received at least one session of macular laser photocoagulation at least 3mo prior to the fi rst intravitreal injection. However, a recent study using subthreshold laser treatment as opposed to regular continuous laser even demonstrated a preservation of the photoreceptor layer and CSFT[20].
We found no significant effect of CSFT or macular volume measured on baseline, during follow-up on one-year CSFT or visual acuity, indicating that the extent of macular thickness found before, during follow-up or after treatment should not be considered alone as a predictor of functional recovery after anti-VEGF treatment, which is certainly multifactorial,depending on cellular organization and function in all retinal layers. Furthermore, the DME classif i cation at baseline (diffuse or cystoid) did not show significant effect on final BCVA or CSFT. This should be carefully interpreted because we did not design this study to investigate the effect of DME classif i cation on macular thickness or visual acuity after treatment, which is certainly explain the larger number of diffuse cases in our sample (33 out of 42).
To our knowledge, and based on a computerized literature search of the MEDLINE database, the present study is the fi rst to demonstrate that CSFT after successful anti-VEGF treatment of DME may be signif i cantly decreased compared to the CSFT in normally sighted eyes. Whether this retinal atrophy may be attributed to the disease time course or intravitreal anti-VEGF therapy or laser therapy remains to be elucidated. Considering the actual scenario, in which intravitreal anti-VEGF therapy represents the current standard of care for DME[21], further investigation into the reasons for this retinal atrophy using fluoresce in angiography and assessment of central retinal function is warranted.
ACKNOWLEDGEMENTS
Foundations: Supported by Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP) and FAEPA (Fundação Apoioao Ensino Pesquisa e Assistência, HCFMRP-USP), (No.2010/013368); the initial trial was registered at clinical trials.gov (No. NCT01487629).
Conf l icts of Interest: Willmann G, None; Nepomuceno AB,None; Messias K, None; Barroso L, None; Scott IU, None;Messias A, None; Jorge R, None.
REFERENCES
1 Resnikoff S, Pascolini D, Etya'ale D, Kocur I, Pararajasegaram R,Pokharel GP, Mariotti SP. Global data on visual impairment in the year 2002. Bull World Health Organ 2004;82(11):844-851.
2 Moss SE, Klein R, Klein BE. The 14-year incidence of visual loss in a diabetic population. Ophthalmology 1998;105(6):998-1003.
3 Ciulla TA, Amador AG, Zinman B. Diabetic retinopathy and diabetic macular edema: pathophysiology, screening, and novel therapies. Diabetes Care 2003;26(9):2653-2664.
4 Lopes de Faria JM, Jalkh AE, Trempe CL, McMeel JW. Diabetic macular edema: risk factors and concomitants. Acta Ophthalmol Scand 1999;77(2):170-175.
5 Bressler SB, Qin H, Beck RW, Chalam KV, Kim JE, Melia M, Wells JA 3rd; Diabetic Retinopathy Clinical Research Network. Factors associated with changes in visual acuity and central subf i eld thickness at 1 year after treatment for diabetic macular edema with ranibizumab. Arch Ophthalmol 2012;130(9):1153-1161.
6 Sophie R, Lu N, Campochiaro PA. Predictors of functional and anatomic outcomes in patients with diabetic macular edema treated with ranibizumab. Ophthalmology 2015;122(7):1395-1401.
7 Aiello LP, Edwards AR, Beck RW, Bressler NM, Davis MD, Ferris F,Glassman AR, Ip MS, Miller KM; Diabetic Retinopathy Clinical Research Network. Factors associated with improvement and worsening of visual acuity 2 years after focal/grid photocoagulation for diabetic macular edema. Ophthalmology 2010;117(5):946-953.
8 Nguyen QD, Brown DM, Marcus DM, Boyer DS, Patel S, Feiner L,Gibson A, Sy J, Rundle AC, Hopkins JJ, Rubio RG, Ehrlich JS; RISE and RIDE Research Group. Ranibizumab for diabetic macular edema: results from 2 phase III randomized trials: RISE and RIDE. Ophthalmology 2012;119(4):789-801.
9 Mushtaq B, Crosby NJ, Dimopoulos AT, Lip PL, Stavrou P, El-Sherbiny S, Yang Y. Effect of initial retinal thickness on outcome of intravitreal bevacizumab therapy for diabetic macular edema. Clin Ophthalmol 2014;8:807-812.
10 Goebel W, Kretzchmar-Gross T. Retinal thickness in diabetic retinopathy: a study using optical coherence tomography (OCT). Retina 2002;22(6):759-767.
11 Chalam KV, Bressler SB, Edwards AR, Berger BB, Bressler NM,Glassman AR, Grover S, Gupta SK, Nielsen JS; Diabetic Retinopathy Clinical Research Network. Retinal thickness in people with diabetes and minimal or no diabetic retinopathy: Heidelberg Spectralis optical coherence tomography. Invest Ophthalmol Vis Sci 2012;53(13):8154-8161.
12 Grover S, Murthy RK, Brar VS, Chalam KV. Normative data for macular thickness by high-def i nition spectral-domain optical coherence tomography (spectralis). Am J Ophthalmol 2009;148(2):266-271.
13 Nepomuceno AB, Takaki E, Paes de Almeida FP, Peroni R, Cardillo JA, Siqueira RC, Scott IU, Messias A, Jorge R. A prospective randomized trial of intravitreal bevacizumab versus ranibizumab for the management of diabetic macular edema. Am J Ophthalmol 2013;156(3):502-510.
14 Menke MN, Dabov S, Knecht P, Sturm V. Reproducibility of retinal thickness measurements in healthy subjects using spectralis optical coherence tomography. Am J Ophthalmol 2009;147(3):467-472.
15 Fiore T, Androudi S, Iaccheri B, Lupidi M, Giansanti F, Fruttini D,Biondi L, Cagini C. Repeatability and reproducibility of retinal thickness measurements in diabetic patients with spectral domain optical coherence tomography. Curr Eye Res 2013;38(6):674-679.
16 Comyn O, Sivaprasad S, Peto T, Neveu MM, Holder GE, Xing W,Bunce CV, Patel PJ, Egan CA, Bainbridge JW, Hykin PG. A randomized trial to assess functional and structural effects of ranibizumab versus laser in diabetic macular edema (the LUCIDATE study). Am J Ophthalmol 2014;157(5):960-970.
17 Mitchell P, Bandello F, Schmidt-Erfurth U, Lang GE, Massin P, Schlingemann RO, Sutter F, Simader C, Burian G, Gerstner O,Weichselberger A; RESTORE study group. The RESTORE study:ranibizumab monotherapy or combined with laser versus laser monotherapy for diabetic macular edema. Ophthalmology 2011;118(4):615-625.
18 Wells JA, Glassman AR, Ayala AR, et al. Af l ibercept, bevacizumab,or ranibizumab for diabetic macular edema. N Engl J Med 2015;372(13):1193-1203.
19 Lovestam-Adrian M, Agardh E. Photocoagulation of diabetic macular oedema-complications and visual outcome. Acta ophthalmol Scand 2000;78(6):667-671.
20 Soiberman U, Goldstein M, Pianka P, Loewenstein A, Goldenberg D. Preservation of the photoreceptor layer following subthreshold laser treatment for diabetic macular edema as demonstrated by SD-OCT. Invest Ophthalmol Vis Sci 2014;55(5):3054-3059.
21 Schmidt-Erfurth U, Lang GE, Holz FG, Schlingemann RO, Lanzetta P, Massin P, Gerstner O, Bouazza AS, Shen H, Osborne A, Mitchell P; RESTORE Extension Study Group. Three-year outcomes of individualized ranibizumab treatment in patients with diabetic macular edema: The RESTORE extension study. Ophthalmology 2014;121(5):1045-1053.
