INTRODUCTION
The cornea is a soft tissue at the front of the eye that has the principal function of transmitting and refracting light rays[1]. The cornea represents approximately 70% of the total refractive power of the eye[2], and its transparency is essential for visual perception[3]. Accordingly, corneal disease or injury results in the loss of vision, which impacts millions of patients. In particular, the cornea constitutes a connective tissue comprising cells and stromal extracellular matrix (ECM)that relies on the synergistic cooperation of many different components of the ECM to precisely transmit and refract visual information. In turn, the ECM consists of organized lamellae composed of tightly distributed fi brils[4]. The regular packing of these small diameter collagen fi brils with a highly ordered hierarchical organisation leads to the maintenance of corneal shape and curvature[5]. Notably, an alternative conformation of the collagen fibrils caused by damage has been shown to result in altered corneal transparency and physical properties[6].Therefore, a goal of this review was to examine the formation of the corneal collagen matrix. In addition, at the present time,no clear guidelines are available for examining the status or role of corneal fi brils in the diagnosis of corneal pathologies.Accordingly, we also reviewed the pathophysiologic functions of corneal fibrils to provide a better understanding of their possible roles as a contributing factor and/or biomarker for corneal matrix pathologies.
COMPOSITION OF CORNEAL COLLAGEN FIBRILS
Corneal collagen fibrils serve as the basal component of the corneal matrix and play a role in the morphology and pathology of corneal disease. In turn, cellular interactions with the ECM mediate biological processes including developmental morphogenesis and wound healing. As cells reside within the three-dimensional (3-D) ECM in vivo, matrix structure and dimensionality have been shown to impact cell morphology,protein organization, and mechanical behavior[7]. Organization of the corneal stroma matrix involves molecules such as type V collagen, fibril-associated collagens with interrupted triple helixes, and small leucine-rich proteoglycans[2]. Fibril-forming collagens constitute the predominant tensile load-bearing proteins in the corneal stroma and consist of self-assembling triple helical molecules that incorporate electron-dense particles and proteoglycans[8]. Fibrillar collagen fi brils are well organized and are produced to fi ll structures, adapting to their peripheral environment.
Cell-matrix interactions can help to modulate ECM remodeling to produce matrix architectures and maintain 3-D structures.The metabolism of collagen monomers maintains the balance[9].
In addition, the nonlinear mechanical behavior of the cornea is synchronized with the crimping morphology of collagen fi brils.Conversely, the aberrant microstructure of collagen fi brils has been shown to result in pathologic corneal transformations such as ectasia after laser-assisted in situ keratomileusis[10].The collagen fibers in the anterior cornea extend from the anterior limiting lamina, interfelting with deeper fibers to form bow spring-like structures that are necessary to control corneal shape and in the process of corneal pathology[11].A network of circumferentially oriented collagen fibrils in the periphery of the human cornea and an orthogonal arrangement of collagen fibrils in the central cornea are also present in the posterior stromal layer. This distribution pattern of collagen fibrils contributes to corneal biomechanical and curvature functions[12]. Collagen bundles in the corneal lamellae demonstrate a complex layout, merging and splitting within a single lamellar plane. The corneal collagens in the superf i cial and limbal cornea differ compared with those in the deep and central regions; specifically, the collagen bundles in the superficial layer were found to be smaller than those in the deep lamellae[13]. The corneal equivalent that was constructed with collagens was similar to the native cornea. The adherens junction proteins were expressed from the epithelial and endothelial layers, which hinted at the potency of cell junctions and the polarized morphology of these layers[14]. Furthermore,an increase in corneal fi bril diameter observed in the peripheral cornea may have arisen through reinforcement involving scleral collagen[15]. In sclerocornea, the level of type I collagen was found to be similar to that in normal cornea, whereas type III collagen was faint in both normal cornea and sclerocornea but strong in normal sclera. Thus, this change could potentially contribute to the abnormal fi bril assembly in sclerocornea[16]. In comparison, the immunophenotype of the corneal scars found in Peters anomaly and congenital glaucoma differs from that of normal cornea by the intensity of type I and type III collagen labelling[17]. In turn, the structural alterations exhibited by collagen XII and XIV null mice, which demonstrate delayed endothelial maturation, suggest that functional changes in endothelial function result in increased corneal thickness. The endothelial-stromal interactions suggest the involvement of a signal transduction pathway for signal transduction[18]. Type XII collagen isoforms constitute the surface component of type I collagen fi brils, which contribute to the stability of the fi brils in Bowman’s layer and the associated interfacial matrix that lies between Bowman's layer and the stroma proper[19].Notably, type XII collagen is overexpressed in permanent human and mouse corneal scars and may therefore represent a novel target to treat corneal scarring[1], although it should be noted that the structure of the cornea of different species differs because of the surrounding environment[20]. At a gross morphological level, the collagen fi bers and the collagen fi brilmaturating enzyme, lysyl oxidase, has also been shown to lead to dysregulation of corneal collagen fi bers[21] (Figure 1).

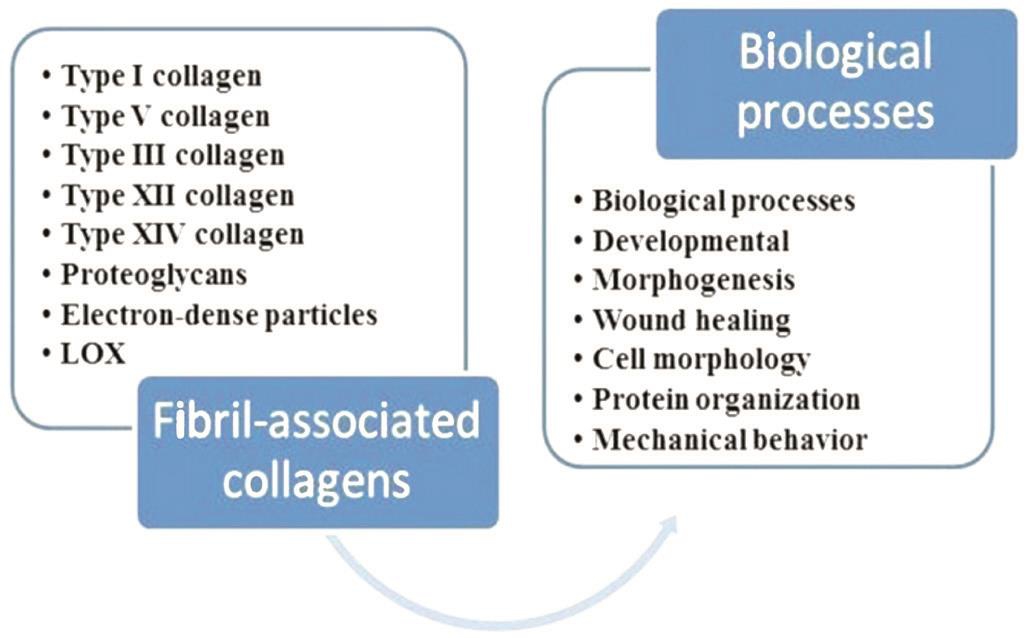

Figure 1 Collagen component analysis and relative functions.
DISTRIBUTION OF CORNEAL COLLAGENS
Corneal stromal collagen fibers (lamellae) are systematically ordered in a 3-D reticulum of lateral fibers that increases stromal stiffness and sustains corneal shape[22]. The corneal and scleral compaction at the corneal limbus by annular highly aligned collagen is necessary for corneal curvature and, hence, for the focusing power of the eye[23]. The corneal stroma primarily consists of a reticulum of fi brillar collagens that effects corneal optical and biomechanical actions. The use of X-ray diffraction to map the fibrillar organization,comprising the orientation and distribution of collagen lamellae in the corneal planum, has further demonstrated that this organization may vary owing to disease and surgical procedures[12]. In particular, collagen fibrils in the anterior part of the cornea are more isotropic, whereas collagen fi brils are directed toward the four major rectus muscles in the posterior part. The multitudinous orthogonal arrangement of collagen fi brils in the mid- and posterior parts of the corneal stroma helps to resist the strain from extraocular muscles.Simultaneously, the more isotropic arrangement of the anterior part of the cornea may play a key role in the biomechanics of the cornea by withstanding the intraocular pressure and corneal curvature[24-25]. Furthermore, collagen fi brils in the prepupillary cornea appear to be more compact than those in the peripheral cornea. The characteristic alignment of collagen fi brils can help to sustain the transparency and refractive index requirements of the cornea. Specifically, the high packing density of collagen fi brils is important for corneal strength and curvature in thinner areas of the cornea[26-28]. The regular arrangement of the collagen fi brils is critical for the transparency of the human cornea as is the maintenance of optimal hydration. Such arrangement is based on the presence of stromal proteoglycans and glycosaminoglycans[29]. Proteoglycans specif i cally regulate the organization of collagen fibrils in the corneal stroma via their protein core and highly anionic glycosaminoglycan side chains[30]. In addition, corneal collagen fi bril orientations along the superior-inferior and the nasal-temporal meridians are dispersed to reinforce the collagen lamellar structures, which sustain the corneal refractive properties[31]. However, changes in the modality and alignment of corneal collagen lamellae have been observed in some pathological states. In the normal human cornea, collagen lamellae near to Bowman's layer are narrow by a steep angle, whereas a decrease in width and angle relative to Bowman's layer can be observed with the approach toward Descemet’s membrane. Conversely, the characteristics of the collagen lamellae are altered in keratoconus, inducing abnormalities in corneal shape[32-33]. In addition, the space between collagen fi brils is decreased and collagen fi brils with a large anteroposterior diameter can be observed in macular corneal dystrophy type I, with the deep stroma being affected to a greater degree[34]. Corneal collagen fibril orientation is also altered consequent to some pathological changes and injuries. For example, corneal exposure to alkali induced the irregular arrangement of a large number of fibroblasts and collagen fi bers, combined with inf l ammatory cell inf i ltration[35].Furthermore, during the healing process of a penetrating rabbit corneal wound, collagen could be observed to exhibit a circular pattern around the wound. Subsequently, the orientation of corneal collagen fibrils during the healing process of penetrating wounds gradually became more normal[36] (Figure 2).

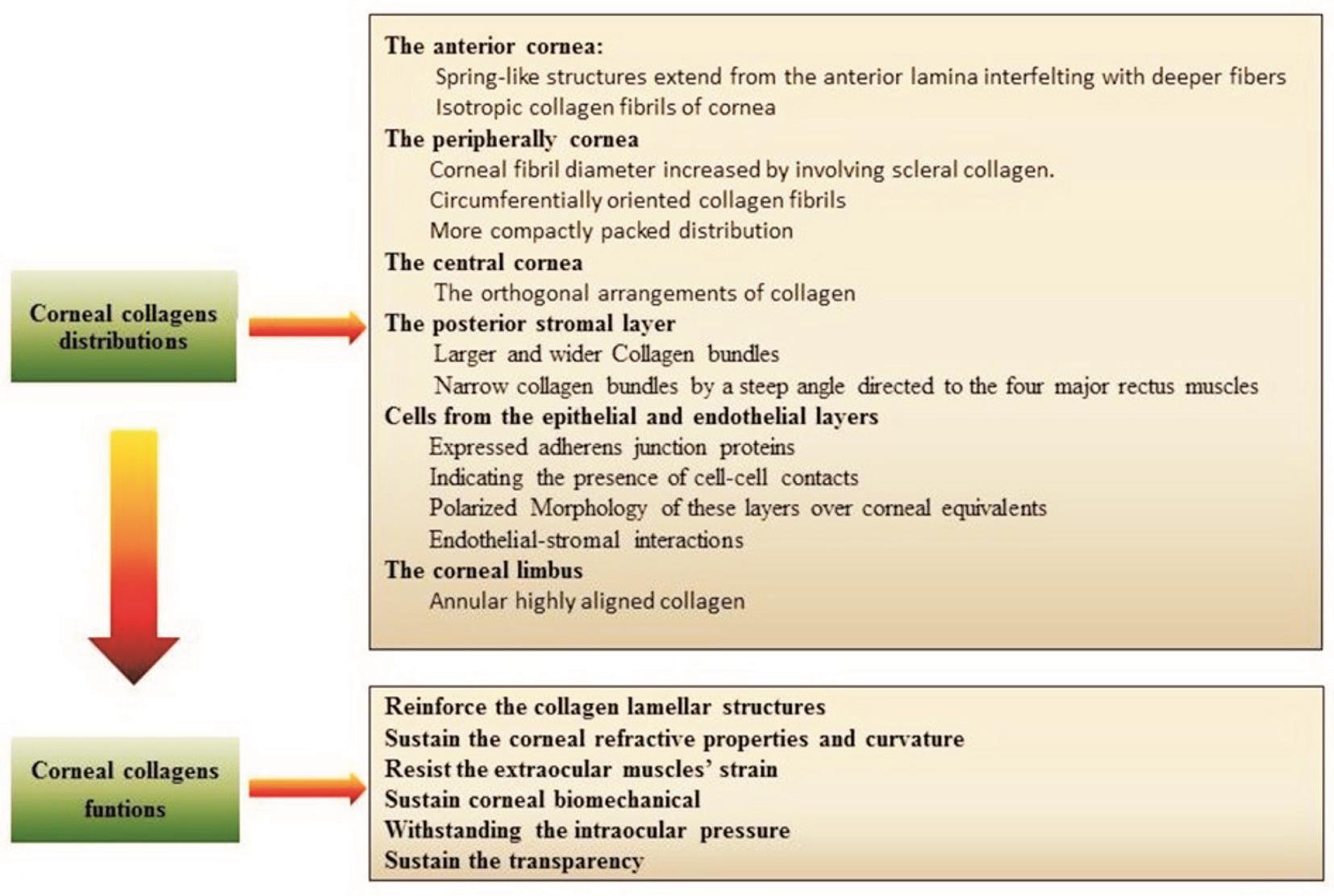

Figure 2 Distributions of corneal collagens, their architectural features, and functional advantages.
CORNEAL COLLAGEN DEGRADATION
Collagen architecture is important for corneal structure and function. Abnormalities in the concentration of collagenase can lead to the destruction of the normal collagen of the cornea, whereas a decrease in the activity of collagenase can reduce the degradation of corneal collagen[37]. In particular,extracellular accumulation of fibrillarcollagen can lead to tissue scarring. Alternatively, extra collagenf i brils were shown to be cleaved by proteolytic enzymes including zinc-dependent endopeptidase matrix metalloproteinases (MMPs)[38].Notably, we demonstrated that MMPs are significantly upregulated in collagen-destructive disorders of the cornea[39].The corneal degradation in corneal diseases is widely seen in clinical practice, such as in infectious keratitis, autoimmune ocular surface disorders, chemical burns, and refractive surgery. The common wound healing-related proteins, MMP-2,-8, -9, -13, and tissue inhibitor of MMP1,2 (TIMP-1,2) were detected at different time points in a fungal keratitis mouse experiment[40]. The transcriptional and translational levels of MMP-8, -9, -13, and TIMP-1 were proved to be increased during the early stages of Candida albicans keratitis. MMP-9 and TIMP-1 were also detected in other infectious keratitis models[41]. Pseudomonas aeruginosa keratitis is characterized by severe corneal collagen degradationand corneal ulceration.MMP activation plays a key role in bacterial keratitis and was found to be a major target for chronic inf l ammation involving pathologic tissue destruction[42]. MMP13 may contribute to P. aeruginosa keratitis through corneal basement membrane degradation, and it could be an additional therapy to treat microbial keratitis[43]. Imbalances in the MMP/TIMP system during virally induced inf l ammations are responsive to changes in the disease progression[44-45]. Lipopolysaccharide (LPS)increases MMPs and cytokine expression in corneal fi broblasts from patients with microbial keratitis, providing a local theory to remedy bacterial infection, even corneal ulceration and severe collagen degradation[46-47]. Autoimmune disorder was associated with dry eye syndrome, peripheral ulcerative keratitis, scleritis, and corneal melts. Tissue damage on the ocular surface of patients was autoimmune-mediated and could be treated by the inhibition of MMPs and T-cell subsets,B-cell signaling, or cytokines[48]. Inf l ammatory responses and neovascularization after the chemical burn aggravate corneal damage. MMPs are the angiogenic factor involved in the pathologic process of corneal chemical burn[49-50].
Accordingly, the degradation of preexisting and synthesized ECM is thought to play an important role in tissue remodelling. In particular, the degradation of 3-D collagen gels has been shown to be affected by the production and activation of MMPs[51]. Variation in corneal modality can also lead to corneal disease. For example, enzymes involved in glycosaminoglycan deficiencies in mucopolysaccharidoses(MPS) syndromes lead to a range of alterations in both interfibrillar and fibrillar ECM components of the cornea.Mechanisms involving excess matrix dermatan sulphate,chondroitin sulphate, heparin sulphate, or keratin sulphate in MPS VII may lead to the dysregulation of fibril shape[52].Conversely, two majorcollagen peptides, prolyl-hydroxyproline(Pro-Hyp) and hydroxyprolyl-glycine (Hyp-Gly) exert a chemotaxis effect on dermal fibroblasts and enhance cell proliferation. Accordingly, the application of collagen hydrolysate with a higher content of Pro-Hyp and Hyp-Gly led to marked improvement in facial skin conditions, including facial skin moisture, elasticity, wrinkles, and roughness[53].In addition, the reconstruction of the corneal surface using type I collagen membranes might be considered in patients with disunioning ulcerations, as transforming growth factor β-induced protein (TGFBIp) represents an ECM protein crosslinked to type XII collagen through a reducible bond in the cornea[54]. However, whether membranes with faster or slower degradation properties would be preferable for the treatment of persistent corneal ulcerations may depend on the underlying corneal pathology and the degree of coinstantaneous inflammation[55]. Furthermore, to increase the resistance to enzymatic degradation, pretreatment with intrastromal and superficial very high-fluence corneal cross-linking (CXL) in conjunction with Bostontype1keratoprosthesis may represent a safe and effective adjunctive treatment.
MMPs are responsible for the degradation of ECM proteins participating in different pathological processes including tissue remodelling, cancer development, and wound healing.For example, resident corneal fi broblasts have been shown to mediate degradation through the release of MMPs following injury and infection[56-58]. Specifically, keratinocytes are changed to myof i broblasts to phagocytose debris in the corneal stroma wound healing process. Keratinocyte production of MMPs is mediated by interleukin-1 (IL-1), plasminogen,and urinary plasminogen activator (uPA)[59-60]. Subsequently,the excessive dissolution of corneal tissue by MMPs that have been activated by cytokines and chemokines may lead to corneal ulcer[61]. In turn, MMP-9 can be cleaved by α6β4 integrin and collagen XVII, which is defective in the blistering disease junctional epidermolysis bullosa. Furthermore, an MMP-9 inhibitor has been shown to reduce the lamina lucida of epithelial-stromal separation damage in the cornea[58],and the inhibition of MMP expression and activity in IL-1βstimulated corneal fi broblasts was found to suppress collagen degradation by these cells[62]. Therefore, the inhibition of corneal collagen degradation induced by cytokines has been suggested as a potential target for the treatment of corneal ulcer[57]. This application may also enhance the biomechanical stability and external disease resistance of the donor cornea in patients with advanced external disease[63]. Conversely,collagen degradation may be considered a potentially suitable intervention for mediating the damage following corneal injuries and infections.
CORNEAL COLLAGEN CONTRACTION
Collagen synthesis and collagen degradation are precisely balanced to maintain normal corneal tissue architecture. In particular, collagen contraction mediated by corneal fi broblasts is implicated in the maintenance of corneal shape[64-65].Conversely, fibrosis in the lung represents the destruction of the normal architecture with the appearance of inf l ammatory cells and excess collagen[66]. Transforming growth factor beta 1 (TGF-β1), which plays a key role in mediating ECM gene expression[67], significantly increased ECM contraction.In mice, decreasing the severity of tissue fibrosis is required for the removal of the accumulated collagen[68]. In addition,although appropriate corneal scarring can prevent the cornea from excessive damage during wound healing and corneal infection, excessive tissue repair can be characterized by inhibited degradation and enhanced ECM deposition, which has been shown to be involved in tissue destruction and fi brogenesis[67]. Notably, collagen overproduction is associated with many diseases such as cancers and fibrosis[69]. As previously mentioned, irregular collagen fiber arrangements were produced by corneal alkali exposure in addition to excess fi broblasts and inf l ammatory cells[35]. Keratoconus is a progressive disease relative to defects in the corneal stroma.TGF-β1 exposure significantly increased ECM contraction,collagen I, and collagen V expression by human keratoconus cells[70].
Small-incision lenticule extraction is superior to femtosecond lenticule extraction in early ocular surface changes and nerve growth factor. TGF-β1 and IL-1α may contribute to the process of ocular surface recovery[71].
Burn scar contracture based on α-smooth muscle action(α-SMA) and collagen deposition induced by TGF-β1 can lead to an increase in myof i broblast population, which can induce severe deformation and functional impairment. To prevent the contraction of burn wound without delaying, the aim of the therapy will be wound closure[72].

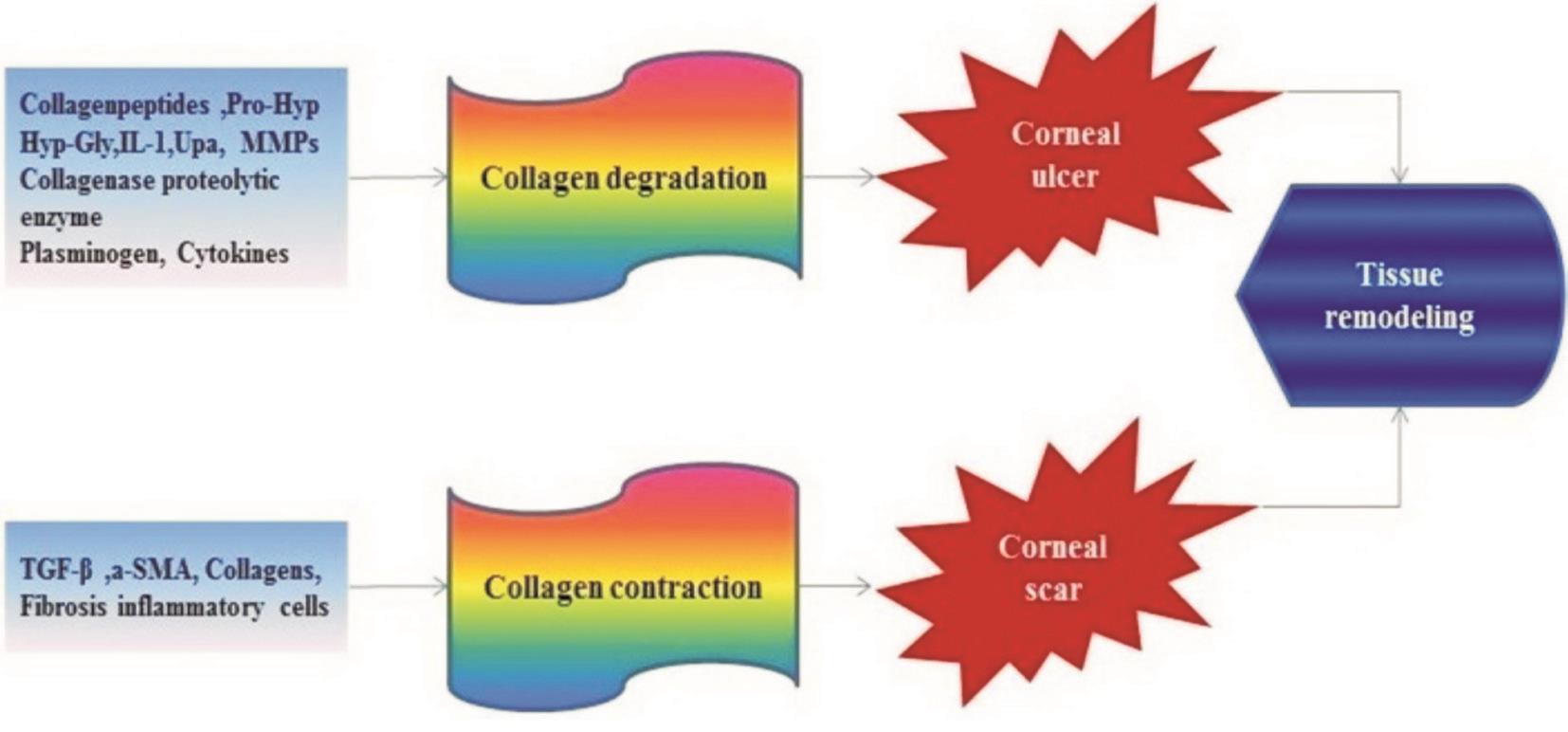

Figure 3 Balance of corneal collagen degradation and contraction.
Collagen I and III augmentation in the corneal matrix promotes defects from scarring[73]. Furthermore, ECM remodelling is thought to have profound effects on tissue architecture and function. Thus, the matrix accumulation stimulated by TGF-β leads to altered morphology[74]. In addition, the transformation of quiescent keratinocytes to active phenotypes and the ensuing fibrotic response play important roles in corneal scar formation. Accordingly, the mediation of an antifibrotic effect may represent a novel approach for the treatment of corneal opacity and scar formation during the corneal wound healing process[75]. Furthermore, the formation of a collagen network composed of fibrillar collagens in the corneal ECM has a decisive effect on tissue stiffness. Thus, additional investigation is required to elucidate the characteristics and regulation of corneal collagen fi brils[76] (Figure 3).
CORNEAL COLLAGEN IN CORNEAL ENGINEERING
Corneal scarring is predominately treated with allogeneic graft tissue. However, the clinical treatment of corneal disease is limited because of a severe shortage of high-quality allogeneic corneal tissues and the potential for bacterial infection after corneal transplantation[77]. Therefore, a well-tolerated scaffold is required for a tissue engineered cornea that permits the adequate growth of incorporated cells and that is not immunogenic[78]. Collagen scaffolds represent good choices for the construction of artif i cial corneas with good resilience,long-term culture capability, and handling properties[79].Specifically, collagen vitrigel membranes characterized by regular, well-organized fibrillar structures are transparent biomaterials that appear to be optimal for the therapeutic treatment of corneal disease, tissue engineering, and corneal repair and regeneration[80-83]. In particular, it was shown that expression of the myof i broblast marker α-SMA decreased and that of corneal crystallin-transketolase increased on collagen nanofiber substrates compared with that on flat glass control substrates. Matrix nanotopography reduced the fibrotic phenotype, induced formation of the quiescent keratinocyte phenotype, and inf l uenced matrix synthesis[84]. Simultaneously,the mechanical properties including the suture retention strength of the collagen-based scaffolds must be further developed with an emphasis on clinical applications[85]. In addition, to be clinically useful, collagen fi brils would require a lack inf i ltration of inf l ammatory cells and fi broblast-like cells into the implant[86]. Under general circumstances, cells and ECM are randomly distributed in tissue engineered cornea. It will be a challenge to adjust the orientation of the cell layers and secreted ECM in a self-assembled tissue sheet[87]. Notably,cell-free implants comprising carbodiimide-cross-linked recombinant human collagen were found to enable endogenetic corneal cell recruitment and were able to relieve a shortage of donor tissue during keratoplasty[88]. Furthermore, tripeptides derived fromcollagenare absorbed efficiently by the body.Type I collagen and its daughter peptide, collagen hydrolysate,have functioned as highly popular reconstructive materials for tissue engineering applications, showing signif i cant reduction in the mucosal damage score and facilitated faster regeneration of damaged mucosa than did controls[89-91]. In addition,polycaprolactone film cross-linked with collagen-derived proteins was able to further enhance the biocompatibility[92].Another study generated a novel gelatin hydrolysate using a cysteine-type ginger protease, which exhibited unique substrate specif i city with preferential peptide cleavage with Pro at the P2 position. Substantial amounts of X-hydroxyproline (Hyp)-Glytype tripeptides were generated concomitantly with Gly-Pro-Y-type tripeptides using ginger powder. This study demonstrated that orally administered X-Hyp-Gly was effectively absorbed into the blood, probably owing to the high protease resistance of this type of tripeptide[93]. Thus, the arrangement of stromal collagen fibrils may be used to influence the engineered corneas, which appear to exhibit great promise as valid treatments for facilitating corneal health and transparency.Specif i cally, engineered corneal tissues containing long parallel collagen fi brils with uniform diameter represent a novel, cellgenerated biomaterial for the therapy of corneal blindness[94].
IMPROVEMENTS IN CORNEAL CROSS-LINKING
CXL is a process wherein ribof l avin sensitization with ultraviolet A radiation is used to induce stromal cross-links. This alters corneal biomechanics, improving corneal stiffness and decreasing its damping capability and deformability. CXL plays roles in the therapy of chemical burns, corneal infections,corneal edema, and bullous keratopathy[2,95]. In particular, CXL offers the possibility of halting the progression of keratoconus and strengthening the cornea[96].
Therapy of keratoconus with riboflavin/ultraviolet A (UVA)causes obvious stiffening of the cornea due to cross-linking[97].Although CXL can leave residual stromal scarring, it can also make a rapid resolution of the infective keratitis[98].CXL can induce healing in microbial keratitis patients by the method of improving symptoms and signs of reduced inf l ammation and achieving epithelial healing[99]. Pretreatment with CXL associated with Boston type 1 keratoprosthesis proved to be a safe and effective method for achieving donor cornea rigidity and increased resistance to enzymatic degradation[63]. In refractory keratitis in patients with the Boston type I keratoprosthesis, CXL can present a shield covering by reducing the inf i ltration of refractory keratitis[100].CXL combined with lamellar keratoplasty and amniotic membrane transplantation can be an optimal choice to treat recurrent corneal melting after Boston type I keratoprosthesis implantation[101].
The method of CXL has been ref i ned through many technical artif i ces[102]. Gamma irradiation-based CXL has helped generate clearer and thinner corneas without endothelium for transplant compared to cryopreserved and fresh corneas, and thus can be used as a lamellar substance[103]. CXL has also served as an option in the treatment of infectious keratitis[104]. CXL may increase corneal strength and refractive power in patients[105].In addition, ribof l avin-UV-CXL can reduce suture-associated complications such as haze formation and ocular surface irregularity. However, further studies are required to ascertain the biostability of CXL and to identify additional applications[106].
CONCLUSION
This review has presented the roles of collagenous fi brils in the physiology and pathology of the cornea. We reviewed corneal dynamics from a structural perspective, considered the roles and interrelationships of collagens, proteoglycans, and MMPs on collagen pathology, collagen degradation, contraction balance, and corneal tissue engineering. These data shed light on the maintenance and reconstitution of collagen-associated corneal transparency.
ACKNOWLEDGEMENTS
Foundations: Supported by Science and Technology Department of Jilin Province Research Fund (No.20160101011JC);Development and Reform Commission of Jilin Province(No.2016C044-1).
Conf l icts of Interest: Zhou HY, None; Cao Y, None; Wu J,None; Zhang WS, None.
REFERENCES
1 Massoudi D, Malecaze F, Galiacy SD. Collagens and proteoglycans of the cornea: importance in transparency and visual disorders. Cell Tissue Res 2016;363(2):337-349.
2 Hatami-Marbini H, Rahimi A. Collagen cross-linking treatment effects on corneal dynamic biomechanical properties. Exp Eye Res 2015;135:88-92.
3 Bourget JM, Proulx S. Author information characterization of a corneal endothelium engineered on a self-assembled stromal substitute. Exp Eye Res 2016;145:125-129.
4 Chen S, Mienaltowski MJ, Birk DE. Regulation of corneal stroma extracellular matrix assembly. Exp Eye Res 2015;133:69-80.
5 Yu M, Bojic S, Figueiredo GS, Rooney P, de Havilland J, Dickinson A, Figueiredo FC, Lako M. An important role for adenine, cholera toxin,hydrocortisone and triiodothyronine in the proliferation, self-renewal and differentiation of limbal stem cells in vitro. Exp Eye Res 2016;152:113-122.
6 Murab S, Ghosh S. Impact of osmoregulatory agents on the recovery of collagen conformation in decellularized corneas. Biomed Mater 2016;11(6):065005.
7 Cheng X, Pinsky PM. Mechanisms of self-organization for the collagen fibril lattice in the human cornea. J R Soc Interface 2013;10(87):20130512.
8 Parfitt GJ, Pinali C, Young RD, Quantock AJ, Knupp C. Threedimensional reconstruction of collagen-proteoglycan interactions in the mouse corneal stroma by electron tomography. J Struct Biol 2010;170(2):392-397.
9 Miron-Mendoza M, Koppaka V, Zhou C, Petroll WM. Techniques for assessing 3-D cell-matrix mechanical interactions in vitro and in vivo.Exp Cell Res 2013;319(16):2470-2480.
10 Almubrad T, Akhtar S. Structure of corneal layers, collagen fi brils, and proteoglycans of tree shrew cornea. Mol Vis 2011;17:2283-2291.
11 Winkler M, Chai D, Kriling S, Nien CJ, Brown DJ, Jester B, Juhasz T, Jester JV. Nonlinear optical macroscopic assessment of 3-D corneal collagen organization and axial biomechanics. Invest Ophthalmol Vis Sci 2011;52(12):8818-8827.
12 Kamma-Lorger CS, Boote C, Hayes S, Moger J, Burghammer M,Knupp C, Quantock AJ, Sorensen T, Di Cola E, White N, Young RD,Meek KM. Collagen and mature elastic fi bre organisation as a function of depth in the human cornea and limbus. J Struct Biol 2010;169(3):424-430.
13 Park CY, Lee JK, Chuck RS. Second harmonic generation imaging analysis of collagen arrangement in human cornea. Invest Ophthalmol Vis Sci 2015;56(9):5622-5629.
14 Giasson CJ, Deschambeault A, Carrier P, Germain L. Adherens junction proteins are expressed in collagen corneal equivalents produced in vitro with human cells. Mol Vis 2014;20:386-94. eCollection 2014.
15 Boote C, Kamma-Lorger CS, Hayes S, Harris J, Burghammer M,Hiller J, Terrill NJ, Meek KM. The collagen microstruct quantification of collagen organization in the peripheral human cornea at micron-scale resolution. Biophys J 2011;101(1):33-42.
16 Bouhenni R, Hart M, Al-Jastaneiah S, AlKatan H, Edward DP.Immunohistochemical expression and distribution of proteoglycans and collagens in sclerocornea. Int Ophthalmol 2013;33(6):691-700.
17 Al Shamrani M, Al Hati K, Alkatan H, Alharby M, Jastaneiah S, Song J, Edward DP. Pathological and immunohistochemical alterations of the cornea in congenital corneal opacif i cation secondary to primary congenital glaucoma and peters anomaly. Cornea 2016;35(2):226-233.
18 Hemmavanh C, Koch M, Birk DE, Espana EM. Abnormal corneal endothelial maturation in collagen XII and XIV null mice. Invest Ophthalmol Vis Sci 2013;54(5):3297-3308.
19 Marchant JK, Zhang G, Birk DE. Association of type XII collagen with regions of increased stability and keratocyte density in the cornea.Exp Eye Res 2002;75(6):683-694.
20 Almubrad T, Akhtar S. Ultrastructure features of camel cornea-collagen fi bril and proteoglycans. Vet Ophthalmol 2012;15(1):36-41.
21 Shetty R, Sathyanarayanamoorthy A, Ramachandra RA, Arora V,Ghosh A, Srivatsa PR, Pahuja N, Nuijts RM, Sinha-Roy A, Mohan RR,Ghosh A. Attenuation of lysyl oxidase and collagen gene expression in keratoconus patient corneal epithelium corresponds to disease severity.Mol Vis 2015;21:12-25.
22 Winkler M, Shoa G, Xie Y, Petsche SJ, Pinsky PM, Juhasz T, Brown DJ, Jester JV. Three-dimensional distribution of transverse collagen fibers in the anterior human corneal stroma. Invest Ophthalmol Vis Sci 2013;54(12):7293-7301.
23 Meek KM, Boote C. The use of X-ray scattering techniques to quantify the orientation and distribution of collagen in the corneal stroma. Prog Retin Eye Res 2009;28(5):369-392.
24 Boote C, Dennis S, Meek K. Spatial mapping of collagen fibril organisation in primate cornea-an X-ray diffraction investigation. J Struct Biol 2004;146(3):359-367.
25 Aghamohammadzadeh H, Newton RH, Meek KM. X-ray scattering used to map the preferred collagen orientation in the human cornea and limbus. Structure 2004;12(2):249-256.
26 Abahussin M, Hayes S, Knox Cartwright NE, Kamma-Lorger CS,Khan Y, Marshall J, Meek KM. 3D collagen orientation study of the human cornea using X-ray diffraction and femtosecond laser technology.Invest Ophthalmol Vis Sci 2009;50(11):5159-5164.
27 Boote C, Dennis S, Newton RH, Puri H, Meek KM. Collagen fi brils appear more closely packed in the prepupillary cornea: optical and biomechanical implications. Invest Ophthalmol Vis Sci 2003;44(7):2941-2948.
28 Flynn BP, Bhole AP, Saeidi N, Liles M, Dimarzio CA, Ruberti JW.Mechanical strain stabilizes reconstituted collagen fi brils against enzymatic degradation by mammalian collagenase matrix metalloproteinase 8(MMP-8). PLoS One 2010;5(8):e12337.
29 Liu X, Wang L, Ji J, Yao W, Wei W, Fan J, Joshi S, Li D, Fan Y. A mechanical model of the cornea considering the crimping morphology of collagen fi brils. Invest Ophthalmol Vis Sci 2014;55(4):2739-2746.
30 Meek KM, Blamires T, Elliott GF, Gyi TJ, Nave C. The organisation of collagen fibrils in the human corneal stroma: a synchrotron X-ray diffraction study. Curr Eye Res 1987;6(7):841-846.
31 Pandolfi A, Holzapfel GA. Three-dimensional modeling and computational analysis of the human cornea considering distributed collagen fi bril orientations. J Biomech Eng 2008;130(6):061006.
32 Morishige N, Shin-Gyou-Uchi R, Azumi H, Ohta H, Morita Y,Yamada N, Kimura K, Takahara A, Sonoda KH1. Quantitative analysis of collagen lamellae in the normal and keratoconic human cornea by second harmonic generation imaging microscopy. Invest Ophthalmol Vis Sci 2014 25;55(12):8377-8385.
33 Palka BP, Sotozono C, Tanioka H, Akama TO, Yagi N, Boote C, Young RD, Meek KM, Kinoshita S, Quantock AJ. Structural collagen alterations in macular corneal dystrophy occur mainly in the posterior stroma. Curr Eye Res 2010;35(7):580-586.
34 Ozgurhan EB, Celik U, Bozkurt E, Demirok A. Evaluation of subbasal nerve morphology and corneal sensation after accelerated corneal collagen cross-linking treatment on keratoconus. Curr Eye Res 2015;40(5):484-489.
35 Gao M, Sang W, Liu F, Yu H, Zhou R, Belin MW, Zloty P, Chen Y.High MMP-9 expression may contribute to retroprosthetic membrane formation after KPro implantation in rabbit corneal alkali burn model. J Ophthalmol 2016;2016:1094279.
36 Connon CJ, Meek KM. Organization of corneal collagen fibrils during the healing of trephined wounds in rabbits. Wound Repair Regen 2003;11(1):71-78.
37 Naderi M, Jadidi K, Falahati F, Alavi SA. The effect of sulfur mustard and nitrogen mustard on corneal collagen degradation induced by the enzyme collagenase. Cutan Ocul Toxicol 2010;29(4):234-240.
38 McKleroy W, Lee TH, Atabai K. Always cleave up your mess:targeting collagen degradation to treat tissue fi brosis. Am J Physiol Lung Cell Mol Physiol 2013;304(11):L709-721.
39 Sakimoto T, Sawa M. Metalloproteinases incornealdiseases: degradation and processing. Cornea 2012;31 Suppl 1:S50-56.
40 Zou Y, Zhang H, Li H, Chen H, Song W, Wang Y. Strain-dependent production of interleukin-17/interferon-γ and matrix remodelingassociated genes in experimental Candida albicans keratitis. Mol Vis 2012;18:1215-1225.
41 Yuan X, Mitchell BM, Wilhelmus KR. Expression of matrix metalloproteinases during experimental Candida albicans keratitis. Invest Ophthalmol Vis Sci 2009;50(2):737-742.
42 Berger EA, McClellan SA, Barrett RP, Hazlett LD. Testican-1 promotes resistance against Pseudomonas aeruginosa-induced keratitis through regulation of MMP-2 expression and activation. Invest Ophthalmol Vis Sci 2011;52(8):5339-5346.
43 Gao N, Kumar A, Yu FS. Matrix metalloproteinase-13 as a target for suppressing corneal ulceration caused by pseudomonas aeruginosa infection. J Infect Dis 2015;212(1):116-127.
44 Shukla V, Kumar Shakya A, Dhole TN, Misra UK. Upregulated expression of matrix metalloproteinases and tissue inhibitors of matrix metalloproteinases in BALB/c mouse brain challenged with Japanese encephalitis virus. Neuroimmunomodulation 2012;19(4):241-254.
45 Suryawanshi A, Veiga-Parga T, Reddy PB, Rajasagi NK, Rouse BT.IL-17A differentially regulates corneal vascular endothelial growth factor (VEGF)-A and soluble VEGF receptor 1 expression and promotes corneal angiogenesis after herpes simplex virus infection. J Immunol 2012;188(7):3434-3446.
46 Wong Y, Sethu C, Louaf i F, Hossain P. Lipopolysaccharide regulation of toll-like receptor-4 and matrix metalloprotease-9 in human primary corneal fi broblasts. Invest Ophthalmol Vis Sci 2011;52(5):2796-2803.
47 Yang YN, Wang F, Zhou W, Wu ZQ, Xing YQ.TNF-α stimulates MMP-2 and MMP-9 activities in human corneal epithelial cells via the activation of FAK/ERK signaling. Ophthalmic Res 2012;48(4):165-170.
48 Tong L, Thumboo J, Tan YK, Wong TY, Albani S. The eye: a window of opportunity in rheumatoid arthritis? Nat Rev Rheumatol 2014;10(9):552-560.
49 Gu XJ, Liu X, Chen YY, Zhao Y, Xu M, Han XJ, Liu QP, Yi JL, Li JM.Involvement of NADPH oxidases in alkali burn-induced corneal injury.Int J Mol Med 2016;38(1):75-82.
50 Cejka C, Holan V, Trosan P, Zajicova A, Javorkova E, Cejkova J. The favorable effect of mesenchymal stem cell treatment on the antioxidant protective mechanism in the corneal epithelium and renewal of corneal optical properties changed after alkali burns. Oxid Med Cell Longev 2016;2016:5843809.
51 Fang Q, Liu X, Al-Mugotir M, Kobayashi T, Abe S, Kohyama T,Rennard SI. Thrombin and TNF-alpha/IL-1beta synergistically induce fi broblast-mediated collagen gel degradation. Am J Respir Cell Mol Biol 2006;35(6):714-721.
52 Young RD, Liskova P, Pinali C, Palka BP, Palos M, Jirsova K,Hrdlickova E, Tesarova M, Elleder M, Zeman J, Meek KM, Knupp C,Quantock AJ. Large proteoglycan complexes and disturbed collagen architecture in the corneal extracellular matrix of mucopolysaccharidosis type VII (Sly syndrome). Invest Ophthalmol Vis Sci 2011;52(9):6720-6728.
53 Inoue N, Sugihara F, Wang X. Ingestion of bioactive collagen hydrolysates enhance facial skin moisture and elasticity and reduce facial ageing signs in a randomised double-blind placebo-controlled clinical study. J Sci Food Agric 2016;96(12):4077-4081.
54 Lukassen MV, Scavenius C, Thøgersen IB, Enghild JJ. Disulf i de bond pattern of transforming growth factor β-induced protein. Biochemistry 2016;55(39):5610-5621.
55 Petsch C, Schlötzer-Schrehardt U, Meyer-Blazejewska E, Frey M, Kruse FE, Bachmann BO. Novel collagen membranes for the reconstruction of the corneal surface. Tissue Eng Part A 2014;20(17-18):2378-2389.
56 Folgueras AR, Pendas AM, Sanchez LM, Lopez-Otin C. Matrix metalloproteinases in cancer: from new functions to improved inhibition strategies. Int J Dev Biol 2004;48:411-424.
57 Benaud C, Dickson RB, Thompson EW. Roles of the matrix metalloproteinases in mammary gland development and cancer. Breast Cancer Res Treat 1998;50:97-116.
58 Zhou H, Kimura K, Orita T, Nishida T, Sonoda KH. Inhibition by female sex hormones of collagen degradation by corneal fi broblasts. Mol Vis 2011;17:3415-3422.
59 Sugioka K, Mishima H, Kodama A, Itahashi M, Fukuda M, Shimomura Y. Regulatory mechanism of collagen degradation by keratocytes and corneal inf l ammation: the role of urokinase-type plasminogen activator.Cornea 2016;35 Suppl 1:S59-S64.
60 Zhou C, Petroll WM. MMP regulation of corneal keratocyte motility and mechanics in 3-Dcollagenmatrices. Exp Eye Res 2014;121:147-160.
61 Gordon MK, DeSantis-Rodrigues A, Hahn R, Zhou P, Chang Y,Svoboda KK, Gerecke DR. The molecules in thecornealbasement membrane zone affected by mustard exposure suggest potential therapies.Ann N Y Acad Sci 2016;1378(1):158-165.
62 Zhou H, Kimura K, Orita T, Nishida T, Sonoda KH. Inhibition by medroxyprogesterone acetate of interleukin-1β-induced collagen degradation by corneal fi broblasts. Invest Ophthalmol Vis Sci 2012;53(7):4213-4219.
63 Kanellopoulos AJ, Asimellis G. Long-term safety and efficacy of highfl uence collagen crosslinking of the vehicle cornea in Boston keratoprosthesis type 1. Cornea 2014;33(9):914-918.
64 Liu Y, Yanai R, Lu Y, Kimura K, Nishida T. Promotion by fi bronectin of collagen gel contraction mediated by human corneal fi broblasts. Exp Eye Res 2006;83(5):1196-1204.
65 Liu Y, Ko JA, Yanai R, Kimura K, Chikama T, Sagara T, Nishida T. Induction by latanoprost of collagen gel contraction mediated by human tenon fi broblasts: role of intracellular signaling molecules. Invest Ophthalmol Vis Sci 2008;49(4):1429-1436.
66 Laurent GJ. Biochemical pathways leading to collagen deposition in pulmonary fi brosis. Ciba Found Symp 1985;114:222-233.
67 Bonniaud P, Kolb M, Galt T, Robertson J, Robbins C, Stampfli M,Lavery C, Margetts PJ, Roberts AB, Gauldie J. Smad3 null mice develop airspace enlargement and are resistant to TGF-beta-mediated pulmonary fi brosis. J Immunol 2004;173(3):2099-2108.
68 Atabai K, Jame S, Azhar N, Kuo A, Lam M, McKleroy W, Dehart G,Rahman S, Xia DD, Melton AC, Wolters P, Emson CL, Turner SM, Werb Z, Sheppard D. Mfge8 diminishes the severity of tissue fi brosis in mice by binding and targeting collagen for uptake by macrophages. J Clin Invest 2009;119(12):3713-3722.
69 Li Y, Ho D, Meng H, Chan TR, An B, Yu H, Brodsky B, Jun AS,Michael Yu S. Direct detection of collagenous proteins by fl uorescently labeled collagen mimetic peptides. Bioconjug Chem 2013;24(1):9-16.
70 Lyon D, McKay TB, Sarkar-Nag A, Priyadarsini S, Karamichos D.Human keratoconus cell contractility is mediated by transforming growth factor-beta isoforms. J Funct Biomater 2015;6(2):422-438.
71 Zhang C, Ding H, He M, Liu L, Liu L, Li G, Niu B, Zhong X.Comparison of early changes in ocular surface and inflammatory mediators between femtosecond lenticule extraction and small-incision lenticule extraction. PLoS One 2016;11(3):e0149503.
72 Sun X, Kim YH, Phan TN, Yang BS. Topical application of ALK5 inhibitorA-83-01 reduces burn wound contraction in rats by suppressing myofibroblast population. Biosci Biotechnol Biochem 2014;78(11):1805-1812.
73 Priyadarsini S, McKay TB, Sarker-Nag A1, Allegood J, Chalfant C,Ma JX, Karamichos D. Complete metabolome and lipidome analysis reveals novel biomarkers in the human diabetic corneal stroma. Exp Eye Res 2016;153:90-100.
74 Robertson JV, Siwakoti A, West-Mays JA. Altered expression of transforming growth factor beta 1 and matrix metalloproteinase-9 results in elevated intraocular pressure in mice. Mol Vis 2013;19:684-695.
75 Pan H, Chen J, Xu J, Chen M, Ma R. Antif i brotic effect by activation of peroxisome proliferator-activated receptor-gamma in corneal fi broblasts. Mol Vis 2009;15:2279-2286.
76 Weber KT, Sun Y, Tyagi SC, Cleutjens JP. Collagen network of the myocardium: function, structural remodeling and regulatory mechanisms.J Mol Cell Cardiol 1994;26(3):279-292.
77 Liu Y, Ren L, Long K, Wang L, Wang Y. Preparation and characterization of a novel tobramycin-containing antibacterial collagen fi lm for corneal tissue engineering. Acta Biomater 2014;10(1):289-299.
78 van Essen TH, van Zijl L, Possemiers T, Mulder AA, Zwart SJ,Chou CH, Lin CC, Lai HJ, Luyten GP, Tassignon MJ, Zakaria N, El Ghalbzouri A, Jager MJ. Biocompatibility of a fi sh scale-derived artif i cial cornea: Cytotoxicity, cellular adhesion and phenotype, and in vivo immunogenicity. Biomaterials 2016;81:36-45.
79 Vrana NE, Builles N, Justin V, Bednarz J, Pellegrini G, Ferrari B,Damour O, Hulmes DJ, Hasirci V. Development of a reconstructed cornea from collagen-chondroitin sulfate foams and human cell cultures. Invest Ophthalmol Vis Sci 2008;49(12):5325-5331.
80 Majumdar S, Guo Q, Garza-Madrid M, Calderon-Colon X, Duan D,Carbajal P, Schein O, Trexler M, Elisseeff J. Inf l uence of collagensource on fi brillar architecture and properties of vitrif i ed collagen membranes. J Biomed Mater Res B Appl Biomater 2016;104(2):300-307.
81 Chaubaroux C, Perrin-Schmitt F, Senger B, Vidal L, Voegel JC, Schaaf P, Haikel Y, Boulmedais F, Lavalle P, Hemmerlé J. Cell alignment driven by mechanically induced collagen fiber alignment incollagen/alginate coatings. Tissue Eng Part C Methods 2015;21(9):881-888.
82 Wu J, Rnjak-Kovacina J, Du Y, Funderburgh ML, Kaplan DL,Funderburgh JL. Cornealstromal bioequivalents secreted on patterned silk substrates. Biomaterials 2014;35(12):3744-3755.
83 Wu J, Du Y, Mann MM, Yang E, Funderburgh JL, Wagner WR.Bioengineering organized, multilamellar human corneal stromal tissue by growth factor supple mentation on highly aligned synthetic substrates.Tissue Eng Part A 2013;19(17-18):2063-2075.
84 Muthusubramaniam L, Peng L, Zaitseva T, Paukshto M, Martin GR,Desai TA. Collagenf i bril diameter and alignment promote the quiescent keratocyte phenotype. J Biomed Mater Res A 2012;100(3):613-621.
85 Long K, Liu Y, Li W, Wang L, Liu S, Wang Y, Wang Z, Ren L.Improving the mechanical properties of collagen-based membranes using silk fibroin for corneal tissue engineering. J Biomed Mater Res A 2015;103(3):1159-1168.
86 Takiyama N, Mizuno T, Iwai R, Uechi M, Nakayama Y. In-bodytissueengineered collagenous connective tissue membranes (BIOSHEETs) for potential corneal stromal substitution. J Tissue Eng Regen Med 2016;10(10):E518-E526.
87 Guillemette MD, Cui B, Roy E, Gauvin R, Giasson CJ, Esch MB,Carrier P, Deschambeault A, Dumoulin M, Toner M, Germain L, Veres T, Auger FA. Surface topography induces 3D self-orientation of cells and extracellular matrix resulting in improved tissue function. Integr Biol(Camb) 2009;1(2):196-204.
88 Fagerholm P, Lagali NS, Ong JA, Merrett K, Jackson WB, Polarek JW,Suuronen EJ, Liu Y, Brunette I, Griff i th M. Stable corneal regeneration four years after implantation of a cell-free recombinant human collagen scaffold. Biomaterials 2014;35(8):2420-2427.
89 Ramadass SK, Jabaris SL, Perumal RK, HairulIslam VI, Gopinath A,Madhan B. Type I collagen and its daughter peptides for targeting mucosal healing in ulcerative colitis: a new treatment strategy. Eur J Pharm Sci 2016;91:216-224.
90 Du L, Betti M. Chicken collagen hydrolysate cryoprotection of natural actomyosin: mechanism studies during freeze-thaw cycles and simulated digestion. Food Chem 2016;211:791-802.
91 Yamamoto S, Deguchi K, Onuma M, Numata N, Sakai Y. Absorption and urinary excretion of peptides after collagen tripeptide ingestion in humans. Biol Pharm Bull 2016;39(3):428-434.
92 Sahapaibounkit P, Prasertsung I, Mongkolnavin R, Wong CS,Damrongsakkul S. A two-step method using air plasma and carbodiimide crosslinking to enhance the biocompatibility of polycaprolactone. J Biomed Mater Res B Appl Biomater 2016
93 Taga Y, Kusubata M, Ogawa-Goto K, Hattori S. Eff i cient absorption of X-hydroxyproline (Hyp)-Gly after oral administration of a novel gelatin hydrolysate prepared using ginger protease. J Agric Food Chem 2016;64(14):2962-2970.
94 Syed-Picard FN, Du Y, Hertsenberg AJ, Palchesko R, Funderburgh ML, Feinberg AW, Funderburgh JL. Scaffold-free tissue engineering of functional corneal stromal tissue. J Tissue Eng Regen Med 2016.
95 Sorkin N, Varssano D. Corneal collagen crosslinking: a systematic review. Ophthalmologica 2014;232(1):10-27.
96 Schilde T, Kohlhaas M, Spoerl E, Pillunat LE. Enzymatic evidence of the depth dependence of stiffening on ribof l avin/UVA treated corneas.Ophthalmologe 2008;105(2):165-169.
97 Anwar HM, El-Danasoury AM, Hashem AN. Corneal collagen crosslinking in the treatment of infectious keratitis. Clin Ophthalmol 2011;5:1277-1280.
98 Makdoumi K, Mortensen J, Sorkhabi O, Malmvall BE, Crafoord S.UVA-ribof l avin photochemical therapy of bacterial keratitis: a pilot study.Graefes Arch Clin Exp Ophthalmol 2012;250(1):95-102.
99 Zarei-Ghanavati S, Irandoost F. Treatment of refractory keratitis after a boston type I keratoprosthesis with corneal collagen cross-linking. Cornea 2015;34(9):1161-1163.
100 Tóth G, Bucher F, Siebelmann S, Bachmann B, Hermann M,Szentmáry N, Nagy ZZ, Cursiefen C. In situ corneal cross-linking for recurrent corneal melting after boston type 1 keratoprosthesis. Cornea 2016;35(6):884-887.
101 Hsu KM, Sugar J. Keratoconus and other corneal diseases:pharmacologic cross-linking and future therapy. Handb Exp Pharmacol 2016.
102 Turkcu UO, Yuksel N, Novruzlu S, Yalinbas D, Bilgihan A, Bilgihan K. Protein oxidation levels after different corneal collagen cross-linking methods. Cornea 2016;35(3):388-391.
103 Yoshida J, Hef l in T, Zambrano A, Pan Q, Meng H, Wang J, Stark WJ,Daoud YJ. Gamma-irradiated sterile cornea for use in corneal transplants in a rabbit model. Middle East Afr J Ophthalmol 2015;22(3):346-351.
104 Papaioannou L, Miligkos M, Papathanassiou M. Corneal collagen cross-linking for infectious keratitis: a systematic review and metaanalysis. Cornea 2016;35(1):62-71.
105 Zhu AY, Vianna LM, Borkenstein EM, Elisseeff J, Jun AS.Assessment of a novel corneal-shaping device with simultaneous corneal collagen cross-linking using a porcine eye model. Cornea 2016;35(1):114-121.
106 Wand K, Neuhann R, Ullmann A, Plank K, Baumann M, Ritter R,Griffith M, Lohmann CP, Kobuch K. Riboflavin-UV-a crosslinking for fi xation of biosynthetic corneal collagen implants. Cornea 2015;34(5):544-549.
