INTRODUCTION
Unwanted alterations in the lid position are among wellknown complications of extra-ocular muscle surgery.In the literature, several studies have evaluated changes in the vertical palpebral fissure height (VPFH) following vertical strabismus surgeries; especially in cases of inferior rectus recession[1-5]. More recently, there have been a growing body of evidence indicating widening of VPFH following unilateral or bilateral horizontal rectus muscle recession[6-8]. The purpose of our study was to evaluate changes of VPFH following lateral rectus muscle recession for treatment of exotropia. Also,for the first time, we sought to assess the possible effects of intermuscular septum dissection in this regard.
METHODS
Design and Participations Criteria This study was ran with an interventional prospective cohort design. Participants were recruited between March 2015 and March 2016 at Feiz Eye Hospital of Isfahan, Iran. Fifty-one patients were selected and allocated in two groups of “with intermuscular septum dissection” vs “without intermuscular septum dissection”using block randomization. Subjects were eligible if they were candidates for unilateral/bilateral lateral rectus muscle recession for treatment of exotropia. Exclusions were: sensory,restrictive or incomitant strabismus; history of previous orbital/strabismus surgery; any sight threatening ophthalmic disease except exotropia; high amounts of exotropia that mandates resection of medial rectus muscle (recession & resection procedure); abnormal lid margin; and patients who failed to attend follow-up visits.
Evaluation and Follow-up At baseline, all of the participants underwent a detailed ophthalmological examination. All of the participants were evaluated one day before surgery, two weeks and three months after intervention.
Fissure Height Assessment VPFH was defined as highest vertical distant between upper and lower lid margin. Patients’heads were placed on slit lamp while one eye was covered.Two photographs were taken by digital camera. Photographs were analyzed using ImageJ software version 1.41 (NationalInstitutes of Health; rsbweb.nih.gov/ij) and mean values of two photos were used.

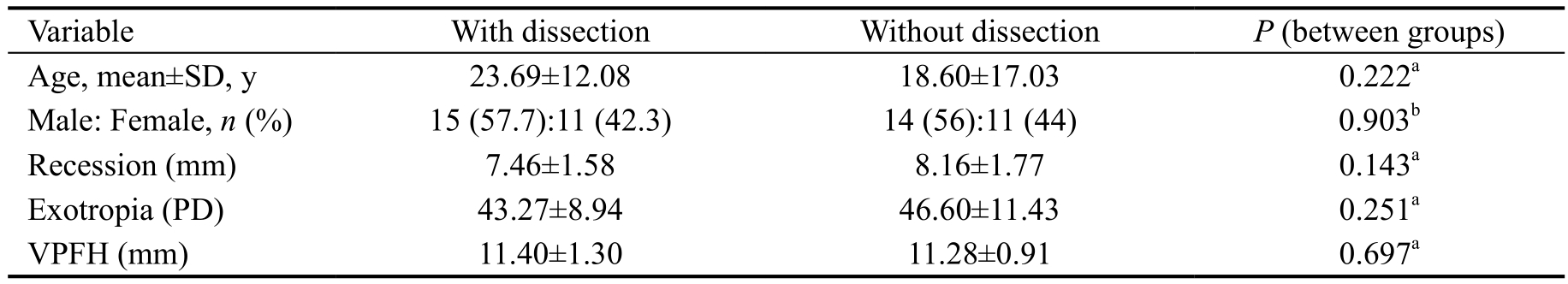

Table 1 Baseline variables
PD: Prism diopter; VPFH: Vertical palpebral fissure height; SD: Standard deviation. aIndependent samples t-test; bChisquare test.

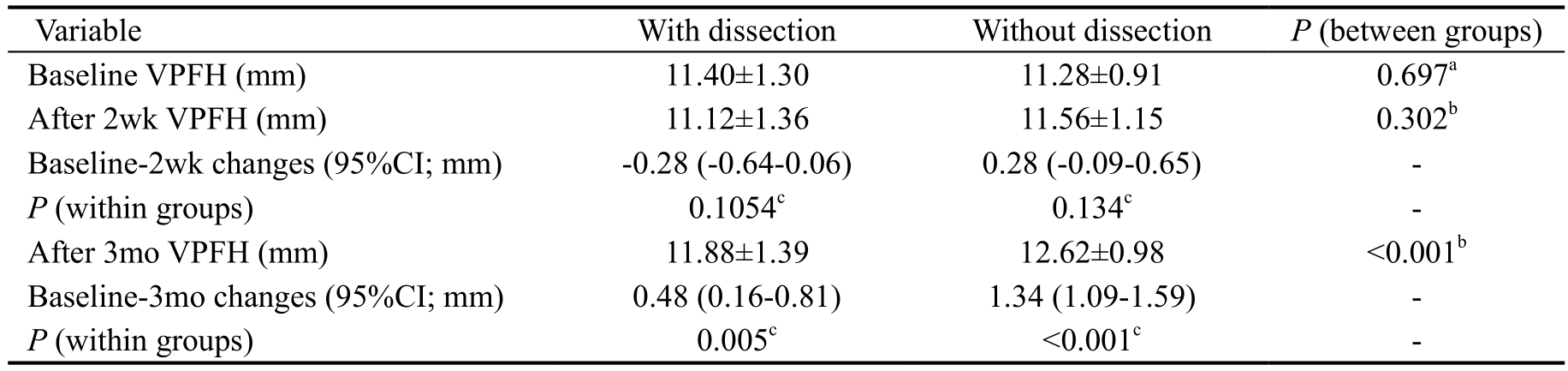

Table 2 Baseline-2wk and baseline-3mo changes of palpebral fissure height
CI: Confidence interval; VPFH: Vertical palpebral fissure height. aIndependent samples t-test; bANCOVA (adjusted for baseline); cPaired sample t-test.
Surgery Lateral rectus muscle recession was performed according to the methods described elsewhere[9]. All of the patients were hospitalized for one day after surgery. Patients were assessed one day, two weeks and three months after surgery for possible complications of strabismus surgery,e.g. post-operative infection, allergic reactions, foreign body granuloma, conjunctival inclusion cyst, conjunctival scaring,fat adherence and slipped muscle.
Ethics and Statistics The study was conducted in accordance with the tenets of Helsinki Declaration, and all participants provided written informed consent. The Ethics Committee of Isfahan University of Medical Sciences approved the study.
All of the analyses were done using SPSS software (version 22;SPSS Inc., Chicago, IL, USA). Chi-Square test and independent sample t-test were used for inter-group comparisons at baseline. Changes of palpebral fissure within each group and between groups were assessed by paired sample t-test and ANCOVA test, respectively. For all of the analyses, P value＜0.05 was considered as significant.
RESULTS AND DISCUSSION
This study enrolled fifty-one eyes of which, twenty-six eyes(9 patients with bilateral and 8 with unilateral recession)and twenty-five eyes (10 patients with bilateral and 5 with unilateral recession) were allocated in “with intermuscular septum dissection” vs “without intermuscular septum dissection” groups, respectively. Baseline data of patients are presented in Table 1.
Table 2 represents “baseline-2wk” and “baseline-3mo” analysis of VPFH changes, respectively. None of the participants experienced significant complications of strabismus surgery;two cases had mild conjunctival scaring.
In this study, we have shown that horizontal strabismus surgery has significant effects on VPFH; this is in line with previous three studies indicating increment of VPFH following such procedures as a side effect[6-8]. In addition, this project questioned whether dissection of intermuscular septum can alter the magnitude of such unwanted changes in VPFH. Interestingly,our three months follow-up results suggest a beneficial role for dissection of intermuscular septum in this regard.
In the literature, for the first time in 2005, a study consisting of 36 patients (including 24 patients with medial rectus muscle recession and 12 patients with lateral rectus muscle recession)showed that VPFH would significantly change three months after intervention[6]. Also, this study demonstrated that in most of the patients, changes appear to occur in the lower lids while the upper lids give different responses to surgeries on rectus muscles.Moreover, widening of VPFH had a dose-dependent correlation with amount of recession e.g. a single recession or resection by 7.7 mm would lead to a mean change in lid fissure width of 1 mm[6].The second study was performed by Santos de Souza Lima et al[7] in 2011. They enrolled 59 patients (17 with exotropia and 42 with esotropia). Medial rectus muscle recession and lateral rectus muscle recession were done in 79 and 25 eyes respectively. After three months, VPFH widened significantly as much as 1.0±0.8 mm and 0.96±0.8 mm, respectively.In addition, increasing VPFH was larger in patients with unilateral muscle recession/resection[7].
In the most recent study of the field in 2013, Lee et al[8] had shown that 35 percent of patients had significant increment of VPFH lasting at least 6mo post-operatively.
Results of the present study, widening of VPFH after horizontal strabismus surgery, are in agreement with the literature. Also,this result adds a practical notion in order to partially prevent VPFH changes following horizontal strabismus surgery by dissection of intermuscular septum. Our 3mo follow-up results suggest that in the “with intermuscular septum dissection”group, increment of VPFH occurred less than in the “without intermuscular septum dissection” group (Change in VPFH in “with intermuscular septum dissection” vs “without intermuscular septum dissection” groups: 0.48 mm vs 1.34 mm;ANCOVA test; P＜0.001; Table 2). Such a difference could not be detectable at 2wk of follow-up, maybe due to the primary surgical inflammation and oedema (Change in VPFH in “with intermuscular septum dissection” vs “without intermuscular septum dissection” groups: -0.28 mm vs 0.28 mm; ANCOVA test; P=0.302; Table 2).
Until now, limited reasons were mentioned for widening of palpebral fissure following horizontal rectus muscle surgeries.Transposition of horizontal rectus muscles to posterior position in globe could change position of globe in orbital space and consequently could lead to widening of palpebral width. Similarly, these changes also occur in slipped muscle complication[10]. Bilateral dissection of both horizontal muscles in Daune syndrome leads to significant pullback of globe and secondary increment of VPFH[11]. In a study by Lagrèze et al[6],it is suggested that changes of muscle tension during horizontal surgery leads to transposition of anterior-posterior axis of globe and consequently alterations in VPFH. Such justifications can partially explain our results as we found alterations in VPFH following lateral rectus recession. However, we think that the anatomical junction of the intermuscular septum with inferior lid septum can explain why dissection of such adhesions can decrease VPFH changes following lateral rectus recession.
As it is well known, the lower eyelid is plainly bound to the inferior rectus muscle through its sheath’s fascial extensions.Also, the superior eyelid and the levator muscle are loosely connected to superior rectus muscle. Hence, surgical manipulation of these muscles causes inadvertent changes in the palpebral fissure. The intermuscular septum is located between rectus muscles[12]. Thus, based on our clinical findings and previous anatomical evidences, changes in horizontal rectus muscles can also cause changes in eyelids position.In other words, eyelids are probably linked with all rectus muscles through their facial extensions and the intermuscular septum between them. Our results indicate that, we can obviate such eyelid alterations by careful dissection of interconnecting structures, i.e. the intermuscular septum.
This study reinforced the literature regarding the possible increment of VPFH following horizontal strabismus surgery.In addition, we showed that such alterations occur less in patients who had undergone intermuscular septum dissection.All candidates for horizontal strabismus surgery should be informed about possible increment of VPFH as a surgical side effect. Further studies are required in order to validate these findings in larger cohorts of different ethnic groups with longer follow-up.
ACKNOWLEDGEMENTS
The authors express their appreciation to Mr. Mohammad Shekarifard for his technical helps. This work was supported by Isfahan University of Medical Sciences. Project proposal,Ideas, protocol, and raw findings of this project was concisely presented in Persian language by local magazine of our Medical School.
Authors’ contributions: The conception and study design were made by Abtahi MA, Zandi A, Jahanbani-Ardakani H,Mandegarfard E, Mahaki B and Abtahi SH. The data collection was done by Mandegarfard E, Zandi A, Jahanbani-Ardakani H, Abtahi SH. The final approval was done by Abtahi MA, and Abtahi SH. The manuscript drafting were made by Zandi A,Jahanbani-Ardakani H, Abtahi SH, Mandegarfard E, Mahaki B and Abtahi MA. Critical revision and review performed by Abtahi SH and Mandegarfard E. All the authors read and approved the final manuscript.
Conflicts of Interest: Abtahi MA, None; Zandi A, None;Mandegarfard E, None; Jahanbani-Ardakani H, None;Mahaki B, None; Abtahi SH, None.
REFERENCES
1 Jampolsky A. Management of vertical strabismus. Trans New Orleans Acad Ophthalmol 1986;34:141-171.
2 Kim DB, Meyer DR, Simon JW. Retractor lysis as prophylaxis for lower lid retraction following inferior rectus recession. J Pediatr Ophthalmol Strabismus 2002;39(4):198-202;quiz 235-236.
3 Kushner BJ. A surgical procedure to minimize lower-eyelid retraction with inferior rectus recession. Arch Ophthalmol 1992;110(7):1011-1014.
4 Meyer DR, Simon JW, Kansora M. Primary infratarsal lower eyelid retractor lysis to prevent eyelid retraction after inferior rectus muscle recession. Am J Ophthalmol 1996;122(3):331-339.
5 Kushner BJ. The effect of anterior transposition of the inferior oblique muscle on the palpebral fissure. Arch Ophthalmol 2000;118(11):1542-1546.
6 Lagrèze WA, Gerling J, Staubach F. Changes of the lid fissure after surgery on horizontal extraocular muscles. Am J Ophthalmol 2005;140(6):1145-1146.
7 Santos de Souza Lima LC, Velarde LG, Vianna RN, Herzog Neto G.The effect of horizontal strabismus surgery on the vertical palpebral fissure width. J AAPOS 2011;15(5):473-475.
8 Lee SB, Heo DW, Lee HM, Lee YH. Widening of palpebral fissure due to lateral rectus muscle recession. J Korean Ophthalmol Soc 2013;54(8):1269-1274.
9 Raab EL. Basic and clinical science course: pediatric ophthalmology and strabismus, 2011-2012. American Academy of Ophthalmology 2011.
10 Chen SI, Knox PC, Hiscott P, Marsh IB. Detection of the slipped extraocular muscle after strabismus surgery. Ophthalmology 2005;112(4):686-693.
11 Sprunger DT. Recession of both horizontal rectus muscles in Duane syndrome with globe retraction in primary position. J AAPOS 1997;1(1):31-33.
12 Gregg T. Lueder SMA, Robert W. Hered, Daniel J. Karr, Sylva R.Kodsi, Stephen P. Kraft, Evelyn A. Paysse, Kanwal Nischal. Pediatric ophthalmology and strabismus. American Academy of Ophthalmology 2014-2015.30-1p.
