Figure 1 Schematic diagram of the optical device used to measure the intraocular lenses A: Wet-cuvette used to measure each lens; B:Image captured by the charge-coupled device (CCD) camera of the lens measured.
Teresa Ferrer-Blasco1, Alberto Domínguez-Vicent1, Santiago García-Lázaro1, María Amparo Díez-Ajenjo1,2, José F. Alfonso3,4, José J. Esteve-Taboada1
1Department of Optics and Optometry and Visual Science,University of Valencia, Valencia 46100, Spain
2Clínica Optométrica, Fundació Lluís Alcanyís Universitat de València, Valencia 46020, Spain
3Surgery Department, Fernández-Vega Ophthalmological Institute, Oviedo 33012, Spain
4School of Medicine, University of Oviedo, Oviedo 33006, Spain
Precise and repeatable measurements of the Zernike coefficients of both contact and intraocular lenses (IOLs) are required to assess how well the final product meets the design specifications. Nowadays, there are several in-vitro systems designed from different manufacturers, such as the NIMO(Lambda-X, Belgium) or the WaveMaster IOL (Trioptics,Germany), that can measure the optical quality of both contact and IOLs as previous studies have shown[1-4]. One of these studies used an optical bench design to measure the in-vitro optical performance of 9 IOLs, including monofocal and multifocal designs[1]. The results obtained in that study showed that there is a significant differences in the image quality at distance, intermediate and near distances among the different IOLs, but the intermediate vision was more prominent with trifocal lenses. On the other hand, another study evaluated the in-vitro optical quality of two trifocal IOLs, and a new lens designed to enlarge the depth of focus[2]. The results obtained in that study showed that the new design has two main areas,one for distance, and another one for intermediate and near vision; meanwhile the trifocal lenses have three. The in-vitro optical quality of two lenses designed to provide a continuous range of vision was also reported, and the results showed that both lenses might enlarge the depth of focus[3]. Finally, an invitro equipment have been also used to compare the optical quality of two phakic IOLs with different optical diameter diameters, and according to the results obtained, both designs have comparable optical quality[4]. From a clinical point of view, these measurements could help clinicians to know the optical behaviour of each lens objectively, and therefore,choose the proper lens that fits better with the patient’s visual requirements.
When it comes to describe the optical quality, several metrics have been set to describe the wavefront, point spread function,and modulation transfer function (MTF)[5-8], and some of them have been used to describe the optical quality of contact lenses and IOLs[9-11]. From a clinical point of view, not only the optical quality is important, but also the impact of those aberrations in the visual system. In an attempt to predict the impact of the optical aberrations in the visual performance,several metrics have been defined. Among all of them, the visual Strehl ratio computed in frequency domain has been reported to be the best predictor since it accounts for 81% of the variance in high-contrast logMAR acuity[6].
The NIMO TR1504 is an optical device that measures the in-vitro optical aberrations of spherical and toric lenses. It is based on a deflectometry technique and combines the Schlieren principle with a phase-shifting method[12]. This device obtains information about the Zernike coefficients,power profiles, sphere, cylinder and axis of the lens with a single measurement. A previous study found a reproducibility standard deviation for monofocal contact lenses with the NIMO device of 0.05 D[13], and although its repeatability was not reported directly, the repeatability standard deviation was stated to be of the same order of magnitude as the reproducibility. When it comes to multifocal contact lenses,the repeatability of this device has been reported to be lower than 0.12 D[14]. Up to date, all previous studies have assessed the NIMO’s repeatability to measure either monofocal or multifocal contact lenses. Nevertheless, there is no study assessing the repeatability of this equipment to measure the optical quality of spheric and astigmatic IOLs, and at the same time, the dependence of the NIMO’s repeatability with the lens toricity has neither been studied.
The aim of this study was to evaluate the repeatability of the NIMO TR1504 for measuring the Zernike coefficients of IOLs and assess whether the lens toricity has any impact in its repeatability.
In-vitro SystemFigure 1 displays the schematic diagram of the NIMO TR1504, which is designed to measure the optical quality and refractive power of IOLs. Generally speaking,this device measures light deviation, from which it is possible to calculate the optical characteristics of IOLs. Detailed descriptions of the method used to measure the lens power can be found elsewhere[12-13,15]. Furthermore, this device obtains with a single measurement the spherical and cylinder power with its axis, Zernike coefficients up to 7thorder, and the power profile of the lens measured.

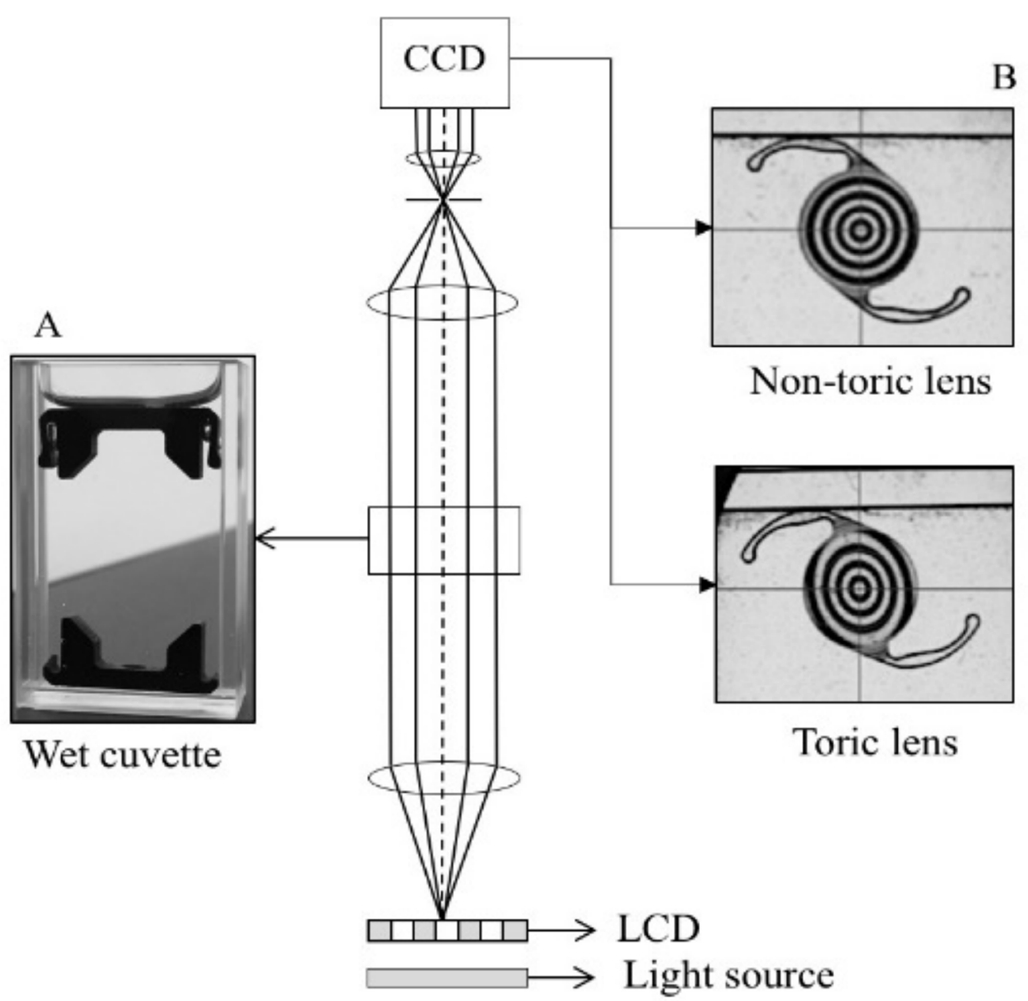

Figure 1 Schematic diagram of the optical device used to measure the intraocular lenses A: Wet-cuvette used to measure each lens; B:Image captured by the charge-coupled device (CCD) camera of the lens measured.
Intraocular LensesThe cylindrical powers of the toric lenses measured in this study were 1.00, 1.50, 2.25, 3.00 and 3.75 D.Additionally, these lenses have an optical zone diameter and overall length of 6.00 and 13.00 mm, respectively. Their optical design consists on a biconvex toric aspheric optic, and the front surface is designed with negative spherical aberration and at the same time, the supporting haptics provide proper positioning and fixation of the lens optics within the eye.
On the other hand, a group of non-toric lenses, which optical power was 16.00, 20.00, 23.00 and 25.00 D, was included as reference purposes. The optical design of the lenses included in this group consists on a biconvex optic with supporting haptics,and its posterior surface is designed with negative spherical aberration to compensate the positive spherical aberration of the average human cornea.
Experimental ProcedureThe optical quality of each IOL was measured as follows: 1) each lens was inserted into the NIMO’s wet-cuvette (Figure 1A) using a pair of tweezers to avoid touching the optical zone of the IOL; 2) the ensemble lens-cuvette was transferred to the NIMO’s plate of measurement, and then the optical axis of the lens was aligned with the NIMO’s one (Figure 1B); 3) one measurement was taken of the Zernike coefficients up to 7thorder; 4) the lens and wet cuvette were removed to obtain independent measurements,and at the same time the lens was removed and reinserted into the wet cuvette; 5) steps two to four were repeated 30 times for 4.50 mm aperture to achieve 30 measurements of each lens.It should be pointed out that the same IOL was used on the 30 measurements.

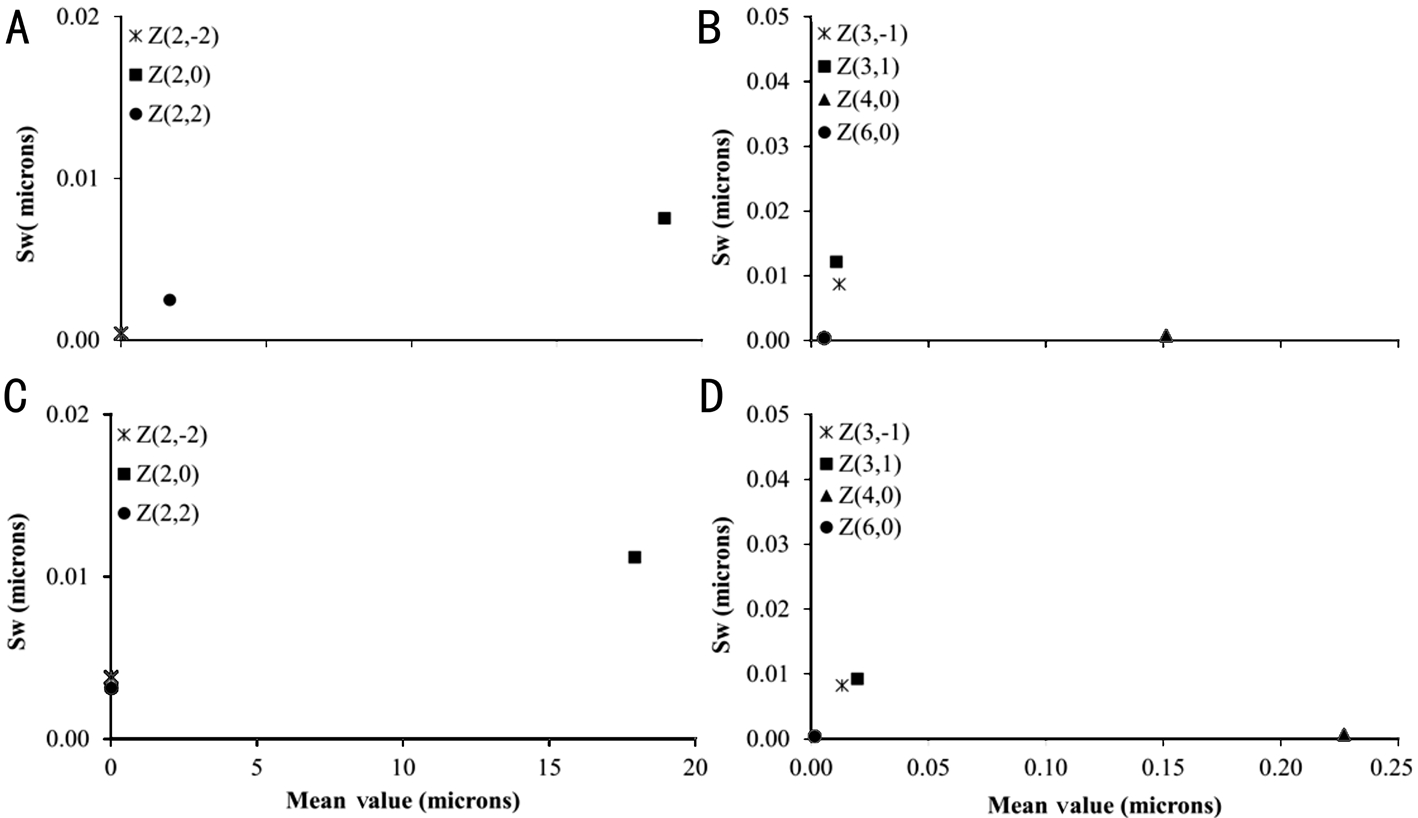

Figure 2 Plot displaying the average root mean square of each Zernike coefficient as a function of its corresponding Sw A and B display the results obtained for the toric lenses; C and D display the outcomes obtained for the non-toric lenses. In both cases, panels A and C represent the low order aberrations, and panels B and D do the high-order aberrations.

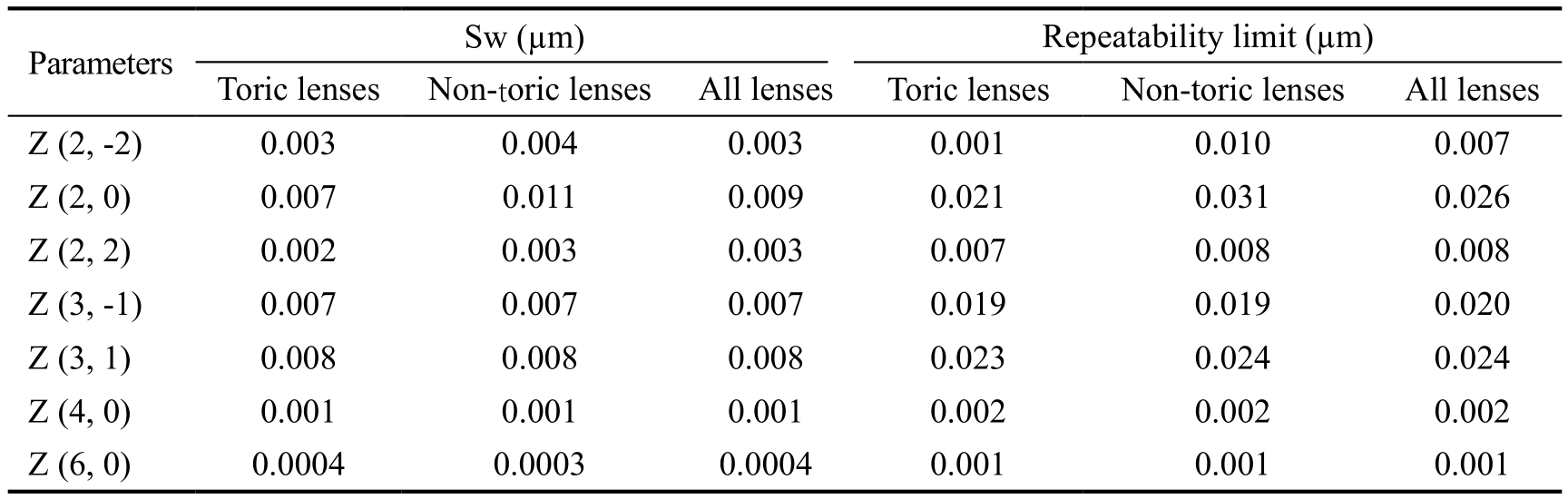

Table 1 Repeatability outcomes expressed in terms of Sw and repeatability limit for the toric, non-toric and the mix of both groups (labelled as all lenses)
Sw: Within-subject standard deviation.
Several aspects were taken into account prior start taking the measurements, in order to ensure good quality in the measurements. On the one hand, the equipment was turned on 20min before taking the measurements in order to ensure sufficient thermal stabilization. At the same time, the room humidity and temperature were kept constant during the whole session, all lenses were manipulated with extremely care, and all measurements were taken during the same session. Finally,and experienced technician was in charge of testing the IOLs.
Statistical AnalysisThe repeatability of the NIMO TR1504 to measure toric and non-toric IOLs was described in terms of within-subject standard deviation (Sw) and repeatability limit. The Sw was calculated with a one-way analysis of variance[16-18], where subject was used as a factor. Then,repeatability limit, which represent the value within two readings taken with the same method will be for 95% of measurements, was calculated as
[18].
The repeatability analysis is calculated for each lens group (i.e.toric and non-toric groups), and then it is repeated for both groups mixed (labelled along the manuscript as ‘all lenses’) to clarify whether the repeatability depends on the lens design.In other words, three different groups were defined, one for each lens group and another one for the mix of both. Finally,the Sw and repeatability limit were calculated for the Zernike coefficients
(oblique astigmatism),
(defocus),
(vertical astigmatism),
(vertical coma),
(horizontal coma),
(primary spherical aberration), and
(secondary spherical aberration).
Figure 2 showed the plot between the average root mean square of each Zernike coefficient and its corresponding Sw.Although the toric and non-toric lens groups showed similar values for the same Zernike coefficient, the toric group resulted with larger values of vertical astigmatism (Z2 2) than the non-toric one (Figure 2, panels A and C). On the contrary,the non-toric lenses showed larger values of primary spherical aberration (Z40) than the toric ones (Figure 2, panels B and D).
Within Subject Standard DeviationTable 1 depicts the repeatability results expressed in terms of Sw and repeatability limit for the three groups. Regarding the Sw, all groups showed comparable values for the same Zernike coefficient, in which the highest difference was 0.004 µm. Furthermore, the Sw of the three IOLs groups was smaller than 0.011 µm for all Zernike coefficients.
Within the toric lens group, the coefficient Z31resulted with the highest Sw value, being equal to 0.008 µm; meanwhile the coefficient
showed the lowest outcome, which value was 0.0004 µm. On the other hand, within the non-toric lens group,the coefficient
resulted with the largest value (Sw=0.011 µm),and the coefficient
did with the smallest one (Sw=0.0003 µm).Finally, the same tendency was observed for the group including all lenses.
Repeatability LimitAll in all, all lens groups showed similar repeatability limits for each Zernike coefficient, which maximum difference was 0.010 µm (Table 1). Besides, the repeatability limits obtained for each Zernike coefficient was smaller than 0.031 µm for all IOLs groups (Table 1).
Within the toric group, the repeatability limit was smaller than 0.010 µm for all Zernike coefficients, except for the defocus
and both coefficients of 3rdorder, which values ranged between 0.019 and 0.023 µm. Similarly, the repeatability limit for the non-toric group was also smaller than 0.010 µm for almost all coefficients except the
and both coefficients of 3rdorder, which values ranged from 0.019 to 0.031 µm. Finally,the same tendency was observed for the group including all lenses.
The aim of this study was to evaluate the repeatability of the NIMO TR1504 for measuring the Zernike coefficients of IOLs and assess whether the lens toricity has any impact in its repeatability. Besides, the results obtained in this study could elucidate the robustness of this device to measure the optical quality of IOLs.
Regarding to the root mean square of each Zernike coefficient,Figure 2 displays that the highest coefficients for the toric lenses are the defocus (
), vertical astigmatism (
) and primary spherical aberration (
). On the contrary, for the nontoric lenses, the highest coefficients were only the defocus (
)and the primary spherical aberration (
). As was expected,the toric lens group resulted with higher values of
than the non-toric one because of the intrinsic design of that group.
From an optical point of view, the spherical aberration of an IOL is aimed to compensate the positive spherical aberration of the cornea, and hence improve the patient’s visual performance[19]. Furthermore, different amounts of spherical aberrations can be generated modifying the asphericity of either the anterior or posterior lens surface[20]. Aspherical toric lenses have been reported to induce better image quality than spherical toric ones due to the compensation between the corneal positive spherical aberration and the negative lens one[21]. Thus, the retinal image quality of patients implanted with aspherical toric lenses could be expected to be better than those who are implanted with spherical toric ones.

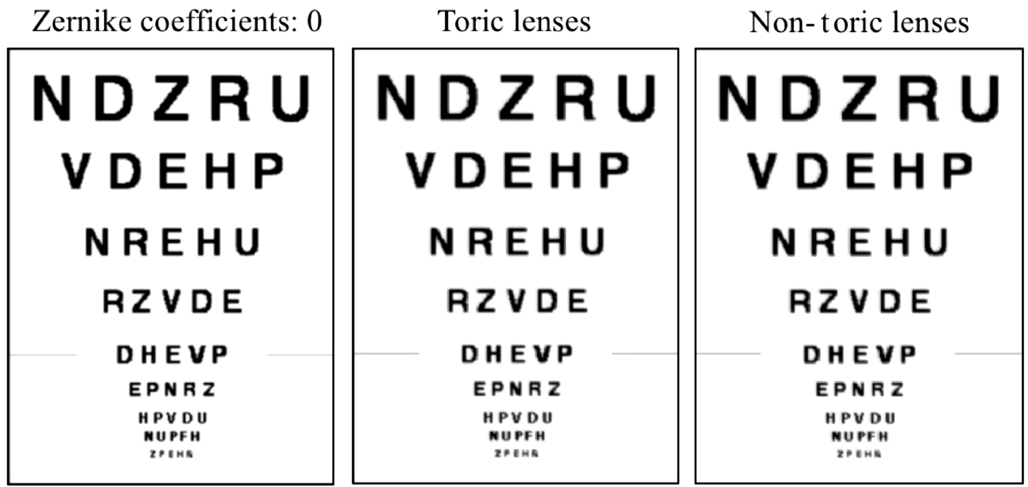

Figure 3 Convolution between the point spread function and a vision test when all Zernike coefficients were 0 µm (left panel), and when each coefficient is equal to its corresponding repeatability limit value for the toric (central panel) and non-toric(right panel) group for 4.50 mm aperture.
The Sw was similar among all lenses groups (i.e. toric, nontoric and all lenses) within the same Zernike coefficient (Table 1),which maximum difference was 0.004 µm. Analogously,comparable values were also obtained in the repeatability limit among the three lens groups within the same Zernike coefficient. Thus, from these results it can be concluded that the repeatability of this device to measure the Zernike coefficients of IOLs is independent of the lens toricity.
Regarding the repeatability values, the Sw obtained within the toric lens group was smaller than 0.010 µm for each Zernike coefficient (Table 1), which values were similar to those obtained with the other two groups. Moving into the repeatability limits, the toric lens group showed values smaller than 0.023 µm for each Zernike coefficient, which outcomes were similar to the non-toric and all lenses groups. Concretely,the value within two readings taken with the NIMO TR1504 will be 0.031 µm for 95% of measurements. To show the effect of this variability graphically, Figure 3 displays the convolution between a point spread function and a vision test when all Zernike coefficients are 0 µm (left panel), and when each coefficient is equal to its corresponding repeatability limit value for the toric (central panel) and non-toric (right panel)group for a pupil diameter of 4.50 mm. As can be seen, the image quality between all panels is quite similar, reflecting that the repeatability of the NIMO TR1504 to measure the Zernike coefficients is good enough to have any impact in the optical quality of the IOL measured.
Two previous studies assessed the repeatability of this system when it comes to measure the spherical power[13]and power profiles[14]of monofocal and multifocal contact lenses,respectively. The former study assessed the reproducibility of the NIMO TR1504 to measure the lens power of spherical and toric contact lenses manufactured with soft and rigid materials.According to the results obtained, the reproducibility standard deviation for toric rigid lenses was found to be 0.014 D for the centered labelled sphere and 0.026 D for cylinder powers;meanwhile the centered labelled sphere and cylinder of the soft toric lenses was 0.059 and 0.093 D, respectively[13].
Regarding the repeatability of the NIMO TR1504 to measure the power profile of multifocal contact lenses, a previous study included 10 lenses of 4 major companies with the same nominal power for distance vision[14]. The results obtained showed that the repeatability limit was good for all multifocal lenses, and the variability of measurement errors of power profiles was homogeneous along the optical zone for all lenses,although the variability was slightly higher in the centre than peripherally for some lenses. At the same time, that study also reported that 1, 2, and 3 measurements would be needed for a measurement tolerance of 0.08, 0.06 and 0.05 D[14].
The main advantage of in-vitro measurements is the possibility to assess objectively the optical quality of both contact lenses and IOLs. These outcomes could be used in conjunction with the patient’s visual requirements to select the proper lens that could achieve the best visual performance. The ISO 11979-2,which includes the standards to measure IOLs in-vitro has been updated recently[22], and recommends using an aberration-free and an aberrated cornea. Unfortunately, there is no consensus on the exact value of the spherical aberration that should be used. For example, Pieh et al[23]used a model eye with an aberration of 0.26 µm, and Maxwell et al[24]did a model eye with an aberration of 0.20 µm.
There are many systems available to measure the in-vitro optical quality of IOLs, such as those based on wavefront sensors, or those that measure the MTF. When it comes to multifocal IOLs, not only should the optical quality be measured at distance-vision focus, but also at their its bestvision foci, as previous studies have done[2-3,25-27]. All of them report the through focus MTF because it represents the variation in the MTF as a function of the vergence for a specific frequency. Additionally, the pupil dependence should also be evaluated to have an insight about the lens performance once it is implanted into the eye. In the end, all these results report objective evidences about the dependence of the lens optical quality with the aperture and vergence of the object.Thus, from all this information, clinicians would be able to choose the proper lens that fits better with the patient’s visual requirements.
Differences between lenses of the same vendor, design,spherical power and toric due to the fabrication process have not been taken into account. Furthermore, the NIMO’s repeatability to measure the optical quality of toric and nontoric contact lenses have neither been assessed. Thus, further studies should be aimed to assess the variability in the fabrication process, and also assess the repeatability of the NIMO TR1504 to measure the optical quality of toric and non-toric contact lenses. Finally, trueness of NIMO, which is defined as the closeness of agreement between the average value obtained from a large series of test results and the true value, was not studied because the real Zernike values were not known. Further studies could also assess the repeatability of this equipment varies when it measures tilted lenses.
In conclusion, not only is the repeatability of the NIMO TR1504 to measure the optical quality high, but also it does not depend on the IOL toricity. These results reflect that this is a robust system that could be used to measure the in-vitro optical quality of either toric or non-toric IOLs.
Foundations:Supported in part by the “Grups d’Investigació Emergents” Grant funded by the Generalitat Valenciana(GV/2015/046); the “Atracció de talent” research scholarship(Universitat de València) awarded to Alberto Domínguez-Vicent (UV-INV-PREDOC13-110412).
Conflicts of Interest: Ferrer-Blasco T,None;Domínguez-Vicent A,None;García-Lázaro S,None;Díez-Ajenjo MA,None;Alfonso JF,None;Esteve-Taboada JJ,None.
REFERENCES
1 Gatinel D, Houbrechts Y. Comparison of bifocal and trifocal diffractive and refractive intraocular lenses using an optical bench.J Cataract Refract Surg2013;39(7):1093-1099.
2 Domínguez-Vicent A, Esteve-Taboada JJ, Del Águila-Carrasco AJ,Monsálvez-Romin D, Montés-Micó R. In vitro optical quality comparison of 2 trifocal intraocular lenses and 1 progressive multifocal intraocular lens.J Cataract Refract Surg2016;42(1):138-147.
3 Domínguez-Vicent A, Esteve-Taboada JJ, Del Águila-Carrasco AJ,Ferrer-Blasco T, Montés-Micó R. In vitro optical quality comparison between the Mini WELL Ready progressive multifocal and the TECNIS Symfony.Graefes Arch Clin Exp Ophthalmol2016;254(7):1387-1397.
4 Domínguez-Vicent A, Ferrer-Blasco T, Pérez-Vives C, Esteve-Taboada JJ, Montés-Micó R. Optical quality comparison between 2 collagen copolymer posterior chamber phakic intraocular lens designs.J Cataract Refract Surg2015;41(6):1268-1278.
5 Thibos LN, Hong X, Bradley A, Applegate RA. Accuracy and precision of objective refraction from wavefront aberrations.J Vis2004;4(4):329-351.
6 Marsack JD, Thibos LN, Applegate RA. Metrics of optical quality derived from wave aberrations predict visual performance.J Vis2004;4(4):322-328.
7 Chen L, Singer B, Guirao A, Porter J, Williams DR. Image metrics for predicting subjective image quality.Optom Vis Sci2005;82(5):358-369.
8 Papadatou E, Del Águila-Carrasco AJ, Esteve-Taboada JJ, Madrid-Costa D, Montés-Micó R. Assessing the in vitro optical quality of presbyopic solutions based on the axial modulation transfer function.J Cataract Refract Surg2016;42(5):780-787.
9 Pérez-Vives C, Domínguez-Vicent A, Ferrer-Blasco T, Pons ÁM,Montés-Micó R. Optical quality of the visian implantable collamer lens for different refractive powers.Graefes Arch Clin Exp Ophthalmol2013;251(5):1423-1429.
10 Pérez-Vives C, Ferrer-Blasco T, Domínguez-Vicent A, García-Lázaro S, Montés-Micó R. Optical and visual quality of the visian implantable collamer lens using an adaptive-optics visual simulator.Am J Ophthalmol2013;155(3):499-507.e1.
11 Domínguez-Vicent A, Esteve-Taboada JJ, Ferrer-Blasco T, García-Lázaro S, Montés-Micó R. Optical quality comparison among different Boston contact lens materials.Clin Exp Optom2016;99(1):39-46.
12 Joannes L, Dubois F, Legros JC. Phase-shifting schlieren: highresolution quantitative schlieren that uses the phase-shifting technique principle.Appl Opt2003;42(25):5046-5053.
13 Joannes L, Hough T, Hutsebaut X, Dubois X, Ligot R, Saoul B,Van Donink P, De Coninck K. The reproducibility of a new power mapping instrument based on the phase shifting schlieren method for the measurement of spherical and toric contact lenses.Cont Lens Anterior Eye2010;33(1):3-8.
14 Domínguez-Vicent A, Marín-Franch I, Esteve-Taboada JJ, Madrid-Costa D, Montés-Micó R. Repeatability of in vitro power profile measurements for multifocal contact lenses.Cont Lens Anterior Eye2015;38(3):168-172.
15 Montés-Micó R, Madrid-Costa D, Domínguez-Vicent A, Belda-Salmerón L, Ferrer-Blasco T. In vitro power profiles of multifocal simultaneous vision contact lenses.Cont Lens Anterior Eye2014;37(3):162-167.
16 McAlinden C, Khadka J, Pesudovs K. Statistical methods for conducting agreement (comparison of clinical tests) and precision(repeatability or reproducibility) studies in optometry and ophthalmology.Ophthalmic Physiol Opt2011;31(4):330-338.
17 International Organization for Standardization. Basic method for the determination of repeatability and reproducibility of a standard measurement method. Accuracy (trueness and precision) of measurement methods and results. Geneva, Switzerland, ISO, 1994 (ISO 5725-2).
18 Bland JM, Altman DG. Measuring agreement in method comparison studies.Stat Methods Med Res1999;8(2):135-160.
19 Rocha KM, Soriano ES, Chalita MR, Yamada AC, Bottós K, Bottós J, Morimoto L, Nosé W. Wavefront analysis and contrast sensitivity of aspheric and spherical intraocular lenses: a randomized prospective study.Am J Ophthalmol2006;142(5):750-756.
20 Montés-Micó R, Ferrer-Blasco T, Cerviño A. Analysis of the possible benefits of aspheric intraocular lenses: review of the literature.J Cataract Refract Surg2009;35(1):172-181.
21 Pérez-Vives C, Ferrer-Blasco T, García-Lázaro S, Albarrán-Diego C, Montés-Micó R. Optical quality comparison between spherical and aspheric toric intraocular lenses.Eur J Ophthalmol2014;24(5):699-706.
22 International Organization for Standardization. Ophthalmic Implants-Intraocular Lenses - Part 2. Optical Properties and Test Methods. Geneva,Switzerland, ISO, 2014 (ISO 11979-2).
23 Pieh S, Fiala W, Malz A, Stork W. In vitro strehl ratios with spherical,aberration-free, average, and customized spherical aberration-correcting intraocular lenses.Invest Ophthalmol Vis Sci2009;50(3):1264-1270.
24 Maxwell WA, Lane SS, Zhou F. Performance of presbyopia-correcting intraocular lenses in distance optical bench tests.J Cataract Refract Surg2009;35(1):166-171.
25 Esteve-Taboada JJ, Domínguez-Vicent A, Del Águila-Carrasco AJ, Ferrer-Blasco T, Montés-Micó R. Effect of large apertures on the optical quality of three multifocal lenses.J Refract Surg2015;31(10):666-676.
26 Madrid-Costa D, Ruiz-Alcocer J, Ferrer-Blasco T, García-Lázaro S,Montés-Micó R. Optical quality differences between three multifocal intraocular lenses: bifocal low add, bifocal moderate add, and trifocal.J Refract Surg2013;29(11):749-754.
27 Gatinel D, Pagnoulle C, Houbrechts Y, Gobin L. Design and qualification of a diffractive trifocal optical profile for intraocular lenses.J Cataract Refract Surg2011;37(11):2060-2067.
28 Madrid-Costa D, Ruiz-Alcocer J, García-Lázaro S, Ferrer-Blasco T,Montés-Micó R. Optical power distribution of refractive and aspheric multifocal contact lenses: effect of pupil size.Cont Lens Anterior Eye2015;38(5):317-321.
Correspondence to:Alberto Domínguez-Vicent. Department of Optics and Optometry and Vision Sciences, University of Valencia, C/ Dr Moliner, 50-46100, Burjassot, Spain. alberto.vicent@uv.es
Received:2017-06-08 Accepted: 2018-05-08
Abstract ● AlM: To evaluate the repeatability of an optical device for measuring the Zernike coefficients of toric intraocular lenses (lOLs) and assess whether its toricity has any impact in its repeatability.● METHODS: An experienced technician used the NlMO TR1504 to measure the Zernike coefficients 30 times for an aperture of 4.50 mm for all lenses included. The lOLs included were divided into two group: toric and nontoric ones. The cylindrical powers of the toric lenses included in the present study were 1.00, 1.50, 2.25, 3.00 and 3.75 D. Finally, the repeatability of the NlMO TR1504 was described in terms of within subject standard deviation(Sw) and repeatability limit.● RESULTS: The Sw was smaller than 0.011 µm for both lens groups and all Zernike coefficients, and the difference between both groups was smaller than 0.004 µm for all Zernike coefficients. Regarding the repeatability limit, this value was smaller than 0.025 µm for the toric lens group,and smaller than 0.031 µm for the non-toric lens one for all Zernike coefficients. Furthermore, the maximum difference between both lens groups was 0.010 µm.● CONCLUSlON: The repeatability of the NlMO TR1504 to measure the optical quality is high and independent of the lens toricity. These results reflect that this system is robust and could be used to measure the in-vitro optical quality of either toric or non-toric lOLs.
● KEYWORDS:in-vitro measurements; optical quality;intraocular lens; repeatability
DOl:10.18240/ijo.2018.07.11
Citation:Ferrer-Blasco T, Domínguez-Vicent A, García-Lázaro S, Díez-Ajenjo MA, Alfonso JF, Esteve-Taboada JJ. Repeatability of in-vitro optical quality measurements of intraocular lenses with a deflectometry technique effect of the toricity. Int J Ophthalmol 2018;11(7):1139-1144
