R etinal neovascular diseases induced by hypoxia, such as proliferative diabetic retinopathy (PDR), retinopathy of prematurity (ROP) and retinal vein occlusion, often cause severe vision impairment worldwide[1]. Thus, targeting pathological retinal neovascularization can be a major therapeutic strategy for treating these disorders. It has been clarified that anti-vascular endothelial growth factor (VEGF)treatment is effective to inhibit retinal neovascularization,and has been widely used in clinical applications in the eye[2].However, anti-VEGF therapies were weakly responsive in some patients and might cause many complications[2-3].
Macrophages can be polarized to M1/M2 phenotype by T helper (Th) 1 cytokines and Th2 cytokines respectively[4-6]. We recently reported that the role of macrophage M1/M2 polarization in oxygen-induced retinopathy (OIR) mouse model[7]. The polarization of macrophages, as well as macrophage-related cytokines, could be considered as novel therapeutic targets to treat retinal neovascularization[4]. Therefore, it is necessary to further clarify the molecular mechanism of the formation of retinal neovascularization, this may lead to the identification of the new target of blocking the formation of retinal neovascularization safely and effectively.
Periostin, as a fasciclin family member, is a matricellular protein with functions in cell motility through interacting with integrins in the development as well as remodeling of tissue[8-9]. Recent studies showed that periostin plays essential roles in proliferative vitreoretinal diseases[9]. Periostin overexpressed in vitreous and fibrovascular membranes, and had a strong positive correlation with M2 macrophages[10-12].In an in vivo study, periostin highly expressed accompanied with the pathogenesis of retinal neovascularization of OIR,and the knockdown of periostin resulted in the blockade of pathological neovascularization in vivo[13]. It has been reported that glioblastoma stem cells (GSC)-produced periostin recruits M2 tumor-associated macrophages and enhances malignant growth[14].
Moreover, it has been indicated that periostin plays a key role in promoting chronic allergic inflammation in response to Th2 cytokines[15]. Interleukin (IL)-13, as a Th2 cytokine,enhanced periostin production in macrophages, and human retinal microvascular endothelial cells[11,13]. Th2 cytokines IL-4 and IL-13 were demonstrated to play essential roles in producing periostin in gingival fibroblasts and periodontal ligament cells, whereas pro-inflammatory cytokine tumor necrosis factor-alpha (TNF-α) inhibited periostin expressions in these cells[16]. Thus, Th2 cytokines and M2 polarization of macrophages may be involved in periostin production, and targeting periostin might be an efficient way in inhibiting retinal neovascularization.
Müller glia is a type of retinal glial cells, which is important to the development of the retina[17]. Retinal Müller cells are a major source of many growth factors, such as VEGF and nerve growth factor[18]. Periostin could be produced by other kinds of glial cells, such as Schwann cells and astroglia[19-20]. However,the relationship between periostin and Müller glia still remains unclear.
The purpose of this study was to investigate whether Müller glia are involved in the periostin production in retinal neovascularization. The possible relevance between periostin and VEGF were also discussed.
Ethical Approval All experiments with animals were conducted following the Association for Research in Vision and Ophthalmology Statement for the Use of Animals in Ophthalmic and Vision Research. The experimental procedures have been approved by the Kyushu University Institutional Animal Care and Use Committee.
AnimalsIn the study, we used wild type C57BL/6J mice and periostin knock-out (KO) mice for the animal experiments as previously described[13].
Oxygen-Induced Retinopathy Mouse Model The OIR mouse model was induced as described[21-23]. Briefly, we exposed pups to 75% oxygen at postnatal day 7 (P7), and returned them to room air at P12. Pups kept in room air continuously were used as controls.
Culture of the Human Moor field/Institute of Ophthalmology-Müller 1 Cell Line Cells The human Moorfield/Institute of Ophthalmology-Müller 1 (MIO-M1) cell line, which was established and characterized previously in Limbs lab[24], were maintained with Dulbecco's modified Eagle's medium/nutrient mixture F-12 (DMEM/F12) medium (Gibco, Grand Island,NY, USA) in 5% CO2 at 37℃. MIO-M1 cells suspensions(started at 50 000 cells/3 mL/well) were seeded in 6 wells plates, cultured in DMEM/F12 medium with 10% fetal bovine serum (FBS) for attachment. After starvation in DMEM/F12 medium (serum-free) for 24h, the medium was replaced with(or without) human recombinant TNF-α and interferon-gamma(IFN-γ; R&D System, Minneapolis, MN, USA) for 8h and/or 24h. Then the collected cells were examined for the mRNA expressions.
Lentivirus Transduction for Gene Silencing of Periostin Lentiviral vectors encoding shRNA against human periostin or scrambled shRNA was designed and manufactured by Obio Technology Co., Ltd (Shanghai, China). The target sequences for human periostin-shRNA is 5'-GCACCAAAAAG AAAUACUU-3'. The lentivirus infection was performed according to the manufacturer's instructions.
Quantitative Real-time Reverse Transcription Polymerase Chain Reaction Total RNA of Müller cells was extracted using RNeasy Mini Kit (Qiagen, Redwood City, CA, USA)and the total RNA from the homogenized retinas was extracted using Trizol. After removing DNA traces using TURBO DNase(Ambiom, Thermo Fisher Scientific, Waltham, MA, USA), the concentrations of the RNAs were quantified by NanoVue plus(Biochrom, Cambridge, UK), and complementary DNAs were synthesized by a RevertAid® Fifirst Strand cDNA Synthesis Kit (Thermo Scientific, Waltham, MA, USA). Quantitative Real-time reverse transcription polymerase chain reaction(qRT-PCR) was conducted and analyzed by Taqman Gene Expression Master Mix with Taqman® gene expression assays(Applied Biosystems, Foster City, CA, USA) in a StepOne®Real-time PCR System (Applied Biosystems). GAPDH was used as the endogenous control for normalization. The following assays were used in the study: Mm99999915_g1(GAPDH), Mm00450111_m1 (periostin), Mm01281449_m1 (VEGFA), Hs02758991_g1 (GAPDH), Hs00900055_m1(VEGFA), Hs01566750_m1 (periostin).
Immunofluorescent Staining Cryostat sections were prepared as described[7] with some modi fications. In brief, the eye sections (20 µm) were cut by a cryostat (Leica CM 1800,Bannockburn, IL, USA). PBS with 0.1% Tween was used for rinsing. Sections were blocked by 3% skim milk, and the cells were blocked by 5% bovine serum albumin. After blocking, the sections or cells were incubated with the primary antibodies overnight at 4℃, and the secondary antibodies were used for incubation on the next day. Then, the cryostat sections or the cells were covered with aqueous mounting medium (Sigma-Aldrich, St. Louis, MO, USA).

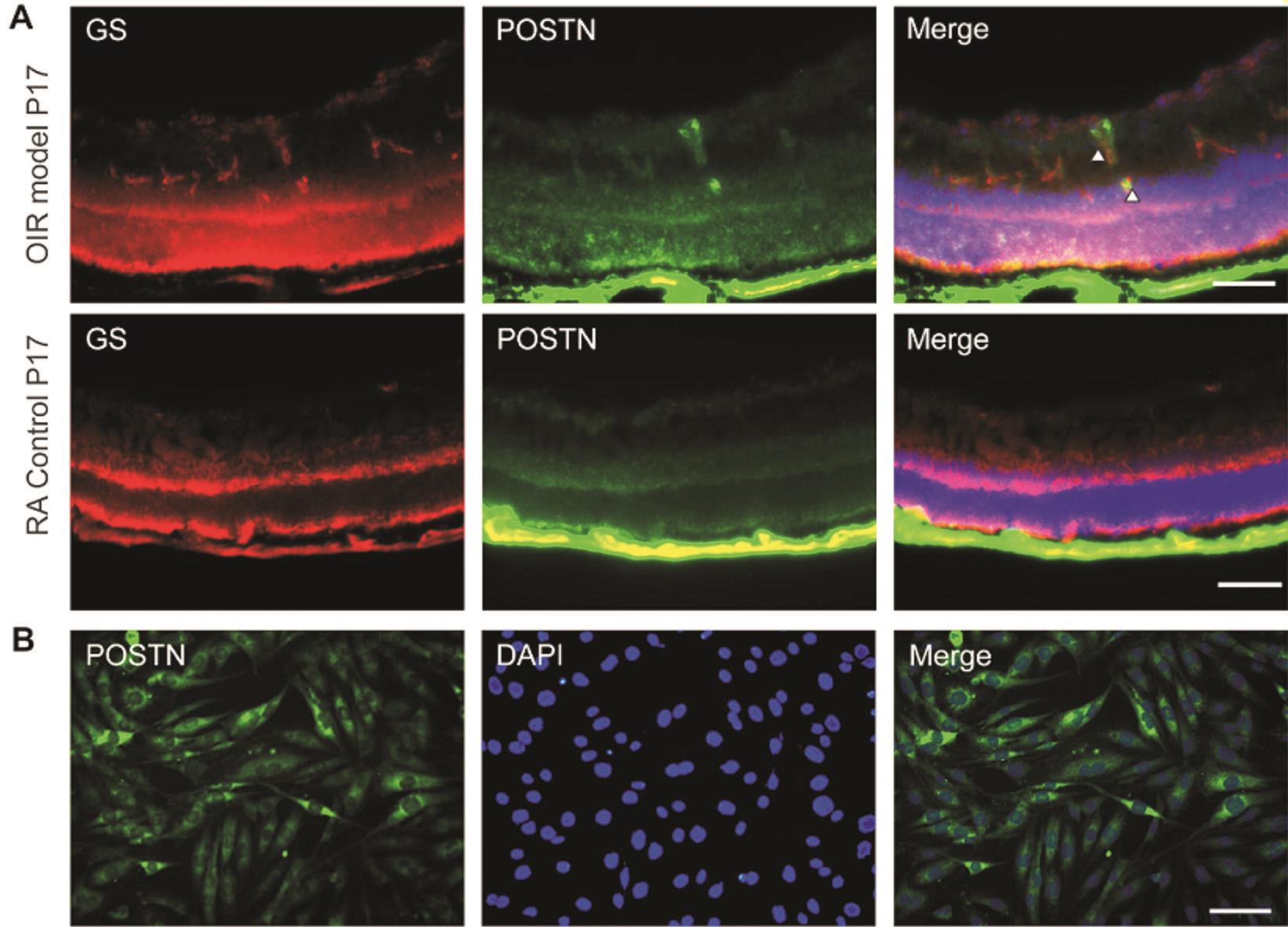

Figure 1 Immunofluorescence staining revealed high expression of periostin and GS in the OIR retina, and periostin expressed in MIO-M1 cells
Double staining for GS (red) and periostin (green) in cryostat sections of OIR and room air control eyes at P17 (A).Immunostaining of periostin in MIO-M1 cells (B). Hoechst 33342 and DAPI were used to countefirstain the nuclei. Scale bars: 100 μm.
The primary antibodies used for the study were: human/mouse periostin antibodies (5 µg/mL, R&D System, MN,USA) and anti-glutamine synthetase (GS) antibody (1:250 dilution, Abcam, Cambridge, MA, USA). Alexa Fluor 488 and 546 (1:100 dilution; Molecular Probes) were used as second antibodies. Hoechst 33342 (1:1000 dilution, Molecular Probes)was used to countefirstain the nuclei. The stained sections and cells were photographed by the fluorescent microscope DMI4000B (Leica, Wetzlar, Germany).
Statistical Analysis The results in figures were presented as means±SEMs. The statistical analyses were performed by Student's t test or one-way ANOVA which followed by Dunnett's tests. A P-value of less than 0.05 was considered significant. The statistical software JMP 10.0.2 (SAS Institute,Cary, NC, USA) was used for all analyses.
Periostin Co-localized with Retinal Müller Glia To determine the involvement of Müller glia in periostin production during the development of retinal neovascularization, we co-immunostained cryostat sections of OIR and room air control with antibodies against GS-periostin at P17.Immuno fluorescence staining of the sections showed that both periostin and Müller glia marker GS were highly expressed in the OIR retina compared to the room air control (Figure 1),and periostin was partially overlayed with GS-positive Müller glia in retinal neovascularization. Moreover, periostin was immunostained in MIO-M1 cells, and the results showed that periostin was expressed by Müller glia in vitro (Figure 1B).These results indicated that periostin might be produced by retinal Müller glia.
IFN-γ and TNF-α Attenuate Periostin Expression in MIO-M1 Cell Line To further investigate the mechanism of periostin expression in retinal Müller glia, we stimulate the MIO-M1 cell line with TNF-α and IFN-γ, and qRT-PCR was performed. The results showed that IFN-γ inhibited periostin expression at 24h after stimulation at the concentration of 2,20, 200 ng/mL (Figure 2A, P＜0.01). Moreover, TNF-α with the concentration of 0.1, 1, 10 ng/mL attenuated periostin expression at both time points of 8h and 24h after stimulation(Figure 2B, P＜0.01). The effects of both cytokines were dosedependent.
IFN-γ and TNF-α Down-regulate the VEGFA mRNA Level in MIO-M1 Cell Line To clarify whether IFN-γ and TNF-α affect the mRNA expression level of VEGFA in retinal Müller glia in vitro, we stimulated the MIO-M1 cell line with IFN-γ and TNF-α, and qRT-PCR was performed to examine the mRNA expression of VEGFA. The results showed that both IFN-γ and TNF-α down-regulated the mRNA levels of VEGFA in MIO-M1 cells (Figure 3A, 3B; P＞0.05). After 8h stimulation of IFN-γ at the concentration of 2, 20, 200 ng/mL, the VEGFA mRNA expression level decreased, and this change continued until 24h after stimulation. However, another cytokine TNF-α only attenuated the mRNA expression level of VEGFA after 8h stimulation. While the results stimulated by TNF-α at the concentration of 0.1, 1, 10 ng/mL showed no statistically significant difference.

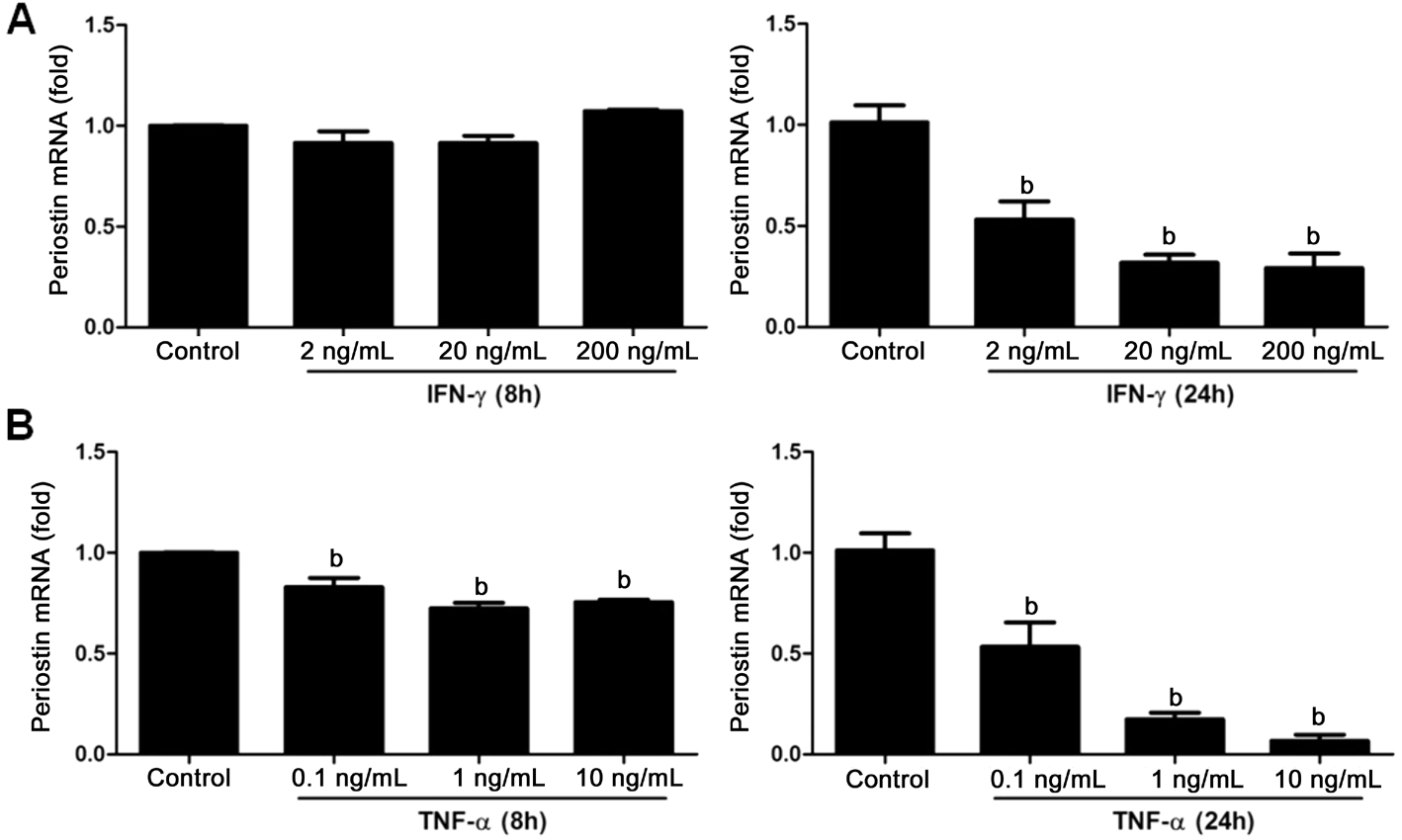

Figure 2 IFN-γ and TNF-α down-regulated periostin expression in Müller glia in vitro
Fold change in mRNA expression for periostin in Müller cells after stimulation with IFN-γ and TNF-α by different concentrations, 2, 20, 200 ng/mL for IFN-γ (A) and 0.1, 1, 10 ng/mL for TNF-α(B) respectively at 8h and 24h time points. Human GAPDH mRNA was used as an endogenous control in all qRT-PCR analysis. Data represent the mean±SEM (n=4).bP＜0.01 compared to the controls.
Figure 3 The effect of IFN-γ and TNF-α stimulation to the mRNA levels of VEGFA in MIO-M1 cells
Fold change showed in bar plots in the expression for VEGFA in Müller cells after stimulation by IFN-γ and TNF-α by different concentration, 2, 20, 200 ng/mL for IFN-γ (A) and 0.1, 1, 10 ng/mL for TNF-α (B) respectively after 8h and 24h stimulation. GAPDH was used as normalization in all qRT-PCR results. Data were represented the mean±SEM (n=4). bP＜0.01 compared to the controls.
Knockdown of Periostin Inhibit mRNA Expression of VEGFA in MIO-M1 Cell Line Knockdown effect induced by shRNA on mRNA expression of periostin in MIO-M1 cells was assessed. The results of qRT-PCR showed that mRNA expression of periostin was significantly inhibited following the transfection compared to the control (P＜0.01, n=4; Figure 4A).To confirm the effect of periostin knockdown on VEGFA expression, qRT-PCR was also performed. The results showed that mRNA expression of VEGFA was also decreased after the knockdown of periostin (P＜0.01, n=4; Figure 4B). These results indicated that knockdown of periostin inhibited mRNA expression of VEGFA by retinal glial cells.
Deficiency of Periostin does not Affect the mRNA Expression of VEGFA in OIR Retinas To determine the relationship between periostin and VEGFA, wild-type C57/B6J (WT) mice and periostin KO mice were exposed to 75%oxygen from P7 to P12, and we quantified mRNA expressions of periostin and VEGFA in OIR retinas at P17. The mRNA expression of periostin was remarkably attenuated in KO mice,which shows a well-deficiency of the gene (P＜0.01;Figure 5A). However, there was no significant difference of VEGFA expression in the retinas between WT and KO mice(P＞0.05; Figure 5B). These data indicate that the deficiency of periostin does not affect the mRNA expression of VEGFA in the whole retina of OIR.

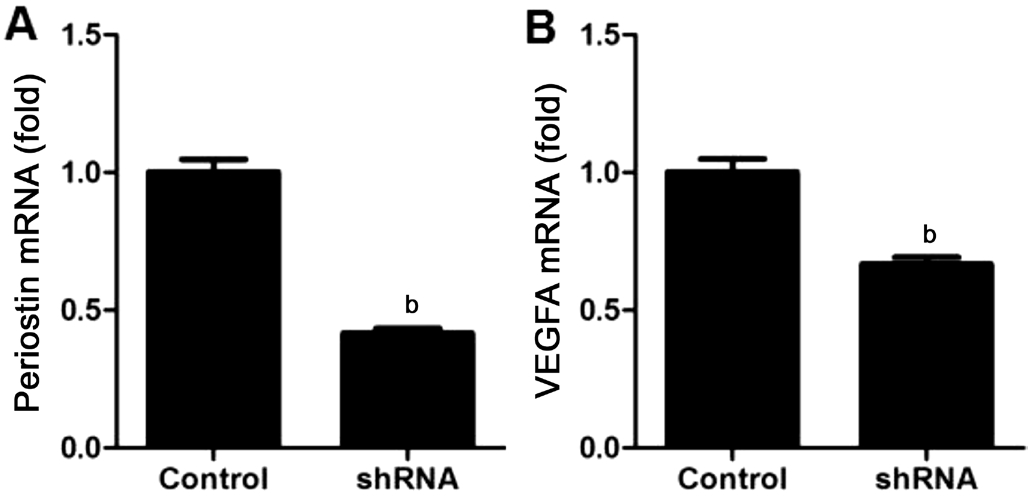

Figure 4 Periostin-knockdown attenuated VEGFA mRNA expression levels in MIO-M1 cells
qRT-PCR results showed in bar graph revealed downregulation in MIO-M1 cells of periostin (A) and VEGFA (B) at mRNA expression levels after periostin knockdown.Results were normalized to human GAPDH mRNA expression levels correspondingly, and data were represented the mean±SEM (n=4).bP＜0.01 compared to the controls.

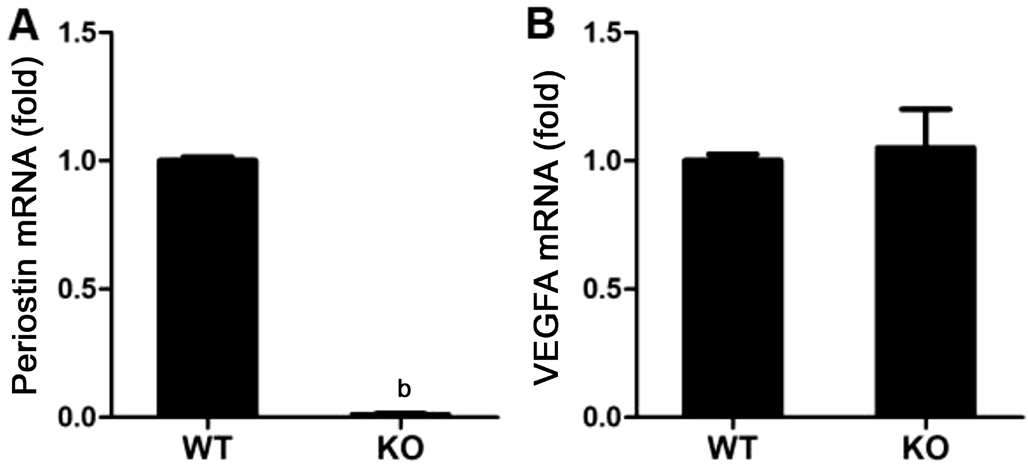

Figure 5 mRNA expression of VEGFA had no relevance with deficiency of periostin (periostin KO mice) in OIR retinas
qRT-PCR results showed in bar plots for mRNA expression levels of periostin was remarkably downregulated in KO mice compared to WT control mice (A). No change was detected for VEGFA expression both in periostin KO mice and WT control mice (B). Results were normalized to mouse GAPDH mRNA expression levels correspondingly, and data were represented the mean±SEM (n=4). bP＜0.01 compared to the controls.
Periostin is considered to be involved in promoting tissue regeneration, wound healing and fibrosis by interacting with integrins[8]. Numerous studies of periostin has been conducted in tumor[25-27], asthma[28-29], cardiac diseases[30-31] and kidneyfibrosis[32-33]. Recently, periostin has emerged as a player in the field of vitreoretinal diseases[9], which has been found to be upregulated in tissues of PDR, proliferative vitreoretinopathy as well as age-related macular degeneration. Müller glia are essential source cells of cytokines and inflammatory factors in the gliotic retinas with proliferative vitreoretinopathy[34]. In the present study, the results showed that periostin overlaid with Müller glia marker GS, and MIO-M1 Müller glial cells expressed periostin in vitro (Figure 1). Thus, Müller glia might be one major source for periostin. TNF-α and IFN-γ attenuated periostin mRNA expression in MIO-M1 cells (Figure 2).These results indicated that proinflammatory cytokines TNF-α and IFN-γ might be important in the regulation of periostin produced by Müller glia.
The mechanism why these two cytokines could reduce periostin in vitro still remained unclear. Previous studies showed that M2-polarized macrophages produced periostin[11],and periostin could be induced by Th2 cytokines such as IL-4 and IL-13[16]. Periostin should have strong relevance to Th2 response with an anti-inflammatory effect. Moreover, both periostin and anti-inflammatory M2 macrophages enhanced ocular neovascularization[7,13,35-36]. Thus, pro-inflammation might possess an inhibitory effect on periostin production.
The relationship between periostin and VEGF still remains controversial. Liu et al[37] reported that periostin enhanced tumor angiogenesis through activation of Erk/VEGF signaling in pancreatic cancer, and VEGF in the cancer tissues was significantly correlated with the expression of periostin.Periostin was also considered to have a significant positive correlation with VEGF in osteosarcoma patients[38] and in patients with esophageal squamous cell carcinoma[39],inducing and/or promoting tumor angiogenesis. Periostin also promoted VEGF secretion in keloid fibroblasts[40]. Another study showed that periostin shRNA-infection reduced VEGFA expression in GSC. Moreover, periostin and VEGFA were strongly associated with the progression of GSC[26]. However,the concentration of periostin in vitreous was not significantly correlated with those of VEGF in the vitreous of PDR patients[12].In the present study, the in vitro and in vivo studies showed controversial results. IFN-γ and TNF-α down-regulate the VEGFA mRNA level in MIO-M1 cell line after 8h stimulation,while the VEGFA mRNA level has not been affected at 24h after the stimulation of TNF-α (Figure 3). Moreover, although the knockdown of periostin attenuated mRNA expression of VEGFA in MIO-M1 cell line, the deficiency of periostin does not affect the expression of VEGFA in the whole retina of OIR(Figures 4 and 5). A possible reason of this phenomenon might be that under hypoxia, VEGF can be expressed by many kinds of source cells besides Müller glia, such as macrophages[41],retinal pigment epithelial (RPE) cells[42], etc. The attenuation of VEGFA in glial cells could be masked by the increase from those cells.
Further studies are needed to determine whether experimental inhibition of periostin can attenuate retinal fibrovascular membrane formation ex-vivo and in vivo. Moreover, the mechanisms by which TNF-α and IFN-γ can induce downregulation of periostin in mice is worth investigation. Periostin might be a novel target for PDR and it might have a synergistic effect with anti-VEGF treatment, and targeting these molecules by state-of-the-art strategies such as gene-editing using CRSPR-Cas9 system could be considered for the future investigations and clinical applications[43].
Foundations: Supported by National Natural Science Foundation of China (No.81800855; No.81800856;No.81700837); Natural Science Foundation of Hunan Province(No.2018JJ3765); Department of Science and Technology,Hunan (No.2015TP2007); Japan Society for the Promotion of Science KAKENHI Grants (No.26293374; No.16K15734).
Conflicts of Interest: Peng YQ, None; Cao MJ, None;Yoshida S, None; Zhang LS, None; Zeng HL, None; Zou JL,None; Kobayashi Y, None; Nakama T, None; Shi JM, None;Jia SB, None; Zhou YD, None.
1 Yoshida A, Yoshida S, Ishibashi T, Inomata H. Intraocular neovascularization. Histol Histopathol 1999;14(4):1287-1294.
2 Osaadon P, Fagan XJ, Lifshitz T, Levy J. A review of anti-VEGF agents for proliferative diabetic retinopathy. Eye (Lond) 2014;28(5):510-520.
3 Salam A, Mathew R, Sivaprasad S. Treatment of proliferative diabetic retinopathy with anti-VEGF agents. Acta Ophthalmologica 2011;89(5):405-411.
4 Zhou YD, Yoshida S, Peng YQ, Kobayashi Y, Zhang LS, Tang LS.Diverse roles of macrophages in intraocular neovascular diseases: a review. Int J Ophthalmol 2017;10(12):1902-1908.
5 Mantovani A, Sica A, Sozzani S, Allavena P, Vecchi A, Locati M.The chemokine system in diverse forms of macrophage activation and polarization. Trends Immunol 2004;25(12):677-686.
6 Mantovani A, Biswas SK, Galdiero MR, Sica A, Locati M. Macrophage plasticity and polarization in tissue repair and remodelling. J Pathol 2013;229(2):176-185.
7 Zhou YD, Yoshida S, Nakao S, Yoshimura T, Kobayashi Y, Nakama T,Kubo Y, Miyawaki K, Yamaguchi M, Ishikawa K, Oshima Y, Akashi K,Ishibashi T. M2 macrophages enhance pathological neovascularization in the mouse model of oxygen-induced retinopathy. Invest Ophthalmol Vis Sci 2015;56(8):4767-4777.
8 Conway SJ, Izuhara K, Kudo Y, Litvin J, Markwald R, Ouyang GL,Arron JR, Holweg CTJ, Kudo A. The role of periostin in tissue remodeling across health and disease. Cell Mol Life Sci 2014;71(7):1279-1288.
9 Yoshida S, Nakama T, Ishikawa K, Nakao S, Sonoda KH, Ishibashi T.Periostin in vitreoretinal diseases. Cell Mol Life Sci 2017;74(23):4329-4337.
10 Kobayashi Y, Yoshida S, Nakama T, Zhou YD, Ishikawa K, Arita R,Nakao S, Miyazaki M, Sassa Y, Oshima Y, Izuhara K, Kono T, Ishibashi T. Overexpression of CD163 in vitreous andfibrovascular membranes of patients with proliferative diabetic retinopathy: possible involvement of periostin. Br J Ophthalmol 2015;99(4):451-456.
11 Yoshida S, Kobayashi Y, Nakama T, Zhou YD, Ishikawa K, Arita R,Nakao S, Miyazaki M, Sassa Y, Oshima Y, Izuhara K, Kono T, Ishibashi T. Increased expression of M-CSF and IL-13 in vitreous of patients with proliferative diabetic retinopathy: implications for M2 macrophageinvolving fibrovascular membrane formation. Br J Ophthalmol 2015;99(5):629-634.
12 Yoshida S, Ishikawa K, Asato R, Arima M, Sassa Y, Yoshida A,Yoshikawa H, Narukawa K, Obika S, Ono J, Ohta S, Izuhara K, Kono T,Ishibashi T. Increased expression of periostin in vitreous andfibrovascular membranes obtained from patients with proliferative diabetic retinopathy.Invest Ophthalmol Vis Sci 2011;52(8):5670-5678.
13 Nakama T, Yoshida S, Ishikawa K, Kubo Y, Kobayashi Y, Zhou YD,Nakao S, Hisatomi T, Ikeda Y, Takao K, Yoshikawa K, Matsuda A, Ono J,Ohta S, Izuhara K, Kudo A, Sonoda KH, Ishibashi T. Therapeutic effect of novel single-stranded RNAi agent targeting periostin in eyes with retinal neovascularization. Mol Ther Nucleic Acid 2017;6:279-289.
14 Zhou WC, Ke SQ, Huang Z, Flavahan W, Fang XG, Paul J, Wu L,Sloan AE, McLendon RE, Li XX, Rich JN, Bao SD. Periostin secreted by glioblastoma stem cells recruits M2 tumour-associated macrophages and promotes malignant growth. Nat Cell Biol 2015;17(2):170-182.
15 Masuoka M, Shiraishi H, Ohta S, Suzuki S, Arima K, Aoki S, Toda S,Inagaki N, Kurihara Y, Hayashida S, Takeuchi S, Koike K, Ono J, Noshiro H, Furue M, Conway SJ, Narisawa Y, Izuhara K. Periostin promotes chronic allergic Inflammation in response to Th2 cytokines. J Clin Invest 2012;122(7):2590-2600.
16 Nakajima M, Honda T, Miyauchi S, Yamazaki K. Th2 cytokines efficiently stimulate periostin production in gingival fibroblasts but periostin does not induce an inflammatory response in gingival epithelial cells. Arch Oral Biol 2014;59(2):93-101.
17 Roesch K, Jadhav AP, Trimarchi JM, Stadler MB, Roska B, Sun BB,Cepko CL. The transcriptome of retinal Müller glial cells. J Comp Neurol 2008;509(2):225-238.
18 Wang J, He C, Zhou T, Huang ZJ, Zhou LL, Liu XL. NGF increases VEGF expression and promotes cell proliferation via ERK1/2 and AKT signaling in Müller cells. Mol Vis 2016;22:254-263.
19 Sonnenberg-Riethmacher E, Miehe M, Riethmacher D. Promotion of periostin expression contributes to the migration of Schwann cells. J Cell Sci 2015;128(17):3345-3355.
20 Shimamura M, Taniyama Y, Katsuragi N, Koibuchi N, Kyutoku M, Sato N, Allahtavakoli M, Wakayama K, Nakagami H, Morishita R. Role of central nervous system periostin in cerebral ischemia. Stroke 2012;43(4):1108-1114.
21 Connor KM, Krah NM, Dennison RJ, Aderman CM, Chen J, Guerin KI, Sapieha P, Stahl A, Willett KL, Smith LEH. quantification of oxygeninduced retinopathy in the mouse: a model of vessel loss, vessel regrowth and pathological angiogenesis. Nat Protoc 2009;4(11):1565-1573.
22 Yamaji Y, Yoshida S, Ishikawa K, Sengoku A, Sato K, Yoshida A, Kuwahara R, Ohuchida K, Oki E, Enaida H, Fujisawa K, Kono T, Ishibashi T. TEM7 (PLXDC1) in neovascular endothelial cells of fibrovascular membranes from patients with proliferative diabetic retinopathy. Invest Ophthalmol Vis Sci 2008;49(7):3151-3157.
23 Ishikawa K, Yoshida S, Nakao S, Sassa Y, Asato R, Kohno R, Arima M, Kita T, Yoshida A, Ohuchida K, Ishibashi T. Bone marrow-derived monocyte lineage cells recruited by MIP-1β promote physiological revascularization in mouse model of oxygen-induced retinopathy. Lab Invest 2012;92(1):91-101.
24 Limb GA, Salt TE, Munro PM, Moss SE, Khaw PT. In vitro characterization of a spontaneously immortalized human Müller cell line(MIO-M1). Invest Ophthalmol Vis Sci 2002;43(3):864-869.
25 Cui D, Huang ZJ, Liu YF, Ouyang GL. The multifaceted role of periostin in priming the tumor microenvironments for tumor progression.Cell Mol Life Sci 2017;74(23):4287-4291.
26 Park SY, Piao Y, Jeong KJ, Dong J, de Groot JF. Periostin (POSTN)regulates tumor resistance to antiangiogenic therapy in glioma models.Mol Cancer Ther 2016;15(9):2187-2197.
27 Lee JI. Role of periostin in hepatocellular carcinoma: the importance of tumor microenvironment. Gut Liver 2016;10(6):871-872.
28 Asano T, Kanemitsu Y, Takemura M, et al. Serum periostin as a biomarker for comorbid chronic rhinosinusitis in patients with asthma.Ann Am Thorac Soc 2017;14(5):667-675.
29 James A, Janson C, Malinovschi A, Holweg C, Alving K, Ono J, Ohta S,Ek A, Middelveld R, Dahlén B, Forsberg B, Izuhara K, Dahlén SE. Serum periostin relates to type-2 Inflammation and lung function in asthma: data from the large population-based cohort Swedish GA(2)LEN. Allergy 2017;72(11):1753-1760.
30 Conway SJ, Doetschman T, Azhar M. The inter-relationship of periostin, TGFβ, and BMP in heart valve development and valvular heart diseases. ScientificWorldJournal 2011;11:1509-1524.
31 Devrim AK, Sozmen M, Devrim T, Sudagidan M, Cinar M, Kabak YB.Periostin normalizes levels of cardiac markers in rats with experimental isoproterenol cardiotoxicity. Bratisl Lek Listy 2017;118(11):705-709.
32 Hwang JH, Yang SH, Kim YC, Kim JH, An JN, Moon KC, Oh YK,Park JY, Kim DK, Kim YS, Lim CS, Lee JP. Experimental inhibition of periostin attenuates kidneyfibrosis. Am J Nephrol 2018;46(6):501-517.
33 François H, Chatziantoniou C. Renal fibrosis: recent translational aspects. Matrix Biol 2018;68:318-332.
34 Eastlake K, Banerjee PJ, Angbohang A, Charteris DG, Khaw PT, Limb GA. Müller glia as an important source of cytokines and inflammatory factors present in the gliotic retina during proliferative vitreoretinopathy.Glia 2016;64(4):495-506.
35 Nakama T, Yoshida S, Ishikawa K, Kobayashi Y, Zhou Y, Nakao S,Sassa Y, Oshima Y, Takao K, Shimahara A, Yoshikawa K, Hamasaki T,Ohgi T, Hayashi H, Matsuda A, Kudo A, Nozaki M, Ogura Y, Kuroda M,Ishibashi T. Inhibition of choroidalfibrovascular membrane formation by new class of RNA interference therapeutic agent targeting periostin. Gene Therapy 2015;22(2):127-137.
36 Zandi S, Nakao S, Chun KH, Fiorina P, Sun D, Arita R, Zhao M, Kim E, Schueller O, Campbell S, Taher M, Melhorn MI, Schering A, Gatti F,Tezza S, Xie F, Vergani A, Yoshida S, Ishikawa K, Yamaguchi M, Sasaki F, Schmidt-Ullrich R, Hata Y, Enaida H, Yuzawa M, Yokomizo T, Kim YB, Sweetnam P, Ishibashi T, Hafezi-Moghadam A. ROCK-isoformspecific polarization of macrophages associated with age-related macular degeneration. Cell Rep 2015;10(7):1173-1186.
37 Liu Y, Li F, Gao F, Xing LX, Qin P, Liang XX, Zhang JJ, Qiao XH, Lin LZ, Zhao Q, Du LF. Periostin promotes tumor angiogenesis in pancreatic cancer via Erk/VEGF signaling. Oncotarget 2016;7(26):40148-40159.
38 Hu F, Shang XF, Wang W, Jiang W, Fang C, Tan D, Zhou HC. Highlevel expression of periostin is significantly correlated with tumour angiogenesis and poor prognosis in osteosarcoma. Int J Exp Pathol 2016;97(1):86-92.
39 Lu M, Tian H, Yue WM, Li L, Li SH, Qi L, Hu WS, Gao C, Si LB.Overexpression of TFIIB-related factor 2 is significantly correlated with tumor angiogenesis and poor survival in patients with esophageal squamous cell cancer. Med Oncol 2013;30(2):553.
40 Zhang Z, Nie FF, Chen XL, Qin ZL, Kang CF, Chen B, Ma JX, Pan BL, Ma YG. Upregulated periostin promotes angiogenesis in keloids through activation of the ERK 1/2 and focal adhesion kinase pathways, as well as the upregulated expression of VEGF and angiopoietin-1. Mol Med Report 2015;11(2):857-864.
41 Naug HL, Browning J, Gole GA, Gobe G. Vitreal macrophages express vascular endothelial growth factor in oxygen-induced retinopathy.Clin Exp Ophthalmol 2000;28(1):48-52.
42 Nagineni CN, Kommineni VK, William A, Detrick B, Hooks JJ.Regulation of VEGF expression in human retinal cells by cytokines:implications for the role of inflammation in age-related macular degeneration. J Cell Physiol 2012;227(1):116-126.
43 Peng YQ, Tang LS, Yoshida S, Zhou YD. Applications of CRISPR/Cas9 in retinal degenerative diseases. Int J Ophthalmol 2017;10(4):646-651.
