INTRODUCTION
G laucoma is a leading cause of irreversible blindness worldwide[1]. The condition is called “the silent thief of sight” due to its chronic progression without any notice,particularly primary open angle glaucoma (POAG). Studies have shown that early detection and early intervention are the best ways to prevent vision loss[2]. Therefore, it is of great importance to recognize early glaucoma progression.
Elevated intraocular pressure (IOP) is the most important risk factor for glaucoma progression[3]. However, it is unethical and difficult to study the effects of elevated IOP on damaged fundus in human beings instead of treatment. Compared with rodents, monkeys and humans have close phylogeny and high homology[4]; therefore, the rhesus monkey was used in our study. Previous studies have shown that laser photocoagulation of the trabecular meshwork can be used to induce IOP elevation in monkeys, which is an ideal model to study the effect of elevated IOP and to investigate glaucoma progression[5-6].
Structural and functional damages are seen in early glaucoma or glaucoma progression detection during clinical practice,in which optic coherence tomography (OCT) and visual field (VF) are most widely used[7-9]. Studies have shown that structural changes can be detected earlier than functional change[8-9]. With the maturation of big data collection methods,it is easy to get large amounts of data from various devices;however, analyzing and applying them in clinical practice is challenging.
Many studies have been conducted to characterize the structural progression under cumulative high IOP, and various apparatus with various parameters have been used, such as OCT, confocal laser scanning ophthalmoscope (CLSO),scanning laser perimetry (SLP), etc[10-13]. However, regarding RNFL thickness analysis, the “average RNFL thickness” has been commonly used, which is an overall parameter without considering the separate changes occurring in each quadrant of the peripapillary RNFL thickness[5,10,12-13]. Moreover,some studies have made comparisons of some parameters from different apparatus[11]. In clinical practice, it might be more helpful for us to achieving a thorough understanding of the earlier progression trend of each parameter, and to understanding the effect of elevated IOP on the early progression of parameters from fundus scanning, and to conducting the earlier intervention.
Our research group has successfully established stable chronic high IOP monkey models with similar laser photocoagulation of the trabecular meshwork[14]. In this study, we conducted a full analysis of the progression of different parameters of OCT in a longitudinal study with trend analysis and relative longterm follow-up. The aim of this study was to determine the performance of progression detection of each parameter, which may offer guidance in applying various OCT parameters for glaucomatous monitoring in clinical practice.
MATERIALS AND METHODS
Ethical Approval This study strictly adhered to the ARVO Statement for the Use of Animals in Ophthalmic and Vision Research. It was approved and monitored by the Institutional Animal Care and Use Committee of Zhongshan Ophthalmic Center.
Materials Seven healthy adult rhesus monkeys (Blue Island Biological Technology Co., Ltd., of Guangdong, Guangzhou,China, Qualification), with initial body weights of 7-12 kg and initial ages of 5-6y, were used in this study. Before creating models, monkeys were examined using various tests to confirm the healthy state of their eyes, including slit-lamp microscopy(Topcon, SL-D7, Japan), gonioscopic examination (Volk G-1 trabeculum, Volk Optical, Inc., Mentor, OH, USA), fundus photography (TRC-50DX Retinal Camera; Topcon, Tokyo,Japan), OCT (Stratus OCT, Carl Zeiss Meditec, Dublin, CA,USA), and Tono-Pen XL tonometry (Reichert, Depew, NY, USA).
Establishment of the Model Detailed descriptions of model establishment have been previously published[14].Briefly, after anesthesia, laser-dedicated gonioscopy (Volk,G-1 Trabeculum, USA), multiwavelength solid-state lasers and associated multiplier slit-lamp microscopes (VISULAS Trion & LSL Trion Laser Slit Lamp, Carl Zeiss Meditec AG,Goeschwitzer Strasse, Jena, Germany) were used to perform 360° photocoagulation in the functional trabecular meshwork area of each eye in all subjects. The laser spot size was 50 μm in diameter, and the settings were 1200 W for 0.5s. Laser parameters were adjusted to obtain a visible reaction in the trabecular meshwork, most often a bubble formation. Eighty to 120 spots were created per treatment. Daily application of tobramycin dexamethasone eye drops (TobraDex, Alcon,USA) was performed once a day after each laser procedure for two weeks. Inclusion criteria: the eyes with IOP consistently between 25-40 mm Hg for more than 8wk were included for further analysis.
Intraocular Pressure Measurement After laser photocoagulation,Tono-PenXL was used for the measurement of IOP. During the first 2wk after laser treatment, the IOP was monitored every week, and then biweekly. The apparatus was corrected before each measurement, the IOP measurements were taken 4 times,and the average data were regarded as the IOP of the day. If the IOP was not consistently higher than 25 mm Hg within a week,additional laser treatment was performed until stable ocular hypertension was achieved. The IOPs of recruited monkeys were between 25-40 mm Hg.
Fundus and Optic Coherence Tomography Examinations
Animals were anesthetized with an intramuscular injection of ketamine hydrochloride (10-20 mg/kg, Ketalar 50®, GuTian Pharmaceuticals Ltd., Fujian, China) plus chlorpromazine hydrochloride (3.5 mg/kg, Ketalar 50®, GuTian Pharmaceuticals Ltd, Fujian, China). Pupils were dilated using one drop of tropicamide compound (Mydrin-P, Santen Pharmaceutical Co.,Ltd., Japan) before fundus photography and OCT scanning.The bilateral fundus of each animal were photographed using an ocular fundus camera (TRC-50DX Retinal Camera; Topcon,Tokyo, Japan) before and after laser photocoagulation to record the overall findings of the optic nerve head (ONH), such as cupping, rim hemorrhage, and other features. At the same time,eyes were scanned by commercially available Stratus OCT(Carl Zeiss Meditec, Dublin, CA, USA) biweekly. Timolol was used for lowering the IOP before OCT scanning. The fast-scanning mode of peripapillary retinal nerve fiber layer(RNFL) thickness and the optic disc protocol were used for analysis. Artificial tears were applied if necessary to maintain the wetness of the ocular surface. At each imaging record, at least two images were acquired from each subject to achieve the best focus. The image with the higher quality was selected for analysis.
Protocol and Parameters
Fast retinal nerve fiber layer scanning Each image consisted of 3 sets of 256 A-scans along a 3.4-mm diametercircumpapillary scan centered at the ONH. Under its RNFL analysis protocol, the device automatically determines the RNFL anterior and posterior boundaries, peripapillary RNFL thickness parameters, including average thickness (360°),superior, nasal, inferior, and temporal quadrant thickness,were recorded and evaluated in this study. These values were provided in the printout after averaging the results of 3 sequential circular scans captured during acquisition[15].
Figure 1 Enlargement of the cup on the ONH in chronic high IOP monkey models A to D present the original fundus photos taken before and 10, 20, and 28wk after laser coagulation, respectively. Photos were overlapped with the lining of the optic cup, which is easily detected under slit lamp combined with lens. A: The ONH before laser coagulation, with a cup to disc ratio (C/D) of 0.3; B: The progression at 10wk after high IOP, C/D=0.6; C, D: The late stages of glaucoma progression at 20 and 28wk after high IOP, respectively, with C/D ratios of approximately 0.8-0.9. Black arrows show the bending of blood vessels on the optic disc. White arrows show the interruption of capillary blood vessels on the optic disc.
Fast optic disc scanning A set of 6 radial intersecting line scans, each at 30-degree intervals, were obtained in a single alignment and capture operation such that each clock hour of the optic nerve was scanned. The topography of the entire optic disc was computed by interpolating to fill the gaps between radial linear scans[16]. From all of the parameters of the printout, the three representative optic disc parameters of cup area, rim area and cup to disc (C/D) area ratio were selected for analysis.
Cup area: surface area bounded by the outline of the optic cup;this outline is determined by locating the cup diameter in each linear scan by a line that is located 150 μm anterior to the disc diameter line and connecting the cup diameter marker for each clock hour. Rim area: surface area calculated by subtracting the cup area from the disc area. C/D area ratio: ratio of the cup area to the disc area.
All of the above-mentioned parameters from both protocols were recorded to analyze their changes with increased IOP and follow-up duration.
Statistical Methods R software package 3.3.2 (R Foundation for Statistical Computing, Vienna) was used for all of the analyses. The linear mixed-effects model was used for analyzing the time point at which statistically significant changes developed for all of the parameters, including the average and four-quadrant RNFL thickness, cup area, rim area, and C/D area ratio, with the elevated IOP and follow-up duration. Two nested random factors were introducing into our model since repeated measures were made on the same eye,and two eyes were sometimes measured from the same subject.
RESULTS
Chronic elevated IOP animal models were successfully established by laser photocoagulation of the trabecular meshwork on ten eyes of 7 monkeys (both pairs of eyes from 3 monkeys and single eyes from the other monkeys).The demographic characteristics of the involved rhesus monkeys are shown in Table 1. The appearance of ONH and the peripapillary RNFL thickness change at corresponding time points are shown in Figures 1 and 2, respectively. As time progressed, the optic cup was enlarged, and the color of the ONH was pale, with distinctive bending or disrupture of capillary blood vessels. The RNFL thickness became thinner and thinner, with the characteristic “double hump” curve lowered as time progressed.
Parameters Before Laser Treatment Relevant parameters before laser treatment, including IOP and all of the selected parameters of OCT, are presented in Table 2. The normal IOP of rhesus monkeys is almost the same as that of human beings,with the average IOP being 17.6 mm Hg and ranging from 10.3 to 22 mm Hg.

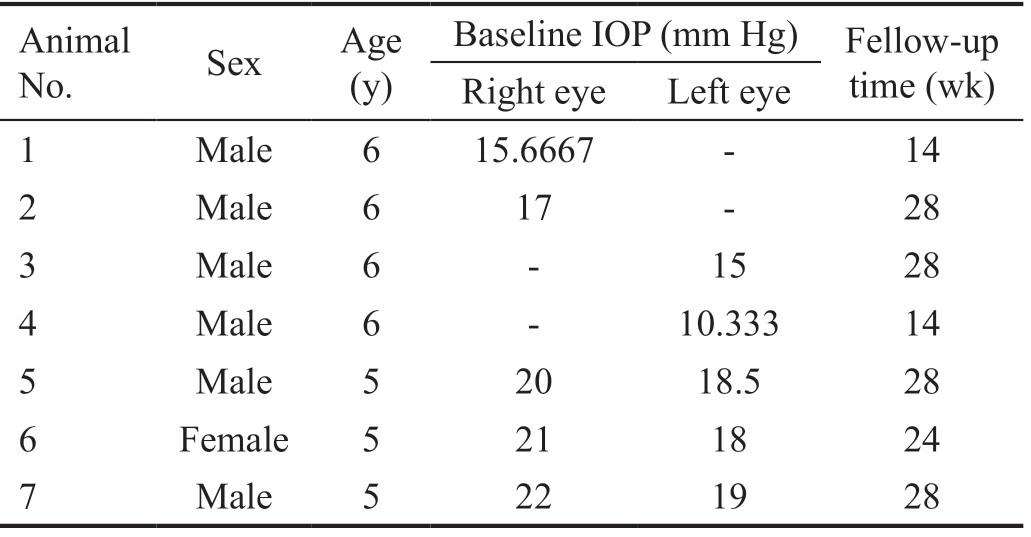

Table 1 The demographic characteristics of the involved rhesus monkeys
Animal No. Sex Age (y)Baseline IOP (mm Hg) Fellow-up time (wk)Right eye Left eye 1 Male 6 15.6667 - 14 2 Male 6 17 - 28 3 Male 6 - 15 28 4 Male 6 - 10.333 14 5 Male 5 20 18.5 28 6 Female 5 21 18 24 7 Male 5 22 19 28

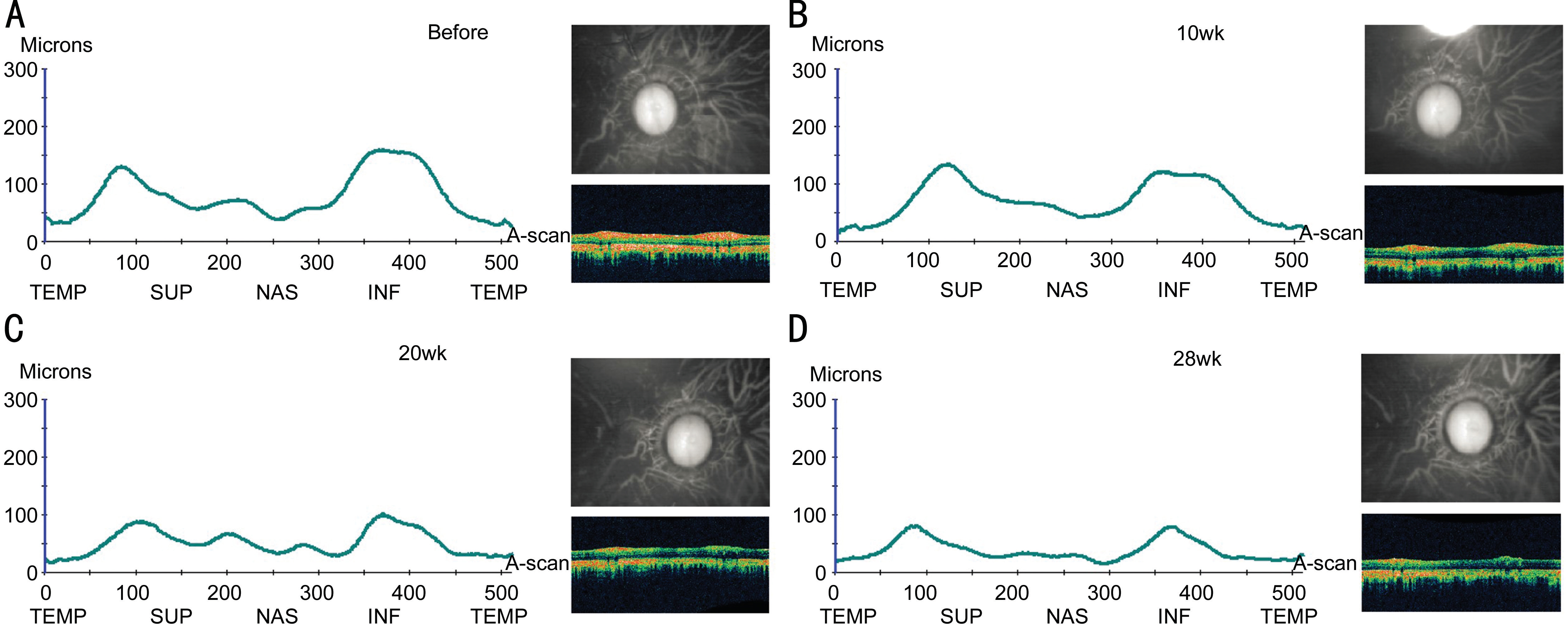

Figure 2 RNFL thickness changes in a chronic high IOP monkey model of disease progression with increased IOP and time duration A to D show the OCT reports taken before and 10, 20, and 28wk after laser coagulation, respectively. With increasing time from A to D, the RNFL thickness decreased, and the characteristic “double hump” curve became lower and lower.

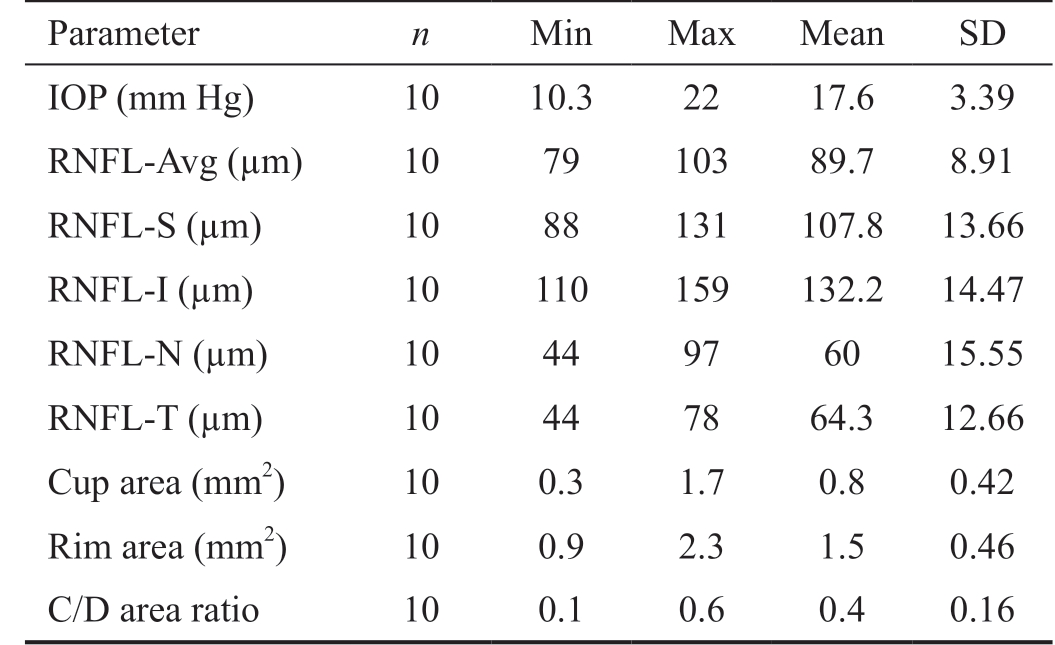

Table 2 Descriptive data of IOP and OCT parameters from rhesus monkeys before laser coagulation
RNFL: Retinal nerve fiber layer; RNFL-Avg: Average RNFL thickness; RNFL-S: Superior quadrant RNFL thickness; RNFL-I:Inferior quadrant RNFL thickness; RNFL-N: Nasal quadrant RNFL thickness; RNFL-T: Temporal quadrant RNFL thickness; C/D area ratio: Cup to disc area ratio.
Parameter n Min Max Mean SD IOP (mm Hg) 10 10.3 22 17.6 3.39 RNFL-Avg (µm) 10 79 103 89.7 8.91 RNFL-S (µm) 10 88 131 107.8 13.66 RNFL-I (µm) 10 110 159 132.2 14.47 RNFL-N (µm) 10 44 97 60 15.55 RNFL-T (µm) 10 44 78 64.3 12.66 Cup area (mm2) 10 0.3 1.7 0.8 0.42 Rim area (mm2) 10 0.9 2.3 1.5 0.46 C/D area ratio 10 0.1 0.6 0.4 0.16
Changes of Parameters Under Intraocular Pressure Elevation
The changes of OCT parameters in the 10th and 28th weeks after IOP elevation compared with their baseline data are shown in Table 3. The superior RNFL thickness was reduced by 25.333 µm at 10wk and 43.6 µm at 28wk compared with the baseline. The inferior RNFL thickness was reduced by 34.333 µm at 10wk and 64 µm at 28wk compared with the baseline.
Progression Trends of Various Parameters over Time After Establishment of the Model The follow-up time of recruited rhesus monkeys was 24±5.37wk after IOP elevation. As is shown in Figure 3, there was moderate elevation of IOP levels in monkeys of approximately 30-40 mm Hg.
The progression trends of RNFL thickness, including average, superior, inferior, nasal and temporal quadrant RNFL thickness, are shown in Figure 4. All of the thicknessparameters decreased with time. In the early stages, the RNFL thicknesses of the superior and inferior quadrants were larger than those of the other two quadrants, and they were severely damaged compared with the others. After 16wk, the progression trends of all parameters became slow, possibly due to the “floor effect” of RNFL thickness damage.

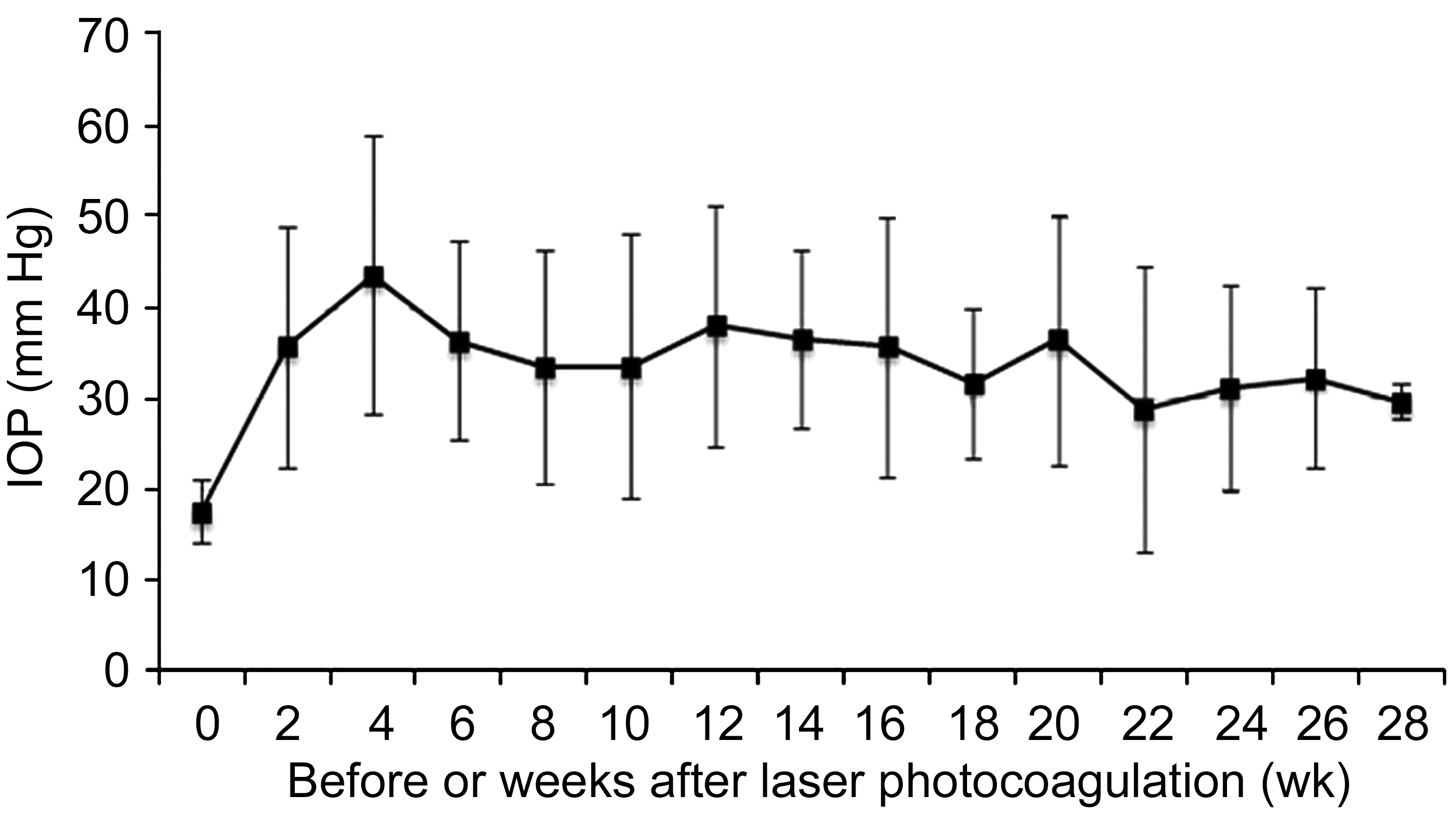

Figure 3 Means and standard deviations of IOP before and after establishment of the high IOP model in rhesus monkeys On the horizontal axis, 0 represents the IOP before laser photocoagulation,and the other axis marks represent weeks after laser photocoagulation.

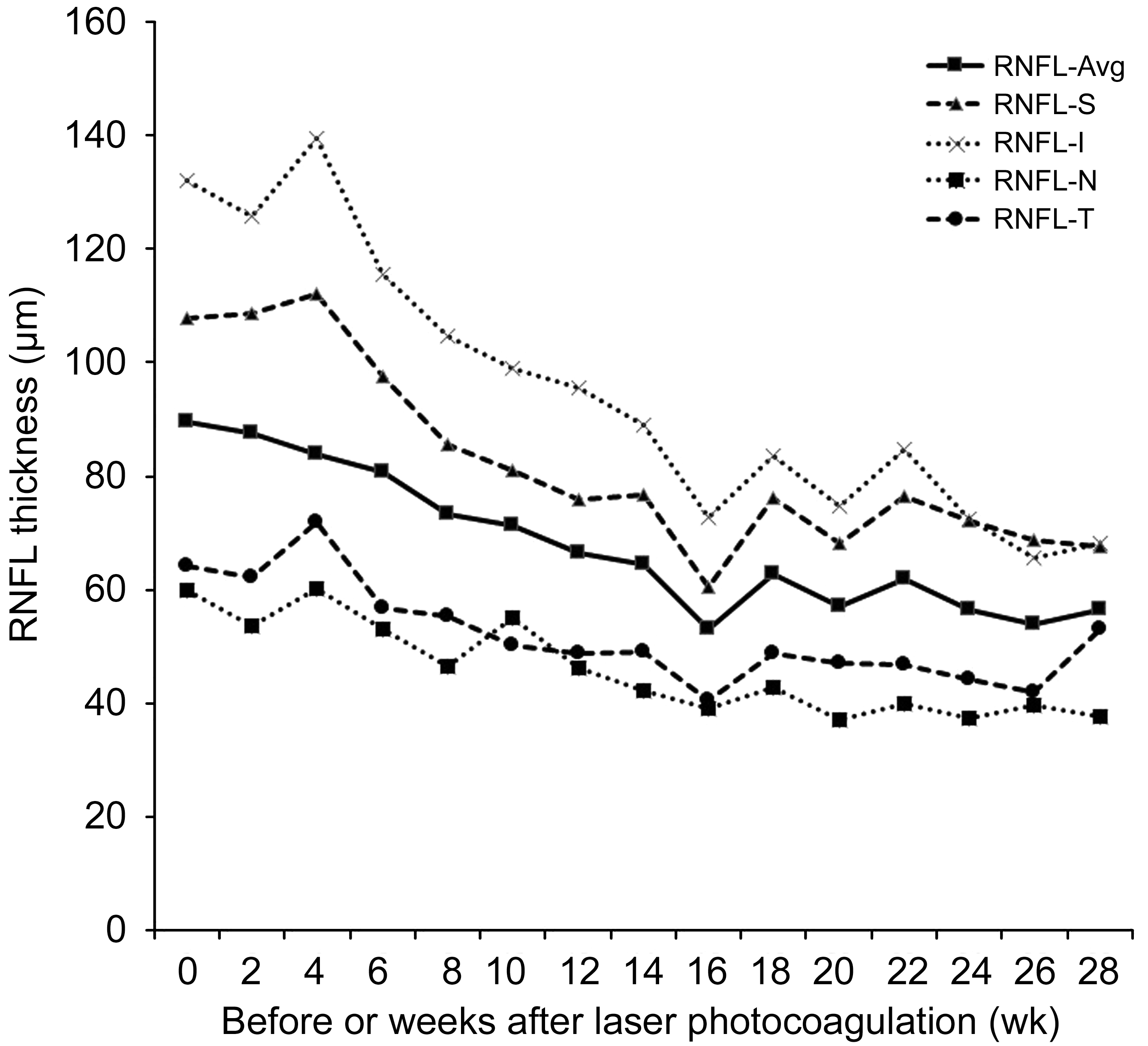

Figure 4 RNFL thicknesses before and after establishment of the high IOP model in rhesus monkeys On the horizontal axis, 0 represents the IOP before laser photocoagulation, and the other axis marks represent weeks after laser photocoagulation.

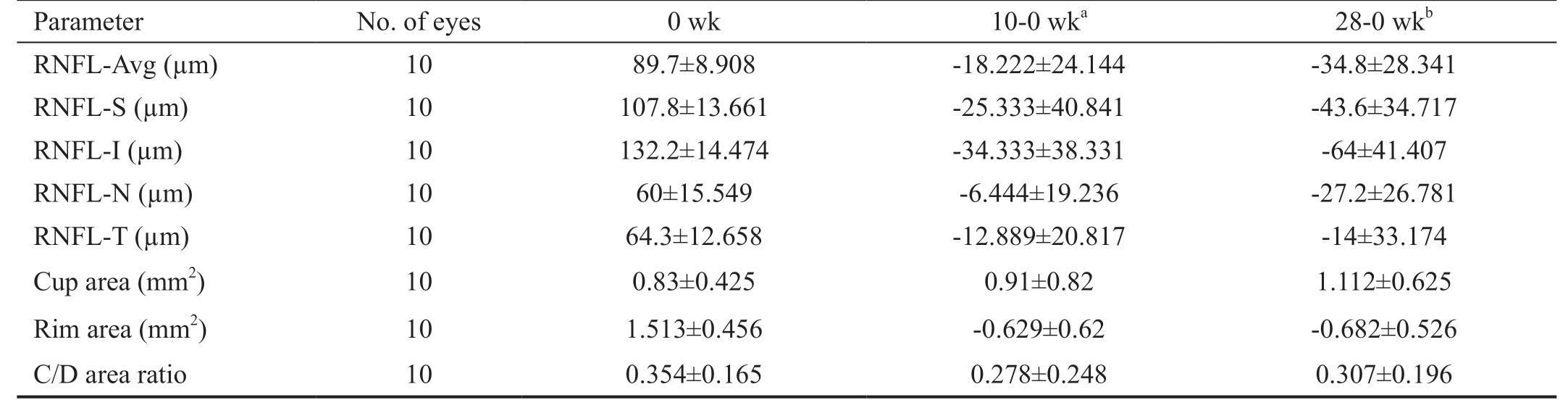

Table 3 Changes in OCT parameters in the 10th and 28th week after IOP elevation compared with the baseline data mean±SD
RNFL: Retinal nerve fiber layer; RNFL-Avg: Average RNFL thickness; RNFL-S: Superior quadrant RNFL thickness; RNFL-I: Inferior quadrant RNFL thickness; RNFL-N: Nasal quadrant RNFL thickness; RNFL-T: Temporal quadrant RNFL thickness; C/D area ratio: Cup to disc area ratio. aChanges of each parameters at 10th week compared with baseline; bChanges of each parameters at 28th week compared with baseline.
Parameter No. of eyes 0 wk 10-0 wka 28-0 wkb RNFL-Avg (µm) 10 89.7±8.908 -18.222±24.144 -34.8±28.341 RNFL-S (µm) 10 107.8±13.661 -25.333±40.841 -43.6±34.717 RNFL-I (µm) 10 132.2±14.474 -34.333±38.331 -64±41.407 RNFL-N (µm) 10 60±15.549 -6.444±19.236 -27.2±26.781 RNFL-T (µm) 10 64.3±12.658 -12.889±20.817 -14±33.174 Cup area (mm2) 10 0.83±0.425 0.91±0.82 1.112±0.625 Rim area (mm2) 10 1.513±0.456 -0.629±0.62 -0.682±0.526 C/D area ratio 10 0.354±0.165 0.278±0.248 0.307±0.196

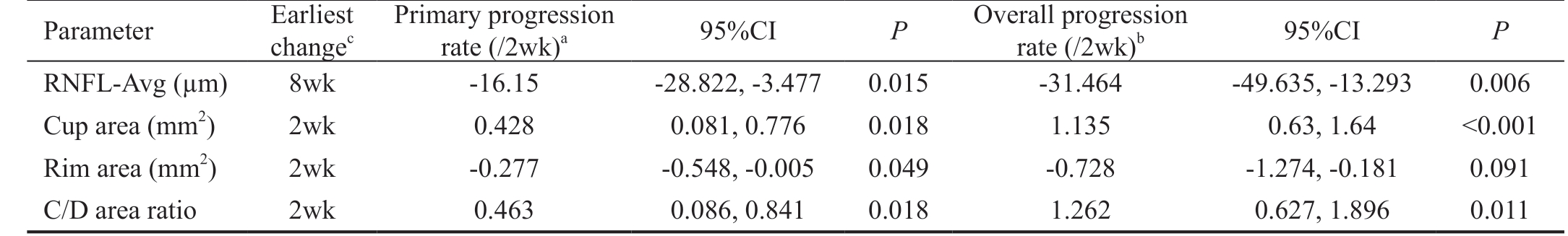

Table 4 Progression rates of parameters from OCT over time in the high IOP rhesus monkey model
RNFL-Avg: Average retinal nerve fiber layer thickness; C/D area ratio: Cup to disc area ratio. aThe primary progression rate till there is a statistically significant change; bThe entire progression rate until the last follow-up. cThe earliest time point that show statistically significant change.
Parameter Earliest changec Primary progression rate (/2wk)a 95%CI P Overall progression rate (/2wk)b 95%CI P RNFL-Avg (µm) 8wk -16.15 -28.822, -3.477 0.015 -31.464 -49.635, -13.293 0.006 Cup area (mm2) 2wk 0.428 0.081, 0.776 0.018 1.135 0.63, 1.64 ＜0.001 Rim area (mm2) 2wk -0.277 -0.548, -0.005 0.049 -0.728 -1.274, -0.181 0.091 C/D area ratio 2wk 0.463 0.086, 0.841 0.018 1.262 0.627, 1.896 0.011
Analysis of Relevant Parameters As is shown in Table 4, in the statistical trend analysis, we found the following results.First, the ONH analysis parameters, including cup area, rim area and C/D area ratio, were the first three parameters that presented statistically significant changes, which occurred 2wk after IOP elevation in monkeys. Second, quadrant RNFL thickness parameters, including superior, inferior, nasal and temporal quadrant RNFL thicknesses, were the next parameters to show statistically significant changes at 6wk after IOP elevation (Table 5). Compared with the superior RNFL thickness, the inferior and nasal RNFL thicknesses were significantly different, but with less influence. Finally, the average RNFL thickness was significantly changed at 8wk.
DISCUSSION
This study was designed to investigate the dynamic progression of structural parameters from OCT under IOP elevation.Representative parameters were analyzed in rhesus monkeys with chronic elevated IOP with 28wk of follow-up. We found that with cumulative IOP elevation and follow-up duration,parameters from ONH analysis, including cup area, rim area and C/D area ratio, were the first three parameters to show statistically significant differences as early as 2wk after IOP elevation. RNFL thicknesses, including both average and quadrant RNFL thicknesses, were damaged later under highIOP. These facts suggest that more attention should be paid to these three parameters instead of RNFL thickness during clinical practice, especially for ocular hypertension patients,as these changes might occur at early stages of glaucomatous fundus damage.

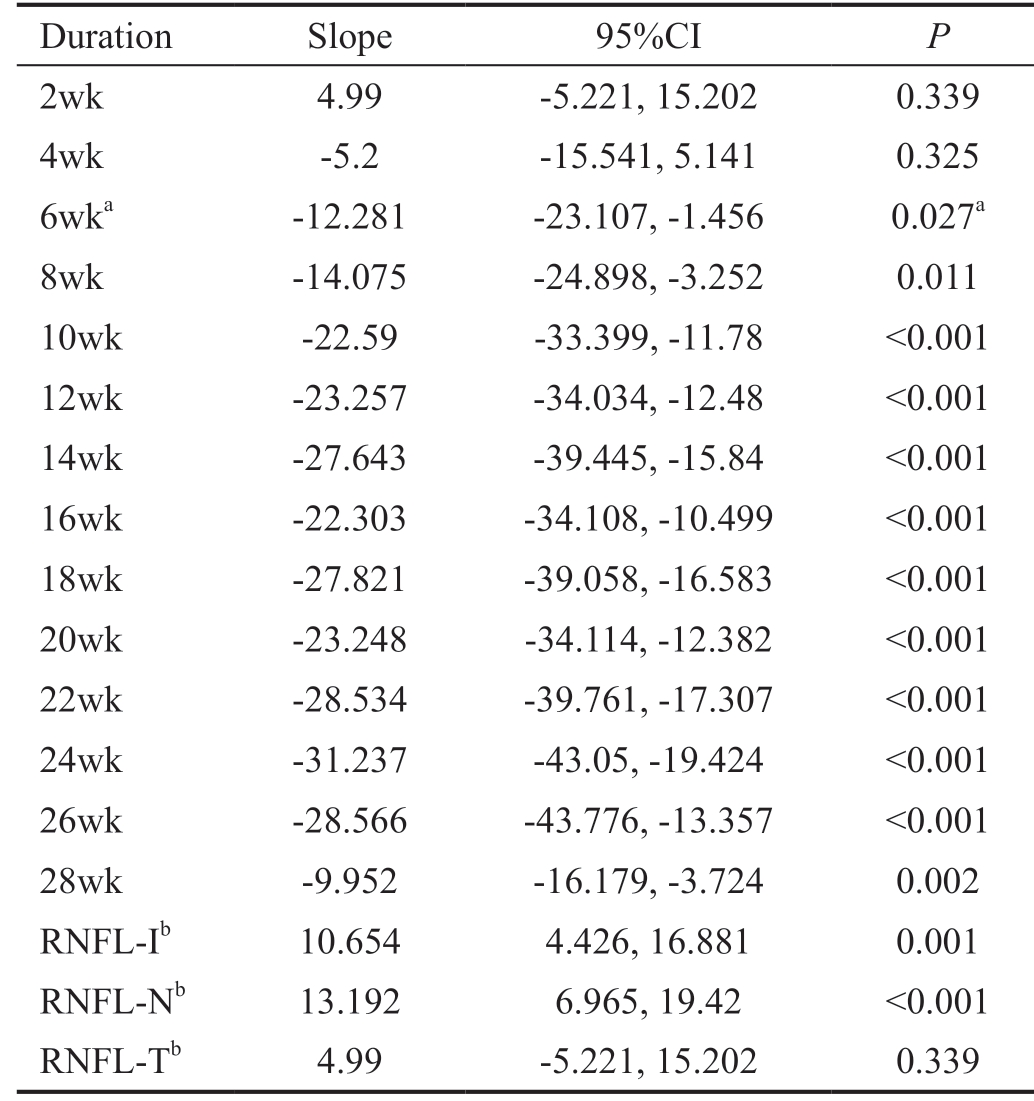

Table 5 Comparison of the progression rates of different quadrant RNFL thicknesses over time in the high IOP rhesus monkey model
RNFL: Retinal nerve fiber layer; RNFL-I: Inferior quadrant RNFL thickness; RNFL-N: Nasal quadrant RNFL thickness; RNFL-T:Temporal quadrant RNFL thickness. aThe RNFL thickness began to have significant change at 6wk after high IOP; bThis parameter was compared with the superior RNFL thickness.
Duration Slope 95%CI P 2wk 4.99 -5.221, 15.202 0.339 4wk -5.2 -15.541, 5.141 0.325 6wka -12.281 -23.107, -1.456 0.027a 8wk -14.075 -24.898, -3.252 0.011 10wk -22.59 -33.399, -11.78 ＜0.001 12wk -23.257 -34.034, -12.48 ＜0.001 14wk -27.643 -39.445, -15.84 ＜0.001 16wk -22.303 -34.108, -10.499 ＜0.001 18wk -27.821 -39.058, -16.583 ＜0.001 20wk -23.248 -34.114, -12.382 ＜0.001 22wk -28.534 -39.761, -17.307 ＜0.001 24wk -31.237 -43.05, -19.424 ＜0.001 26wk -28.566 -43.776, -13.357 ＜0.001 28wk -9.952 -16.179, -3.724 0.002 RNFL-Ib 10.654 4.426, 16.881 0.001 RNFL-Nb 13.192 6.965, 19.42 ＜0.001 RNFL-Tb 4.99 -5.221, 15.202 0.339
In the normal human eye, RNFL thickness showed a doublehump pattern, with relatively similar superior and inferior peaks and with temporal and nasal troughs[17]. This structure was confirmed in both in vivo imaging[18] and normal histologic eyes[17], while in glaucomatous eyes, the bulk of glaucomatous damage to the RNFL thickness occurs in the superior and inferior quadrants[19-21]. Our study shows a similar tendency in glaucomatous monkeys, as the superior and inferior RNFL thicknesses were initially reduced compared with other quadrants. Previous studies suggested that superior and inferior parts of the lamina at the level of the sclera appeared to contain larger pores and thinner connective tissue support for the passage of nerve-fiber bundles (i.e. dense arcuate retinal ganglion cell axons) than the nasal and temporal parts of the lamina[22-23]. These areas are more susceptible to glaucomatous damage, such as IOP elevation, which might explain the characteristic pattern of early glaucomatous field loss.
Early diagnosis or detection of glaucomatous progression is critical for taking effective measures for visual function protection. However, it is difficult to observe the process of progression from the eye's normal state to glaucomatous damage (the earliest change) in patients. Structural and functional examinations are two effective procedures for monitoring and evaluation of glaucoma[7-9]. OCT has been shown to obtain accurate and reproducible RNFL and retinal thickness measurements that correspond to histomorphometric measurements of the same tissues[24-25]. Wollstein et al[26] found that OCT is more sensitive for showing glaucomatous damage compared with VF. Another longitudinal study[9] demonstrated that the average and inferior quadrant RNFL thicknesses showed statistically significant changes compared with other parameters during glaucoma progression, which partially corresponded with our results.
There are many parameters on OCT reports, but it is difficult to differentiate normal from abnormal results since there is no widely used database for rhesus monkeys. In our study, the glaucomatous damage was detected by trend analysis, in which the baseline state was compared with the progression process itself. Moreover, this method removes the effects of individual differences. With trend analysis, we obtained progression rates up to half a year (28wk), and all selected parameters showed statistically significant progression (P＜0.05). The knowledge of these progression rates contributes to understanding the process of glaucomatous fundus damage under IOP elevation,which is impossible for us to study in human beings.
Regarding the changes of ONH under IOP elevation, several researchers have analyzed relevant parameters by HRT or SD-OCT and discovered that the rim area was significant in patients with glaucoma progression[27-28]. In our study, the representative parameters of ONH, including cup area, rim area and C/D area ratio, were decreased at 2wk after IOP elevation.It is reasonable that the damage occurred first on ONH and then progressed to the RNFL. Therefore, we suggest that in clinical practice, parameters from ONH should be prioritized over other parameters scanned by OCT[27-28].
There are some inconsistencies between the results of our study on monkeys and other studies on patients. In addition to the species difference, the reason for these inconsistencies might be that glaucomatous progression in patients may be far more complex than a single high IOP effect, including ischemia of the optic nerve, low infusion, primary or secondary inflammation or immune mechanisms, intraocular growth factors, ROS, and other contributing factors, which might have some influence on RNFL thickness or ONH. At the late stage of glaucomatous optic neuropathy, inflammation or immune-related signaling pathways, including autophagy activity[29] and apoptosis,might lead to secondary optic nerve damage to accompany the primary damage. Therefore, our study revealed the pure effects of high IOP on glaucomatous structural changes at very early stages, which might help us identify the real damage of single elevated IOP to the fundus. Additionally, our study shows the process from a normal state to a glaucomatous damaged state,other than the progression from an early stage to a late stage of disease, as later stages might involve some of the other abovementioned complex mechanisms.
In summary, our study used trend-based analysis to investigate longitudinally the effects of chronic elevated IOP on OCT parameters with a rhesus monkey model induced by laser photocoagulation of the trabecular meshwork, which lay an experimental basis for the further study of the contributions of glaucomatous structural, functional and molecular biological damage in glaucoma. In addition, the detection of the progression of each parameter under cumulative IOP elevation provides guidance for glaucomatous monitoring during clinical practice.
