Citation: Tao YJ, Chen Q, Wang L, Yang X, Cun Q, Yang WY, Zhong H.
Pirfenidone suppresses the abnormal activation of human Müller cells after
platelet-derived growth factor-BB stimulation. Int J Ophthalmol 2019;12(7):1075-1082
DOI:10.18240/ijo.2019.07.04
·Basic Research·
Pirfenidone suppresses the abnormal activation of human Müller cells after platelet-derived growth factor-BB stimulation
Yi-Jin Tao1, Qin Chen2, Li Wang2, Xiao Yang1, Qing Cun1, Wen-Yan Yang1, Hua Zhong1
1Department of Ophthalmology, the First Affiliated Hospital of Kunming Medical University, Kunming 650031, Yunnan Province, China
2Department of Ophthalmology, the First Affiliated Hospital of Nanjing Medical University, Nanjing 210029, Jiangsu Province, China
Co-first authors: Yi-Jin Tao and Qin Chen
Correspondence to: Hua Zhong. Department of Ophthalmology, the First Affiliated Hospital of Kunming Medical University, Kunming 650031, Yunnan Province, China. zhoculist@163.com
Received:
Abstract
AIM: To determine the effect of pirfenidone on the activated human Müller cells by platelet-derived growth factor-BB (PDGF-BB).
METHODS: The primary human Müller cells were separated from retinal tissues and established the pathogenic model by stimulated with PDGF-BB. The Müller cells behaviour of normal group and the model group was measured by MTT assay, Trypan blue assay, cell migration assay, and collagen contraction assay. The expression of transforming growth factor (TGF)-β1, -β2, and pigment epithelium-derived factor (PEDF) was estimated with real-time polymerase chain reaction (PCR), Western blot and immunofluorescence analyses.
RESULTS: A pathogenic/proliferative model of Müller cells was established by stimulating normal cultured Müller cells with 10 ng/mL PDGF-BB for 48h. After treated with 0.2 and 0.3 mg/mL pirfenidone, the proliferation, migration and collagen contraction was statistically significantly depressed in the model group compared with the normal groups. The expression levels of TGF-β1 and TGF-β2 were significantly down-regulated, while the PEDF expression was significantly up-regulated after treated with 0.2 and 0.3 mg/mL pirfenidone in the model group.
CONCLUSION: Pirfenidone effectively suppress the proliferation, migration and collagen contraction of the human Müller cells stimulated with PDGF-BB through down- regulation of TGF-β1/TGF-β2 and up-regulation of PEDF.
KEYWORDS: pirfenidone; Müller cells; platelet-derived growth factor-BB; transforming growth factor-β; proliferative vitreoretinopathy
DOI:10.18240/ijo.2019.07.04
Citation: Tao YJ, Chen Q, Wang L, Yang X, Cun Q, Yang WY, Zhong H. Pirfenidone suppresses the abnormal activation of human Müller cells after platelet-derived growth factor-BB stimulation. Int J Ophthalmol 2019;12(7):1075-1082
INTRODUCTION
As one type of retinal glial cells, the Müller cells play an important role in maintaining the normal function of eye retina[1]. On one hand, the active Müller cells can protect the endothelial cells and retinal neurons from cell death under stress through secreting neurotrophic factors, growth factors, and cytokines, and promote the regeneration of retina after injury. On the other hand, the out-of-control proliferation and hypertrophy of the Müller cells in response to pathogenic stimuli would lead to gliosis and produce glial scars, which may impede the normal self-repair and remodeling of retinal tissues and may further cause neurodegeneration diseases such as proliferative vitreoretinopathy (PVR).
The platelet-derived growth factor (PDGF) is a cytokine that participates in multiple physiological processes. It consists of four specific peptides (A/B/C/D chains), which can independently form AA, BB, CC, and DD dimers. It has been reported that the PDGF is essential for the disease development of PVR[2, 3]. Generally, the expression of PDGF-BB in normal retinal tissues is maintained in a low level. Whereas, when it comes to the gliosis condition, the pathogenic retinal tissues tend to express and release huge amounts of PDGF-BB, most part of which is derived from the Müller cells[2]. Moreover, it has been found that PDGF can act as chemokine and mitogen in the Müller cells and the retinal pigment epithelial cells; PDGF can induce the proliferation of Müller cells via activation of Jun N-terminal kinase (JNK), c-JNK and protein kinase B (Akt) signaling pathways[4].
Considering the critical role of Müller cells in the pathogenic progression of proliferative retinal diseases, the development of drugs to target Müller cells would be meaningful for clinical treatment. In a recent study, pirfenidone [5-methyl-1-phenyl-2-(1H)-pyridone] has been found to have an inhibitory effect on the proliferation, migration and collagen contraction of the human Tenon’s fibroblasts[5]. In addition, pirfenidone can also inhibit the migration, differentiation, and proliferation of the human retinal pigment epithelial cells[6]. However, it still remains unclear whether pirfenidone could have a similar inhibitory effect on the Müller cell gliosis. In this study, we established a pathogenic model by using the PDGF-BB to stimulate Müller cells in vitro, and explored the effect of pirfenidone on the proliferation, migration and collagen contraction potential of the model cells.
SUBJECTS AND METHODS
Ethical Approval The study was conducted in accordance with the Declaration of Helsinki and was approved by the Ethnic Committees of Kunming Medical University (KMU). All the eye retina samples from the donors were obtained with prior consent for research.
Culture of
the Human Müller Cells The human Müller cells were
isolated and cultured. The eye retina samples isolated from the donors were
washed three times in D-Hanks buffer and then digested in collagenase type I
(Sigma Aldrich, USA, C0130, final concentration: 200 U/mL) at
Identification of the Human Müller Cells by Immunochemical Analysis To identify the human Müller cells, the expression of the glial markers involving smooth muscle α-actin (α-SMA), glial fibrillary acidic protein (GFAP) and vimentin was respectively analyzed by immunochemical method. Briefly, about 1000 cells were cultured on 13ψ sterile cover glass overnight under normal culture condition. Next, the cover glass was washed twice by phosphate-buffered saline (PBS) and fixed in 4% paraformaldehyde (PFA) for 30min. Following PBS wash, the fixed cells were stained with anti-α-SMA antibody (Sigma Aldrich, USA, A5228), anti-GFAP antibody (Sigma Aldrich, USA, G3893) and anti-vimentin (Sigma Aldrich, USA, V4630) followed by the relative secondary antibodies. Finally, the cells were restained by hematoxylin until most cell nucleus could be observed obviously under microscope.
Establishment of the Pathogenic Müller Cell Model To establish the pathogenic model, the normal Müller cells were treated with 10 ng/mL PDGF-BB (GIBCO, USA, PHG0046) for 48h and then harvested for further experiments. The cells treated with PDGF-BB were named model group.
MTT Assay After cultured in 96-well plates for 24h in the incubator, the normal and model group Müller cells were respectively treated with 0, 0.01, 0.1, 0.2, 0.3, and 1 mg/mL pirfenidone (Santa Cruz, USA, 53179-13-8, dissolved in carboxymethylcellulose solution) for 6, 12, 24, 48, and 72h. The group without any treatment (added with the same volume of DMEM/10% FBS as the pirfenidone solution) was performed as blank control, while the group treated with the drug vehicle was performed as negative control. All these groups were performed in triplicate and tested by MTT kit (Sigma Aldrich, USA, 11465007001). The absorbance of each group was examined at 570 nm light wave. The cell proliferation rate was determined by optical density (OD; treatment group)/OD (blank group). The optimal treatment concentration (IC50) was calculated for further experiments.
Trypan Blue Dyeing Assay After treatment by the optimal pirfenidone concentration at the optimal time point, the cells were harvested and stained by Trypan blue (9 drops of cell suspension with 1 drop of Trypan blue). The numbers of the vital and the dead cells were counted under microscope. The cell death rate was calculated by the number of the dead cells/the number of the total cells. The group without any treatment was performed as blank control, while the group treated with the drug vehicle was performed as negative control.
Cell Migration Assay (Wound Healing Assay) The normal and model group cells were cultured in 6-well plates. When the cells grew into 90%-100% confluent, serum was deprived for 24h. Then, the medium was removed, and 100 μL pipette tips were used to scratch vertically in each well. Next, the fall-off cells were washed by PBS twice. After that, the whole culture medium containing the optimal concentration of pirfenidone was added. The cells and the wound healing status were observed and photographed under microscope at different time points.
Collagen Contraction Assay The collagen gel was thawed and added equally into 24-well plates. After 30min sterilization under ultraviolet light, the plates were placed in the incubator for 2d. They should be washed by saline solution twice and re-sterilized under ultraviolet for 30min before use.
Both the normal and model group cells were divided into active group and inactive group (control group). The inactive groups were deprived from serum for 60h. The active groups were cultured in the whole medium. After digested by trypsin-ethylenediaminetetraacetic acid (EDTA; 0.25% trypsin, 2% EDTA), cells of the normal group and the model group were centrifuged and suspended into 5×105 cells/mL. Then, the cell suspension was added by the collagen gel and mixed with the total volume of 250 μL. The cells-collagen mixture was plated into 24-well plates, followed by treatment with the optimal concentration of pirfenidone (0.2 and 0.3 mg/mL) for 7d. The groups treated with 0 mg/mL pirfenidone were performed as controls. The medium was changed every 3d using the medium containing relative concentration of pirfenidone. The status of gel contraction was observed, and the surface areas of the collagen were recorded every day. Data at day 3 and day 7 were shown.
Immunofluorescence Examination The cells of the normal the model groups were cultured on the cover glass and treated with 0, 0.2, and 0.3 mg/mL pirfenidone, respectively. Then, the glass were fixed in 4% PFA and stained by anti-transforming growth factor-β1 (anti-TGF-β1) antibody (Boster, USA, A04630), anti-transforming growth factor-β2 (anti-TGF-β2) antibody (Boster, USA, A00892) and anti-pigment epithelium-derived factor (PEDF) antibody (Abcam, ab233120). Anti-rabbit IgG antibody with fluorescent dye was used as secondary antibody. DAPI was used to stain the nucleus. Cells of different groups were observed and the fluorescent images were recorded by confocal microscopy (Leica TCS SP5, Leica Microsystems, Exton, PA, USA).
Quantitative Analysis of Cytokines and Growth Factors by Real-time Polymerase Chain Reaction The total mRNA was extracted using the TRIzol-chloroform method (TRIzol, Invitrogen, USA, 15596026). The cDNA was synthesized using the Revert Aid First Strand cDNA Synthesis Kit (Thermo Scientific Fermentas, USA, K1622). The primers for the human TGF-β1 (NM_000660.4), TGF-β2 (NM_000660.4), PEDF (NM_002615.5) and β-actin (NM_002615.5) gene were designed by Primer 5.0 software.
Primer
sequences are as followed: TGF-β1, forward:
The real-time PCR was performed using Maxima® SYBR Green/ROX qPCR Master Mix (2×) (Thermo Scientific Fermentas, USA, K0221). The absorbance was monitored by ABI Prism 7300.
Western
Blotting Briefly, the cells of the
pirfenidone treated groups and the control group were harvested and lysed in
1×SDS loading buffer, and boiled at
Statistical Analysis All experiments were conduct in triplicate. Quantitiy One (Bio-Rad) and Graphpad Prism 6.0 software were used to analyze the data. All data were shown as mean±standard deviation. One-way analysis of variance (ANOVA) test was used to compare the difference between the groups. P<0.05 stands for having a significant statistical difference.
RESULTS
Müller Cell
Culture and Identification As shown in Figure
Figure 1 The human Müller cells were identified according to the expression of α-SMA, GFAP and vimentin A: The morphology of the Müller cells were observed in white light visual field (10×); B: The expression of α-SMA, GFAP and vimentin in the Müller cells was detected by immunochemistry, and photographed in white light visual field (20×).
Pathogenic Müller Cell Model Establishment To further establish a pathogenic/proliferative model of Müller cells, we treated the normal Müller cells with 10 ng/mL PDGF-BB for 48h (model group). The Müller cells without treatment was set as control (normal group). In our observation, there is no evident difference in the cell morphology between the normal group and the model group, but the proliferation rate of the model group is significantly higher than the normal group (P<0.0001), similar to the pathogenic gliosis as reported in previous studies[4].
Inhibitory Effect of Pirfenidone on Pathogenic Müller Cell Model To determine whether pirfenidone has inhibitory effect on Müller cells, we treated the cells of the normal group and the model group with gradient concentrations of pirfenidone (0, 0.01, 0.2, 0.3 and 1 mg/mL) respectively for 6, 12, 24, 48 and 72h. The cell viability of different groups was examined by MTT assay. Our results showed that pirfenidone does not have obvious inhibitory effect on the normal groups, but significantly suppress the viability of the model group cells (Figure 2). The 0.2 and 0.3 mg/mL dosages of pirfenidone at 24h after treatment have shown prominent inhibitory effect on the model group with significant difference compared with 0 mg/mL dosage (P<0.0001; Figure 2), and this effect does not change obviously over time (24h compared with 48h and 72h after treatment; Figure 2). Thus, we determined the optimal condition of pirfenidone treatment for the next functional verification (0.2 and 0.3 mg/mL for 24h).
Figure 2 The pirfenidone shows stronger inhibitory effect on the model group than the normal group The cells of normal group and model group were respectively treated with 0, 0.01, 0.1, 0.2, 0.3, 0.5 and 1 mg/mL pirfenidone for 6, 12, 24, 48, and 72h. The cell viability was determined by MTT assay. aP<0.05 vs normal+0 mg/mL pirfenidone group, bP<0.01 vs normal+0 mg/mL pirfenidone group, cP<0.0001 vs normal+0 mg/mL pirfenidone group; dP<0.05 vs model+0 mg/mL pirfenidone group, eP<0.01 vs model+0 mg/mL pirfenidone group, fP<0.0001 vs model+0 mg/mL pirfenidone group; gP<0.05 vs model+0.2 mg/mL pirfenidone group, hP<0.01 vs model+0.2 mg/mL pirfenidone group, iP<0.0001 vs model+0.2 mg/mL pirfenidone group.
Toxicology
of Pirfenidone We further used the Trypan blue
assay to determine the cell death rates of the normal group and the model group
after treatment with 0, 0.2, and 0.3 mg/mL dosages of pirfenidone, respectively.
Consistent with the MTT assay, pirfenidone shows a more significant effect on
the cell death of the model group than the normal group (model group+0.2 mg/mL
pirfenidone vs model group+0 mg/mL pirfenidone, P<0.05; model
group+0.3 mg/mL pirfenidone vs model group+0 mg/mL pirfenidone, P<0.0001,
Figure

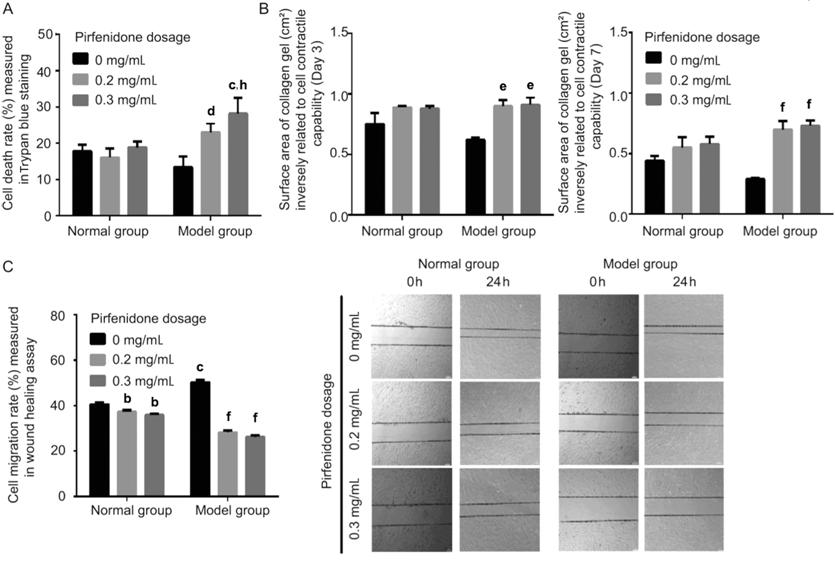

Figure 3 The pirfenidone shows stronger inhibitory effect on the potential of cell contraction and migration of the model group than the normal group The cells of the normal group and the model group were respectively treated with 0, 0.2, 0.3 mg/mL pirfenidone. A: The cell death rate was determined by Trypan blue method; B: The cell contraction potential, which is inverse to the surface area of the collagen gel, was determined by collagen gel-based cell contraction assay; C: The cell migration potential was determined by wound healing assay. aP<0.05 vs normal+0 mg/mL pirfenidone group, bP<0.01 vs normal+0 mg/mL pirfenidone group, cP<0.0001 vs normal+0 mg/mL pirfenidone group; dP<0.05 vs model+0 mg/mL pirfenidone group, eP<0.01 vs model+0 mg/mL pirfenidone group, fP<0.0001 vs model+0 mg/mL pirfenidone group; gP<0.05 vs model+0.2 mg/mL pirfenidone group, hP<0.01 vs model+0.2 mg/mL pirfenidone group, iP<0.0001 vs model+0.2 mg/mL pirfenidone group.
Effect of
Pirfenidone on Cell Collagen Contraction and Migration Pirfenidone shows a more significant
inhibition on the cell collagen contraction capability at both day 3 and day 7
(model group+0.2 mg/mL pirfenidone vs model group+0 mg/mL pirfenidone, P<0.01
at day 3 and P<0.0001 at day 7; model group+0.3 mg/mL pirfenidone vs model group+0 mg/mL pirfenidone, P<0.01 at day 3 and P<0.0001
at day 7, Figure 3B). In comparison, the treatment of pirfenidone shows no
significant difference with the non-treatment samples in the collagen
contraction capability of the normal group (Figure 3B). In addition, we
further examined the effect of pirfenidone on the cell migration of the normal
group and the model group by would healing assay. It shows that pirfenidone has
a more prominent inhibitory effect on the cell migration potential of the model
group compared with the normal group (Figure
Effect of
Pirfenidone on TGF-β1/ β2 and PEDF Expression in Pathogenic Müller Cell
Model It has been previously reported that
TGF-β can induce the fibrosis and migration of the Müller cells[7], while PEDF has neuroprotective function and
angioinhibitory effect on retina[8]. To further
determine whether the inhibitory effect of pirfenidone acts through regulation
of these important signaling factors, we firstly analyzed the mRNA levels of
TGF-β1, TGF-β2 and PEDF by real-time PCR. It shows that in the model groups the
mRNA levels of TGF-β1 and TGF-β2 are significantly down-regulated in the
samples treated with pirfenidone compared with those without any treatment (P<0.0001),
while in the normal group the difference is not significant (Figure

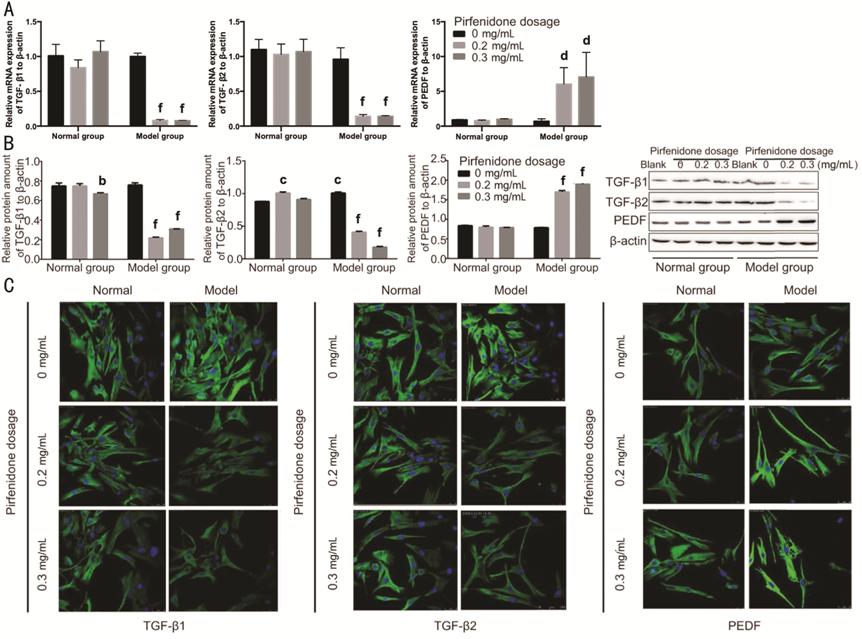

Figure 4 The expression levels of TGF-β1, TGF-β2 and PEDF are obviously regulated after treatment by pirfenidone in the model group A: The cells of the normal group and the model group were respectively treated by 0, 0.2 and 0.3 mg/mL pirfenidone. The relative mRNA levels of TGF-β1, TGF-β2 and PEDF were determined by real-time PCR. Results are shown as indicated. The expression levels of TGF-β1, TGF-β2 and PEDF under the indicated treatment of pirfenidone were detected by Western blotting (B) and immunofluorescence (C). Green fluorescence, for the indicated proteins; blue fluorescence for the nucleus. aP<0.05 vs normal+0 mg/mL pirfenidone group, bP<0.01 vs normal+0 mg/mL pirfenidone group, cP<0.0001 vs normal+0 mg/mL pirfenidone group; dP<0.05 vs model+0 mg/mL pirfenidone group, eP<0.01 vs model+0 mg/mL pirfenidone group, fP<0.0001 vs model+0 mg/mL pirfenidone group; gP<0.05 vs model+0.2 mg/mL pirfenidone group, hP<0.01 vs model+0.2 mg/mL pirfenidone group, iP<0.0001 vs model+0.2 mg/mL pirfenidone group.
We further
determined the protein level change of these factors by Western blotting and
immunofluorescence (Figure 4B,
DISCUSSION
PVR is a leading cause of vision loss following retinal detachment, retinal reattachment surgery, and ocular trauma. The pathogenesis of PVR is currently understood as migration and proliferation of retinal pigment epithelium and Müller cells along with synthesis of extracellular matrix proteins[9, 10]. Since PVR is a complex disease involving cell proliferation, growth, spreading, and contractility, no effective pharmacological treatment has been found to date[11].
Pirfenidone, as an anti-fibrotic agent, has been found the prevention effect of PVR in a post-traumatic PVR animal model[12]. However, the molecular mechanism of pirfenidone in suppressing PVR formation is not clear. And the effect of pirfenidone on human Müller cells was still unknown. In this study, we used the Müller cells stimulated with PDGF-BB, a pathogenic gliosis model, to answer this question for the first time. We treated the Müller cells of normal group and model group with pirfenidone respectively, and revealed that pirfenidone can significantly suppress the proliferation, migration and collagen contraction potential of the model group Müller cells.
In previous reports, PDGF has been found as a mitogen and potent inducer of growth and motility in several cell types, including fibroblasts, endothelial cells and smooth muscle cells[13]. The PDGF plays a critical role in the development of proliferative retinopathies[14, 15, 16]. It can promote the proliferation and chemotaxis of the Müller cells[4], which is similar to the gliosis pathological condition. Considering this, we used PDGF-BB to stimulate the normal Müller cells to establish the pathological model. In our experiments, we stimulated the Müller cells with PDGF-BB for 48h and removed it for the following treatment of pirfenidone. Despite the lack of the exogenous PDGF-BB, the endogenous PDGF produced by Müller cells themselves may maintain the stimuli effect according to the previous report[2], but the self-feedback loop still needs further verification. In the previous studies, pirfenidone can inhibit the proliferation, migration and collagen contraction of the human Tenon’s fibroblasts, and also inhibit the migration, differentiation, and proliferation of the human retinal pigment epithelial cells[5, 6]. The inhibitory effects are similar to the observation of the model group Müller cells in our study.
Furtherly, we explored the mechanism of this effect on the model group cells. According to the previous reports, TGF-β can induce the fibrosis and migration of the Müller cells[7, 17]. Also, the TGF-β1 derived from the Müller cells themselves contributes to the inhibitory effect on the proliferation of retinal endothelial cells, which is one of the morphologies of PVR[18]. In addition, TGF-β1 can up-regulate the expression of α-SMA stress fibers in retinal Müller cells and fibroblasts that has a cell-specific effect on intracellular collagen expression[19]. All of these above suggest that TGF-β has an important role in the pathogenesis of PVR. On the other hand, PEDF has neuroprotective function and angioinhibitory effect on retina[8, 20]. Evidences indicated that sustained PEDF expression not only can help to protect the retinal pigment epithelium cells by creating an anti-angiogenic environment under hypothermia[21], but also can improve the mitochondrial function in retinal pigment epithelium cells during oxidative stress[22, 23, 24, 25]. Thus, the down-regulation of TGF-β1/TGF-β2 and the down-regulation of PEDF may contribute to the inhibitory effect of pirfenidone on the model group cells. Previous study demonstrated that PDGF induced the proliferation of rat Müller cell through activating JNK and PI3K/Akt signaling pathways[4]. It suggested that other signaling factors could also participate in the effect of pirfenidone on the model group Müller cells. Further investigation into the signaling pathway of pirfenidone is still needed in the future.
In conclusion, we found that pirfenidone can effectively suppress the proliferation, migration and collagen contraction of the human Müller cells stimulated with PDGF-BB through down-regulation of TGF-β1/TGF-β2 and upregulation of PEDF. Pirfenidone would be a potential candidate drug to target the pathogenic Müller cells in the proliferative retinopathies.
